Zone Offroad Products · ZONT4
Description

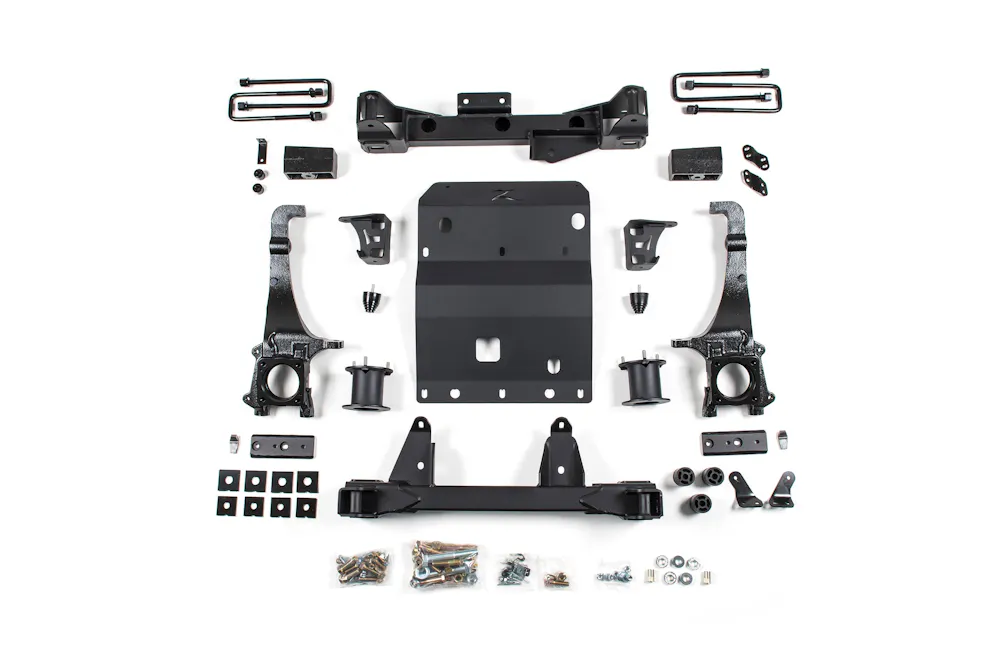

Raise it up with this 4 Lift Kit made for serious off road adventure. Featuring a combination of strut spacers, iron knuckle for the front and cast blocks for the rear. This kit clears your 4WD 2005 - 2015 Toyota Tacoma for tires up to 33 inches with some trimming.
Features & benefits
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Full width belly skid plate offers improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Bump stop, sway bar and brake line relocation brackets to correct operating angles
Information
Fitment: System will also work on RWD PreRunner models.
Fitment: Will NOT work on TRD Pro Models.
Mod's Required: Requires modification. See installation instructions for more information.
Wheels / Tires: 33x12.50 tires require trimming. See installation instructions for more information.
Wheels / Tires: Factory wheels cannot be reinstalled with this lift kit, 18" or larger aftermarket wheels required. Follow recommended wheel/tire specifications to ensure proper fitment and minimize the need for trimming.
Application summary
| Year | Make / model |
|---|---|
| 2005-2015 | Toyota Tacoma |
Component: Zone Offroad Products ZONT2309
Component: Zone Offroad Products ZONT2401
Component: Zone Offroad Products ZONT2600
Component: Zone Offroad Products ZONT2602
Specifications
- GTIN
- 00810156367892
- Weight
- 183.25 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONT4
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- No
- Adjustable
- No
- Alternate Part Number
- ZONT4
- Back Spacing
- 4.5"
- Back Spacing 2
- 4.5"
- Back Spacing 3
- 4.5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 4"
- Front Lift Method
- Knuckle & Strut Spacer
- Installation Difficulty
- 4 out of 5
- Installation Time
- 7 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 33 x 12.5
- Max Tire Size 2
- 33 x 12.5
- Max Tire Size 3
- 33 x 12.5
- Rear Lift Height
- 3"
- Rear Lift Method
- Cast Blocks
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 18 x 9
- Wheel Size 2
- 20 x 9
- Wheel Size 3
- 22 x 9
Fitment status
This product is universal and will fit your application.
Application summary
2005-2015 Toyota Tacoma
