Zone Offroad Products · ZONT1
Description

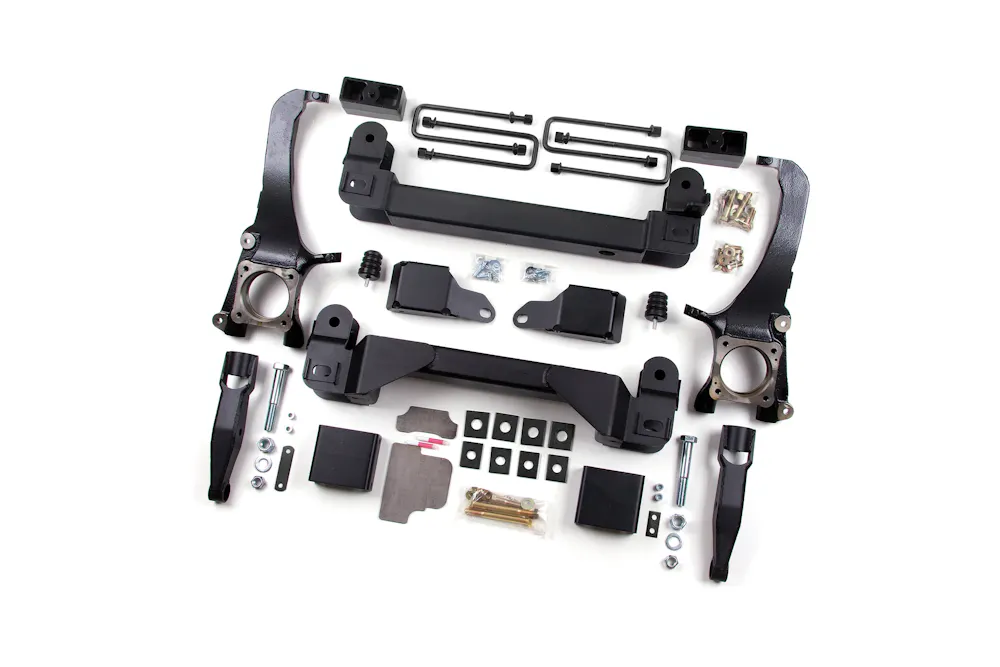

The Tundra has some serious power, take advantage of it with this 5 Lift Kit that makes your truck an off road machine. Iron knuckles and heavy-duty, boxed crossmembers integrate with differential mounts to lock everything together. Fits 2007 - 2015 Toyota Tundra.
Features & benefits
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
- Lower strut extensions to provide lift and install easily
- Weld-in chassis plates add strength and rigidity
- Rear lift blocks and u-bolts to lift and level the stance
- Sway bar, brake line, and bump stop relocation brackets to correct operating angles
Information
Fitment: Will NOT work on 2015 TRD Pro Models.
Fitment: Will work with Bilstein (yellow) factory front struts on 2014-2015 models.
Driveline: RWD models may require driveline modification.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Wheels / Tires: Factory 18" wheels cannot be reinstalled with this kit due to steering interference. Factory 20" wheels with a maximum 6.25" backspacing can be used. Follow recommended wheel/tire specifications to ensure proper fitment and minimize the need for trimming.
Application summary
| Year | Make / model |
|---|---|
| 2007-2015 | Toyota Tundra |
Component: Zone Offroad Products ZONT2500
Component: Zone Offroad Products ZONT2501
Component: Zone Offroad Products ZONT2502
Component: Zone Offroad Products ZONT2503
Specifications
- GTIN
- 00810156367816
- Weight
- 203.15 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONT1
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- No
- Adjustable
- No
- Alternate Part Number
- ZONT1
- Back Spacing
- 5.5"
- Back Spacing 2
- 6.25"
- Back Spacing 3
- 6.25"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 5"
- Front Lift Method
- Knuckle & Drop Cross-Member
- Installation Difficulty
- 3 out of 5
- Installation Time
- 8 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 35 x 12.5
- Max Tire Size 2
- 35 x 12.5
- Max Tire Size 3
- 35 x 12.5
- Rear Lift Height
- 3"
- Rear Lift Method
- Cast Blocks
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 18 x 9
- Wheel Size 2
- 20 x 9
- Wheel Size 3
- 22 x 9
Fitment status
This product is universal and will fit your application.
Application summary
2007-2015 Toyota Tundra
