Zone Offroad Products / ZONF62

Zone Offroad Products ZONF62

Part #: ZONF62
UPC: 810156366253

Loading availability... Loading...
Notify me when this item is in stock.

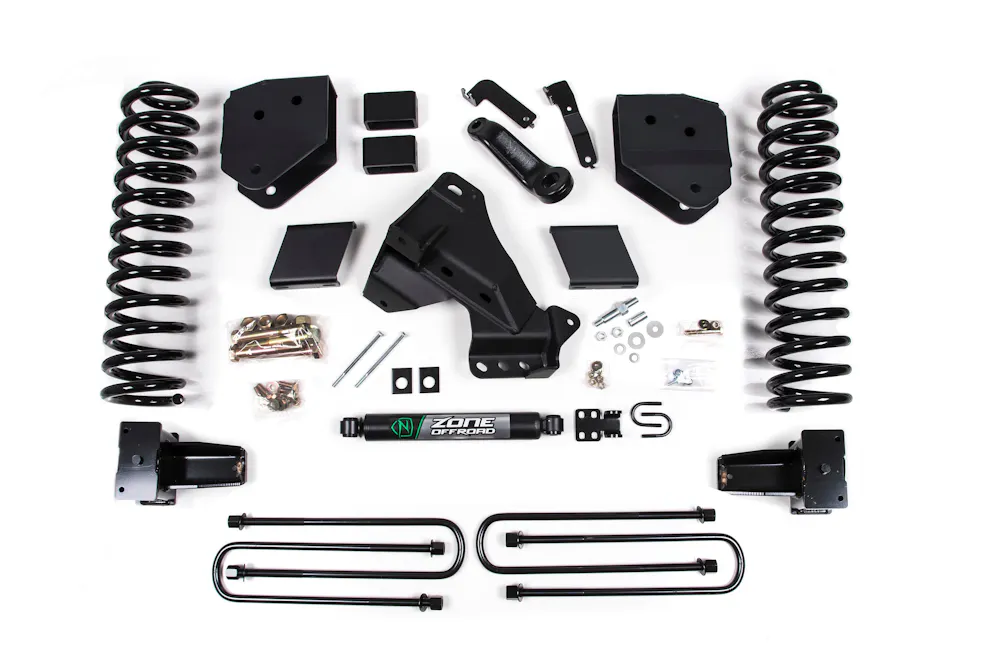

Description: Zone 6 Standard Lift Kit; 2020-2022 F250/F350 6 Radius Arm Drop Suspension Lift System - DSL

Description:

This is a virtual part number representing a kit with the following components: ZON7302, ZONF1605, ZONF1608, ZONF1613

Description

Step up your game with these 6 standard lift kits from Zone Offroad. These kits use full length coil springs, high strength radius arm relocation brackets, steering and sway bar correction along with rear lift to level the stance and optional shocks. Kits include a 5year/60,000mile drivetrain warranty.

Features & benefits

  • Corrects suspension geometry with high strength radius arm drop brackets
  • Forged pitman arm to correct steering angles
  • Heavy duty fabricated track bar relocation bracket to re-center front axle
  • Full length Diesel/ Gas specific coil springs for a smooth ride

Information

DIESEL MODELS ONLY 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.

Application summary

Year Make / model
2020-2022 Ford F-250 Super Duty
2020-2022 Ford F-350 Super Duty
Component: Zone Offroad Products ZON7302
Zone Offroad Products ZON7302

Brand: Zone Offroad Products

Part Number: ZON7302

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF1605

Brand: Zone Offroad Products

Part Number: ZONF1605

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF1608

Brand: Zone Offroad Products

Part Number: ZONF1608

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF1613

Brand: Zone Offroad Products

Part Number: ZONF1613

Quantity in Kit: 2

Loading availability... Loading...

Specifications

GTIN
00810156366253
Weight
184.75 lb
Height
24 in
Length
48 in
Width
40 in
EO
Legal US
Life cycle
Discontinued
Alt. part number
ZONF62
AAM brand code
ZOR
Warehouse brand code
ZOR
AAIA brand code
FQMS

Attributes

Adjustable
No
Alternate Part Number
ZONF62
Back Spacing
4.5"
Back Spacing 2
4.5"
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Finish
Powdercoat
Front Lift Height
6"
Front Lift Method
Coil Springs
Installation Difficulty
3 out of 5
Installation Time
4-6 hrs
Lift Type
Suspension
Material
Steel
Max Tire Size
37 x 12.5
Max Tire Size 2
37 x 12.5
Rear Lift Height
5"
Rear Lift Method
Block Kit
Required Tools
Wrenches: Standard
Requires Metal Cutting
No
Requires Welding
No
Wheel Size
20 x 9
Wheel Size 2
20 x 10

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2020-2022 Ford F-250 Super Duty; 2020-2022 Ford F-350 Super Duty
