Zone Offroad Products / ZONF53N
Description

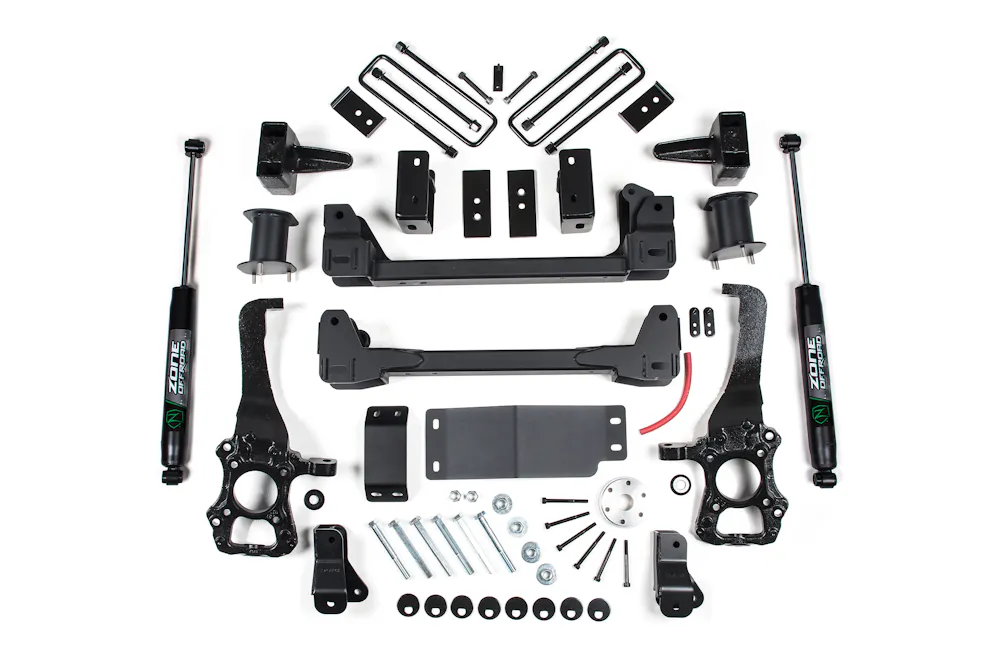

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Features & benefits
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Sway bar, brake line and bump stop relocation brackets to correct operating angles
Application summary
| Year | Make / model |
|---|---|
| 2015-2020 | Ford F-150 |
Component: Zone Offroad Products ZON7763
Component: Zone Offroad Products ZONF2604
Component: Zone Offroad Products ZONF2639
Component: Zone Offroad Products ZONF2640
Component: Zone Offroad Products ZONF2641
Component: Zone Offroad Products ZONF2650
Component: Zone Offroad Products ZONF2651
Specifications
- GTIN
- 00810156366024
- Weight
- 254.25 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Available to Order
- Alt. part number
- ZONF53N
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZONF53N
- Back Spacing
- 5.5"
- Back Spacing 2
- 5.5"
- Back Spacing 3
- 5.5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Front Lift Height
- 6"
- Front Lift Method
- Knuckle & Strut Spacer
- Installation Difficulty
- 4 out of 5
- Installation Time
- 9 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 37 x 12.5
- Max Tire Size 2
- 37 x 12.5
- Max Tire Size 3
- 37 x 12.5
- Rear Lift Height
- 5"
- Rear Lift Method
- Cast Blocks
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 18 x 9
- Wheel Size 2
- 20 x 9
- Wheel Size 3
- 22 x 9
- Wholesale Only
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2015-2020 Ford F-150
Zone Offroad Products ZONF53N
