Zone Offroad Products · ZONF53

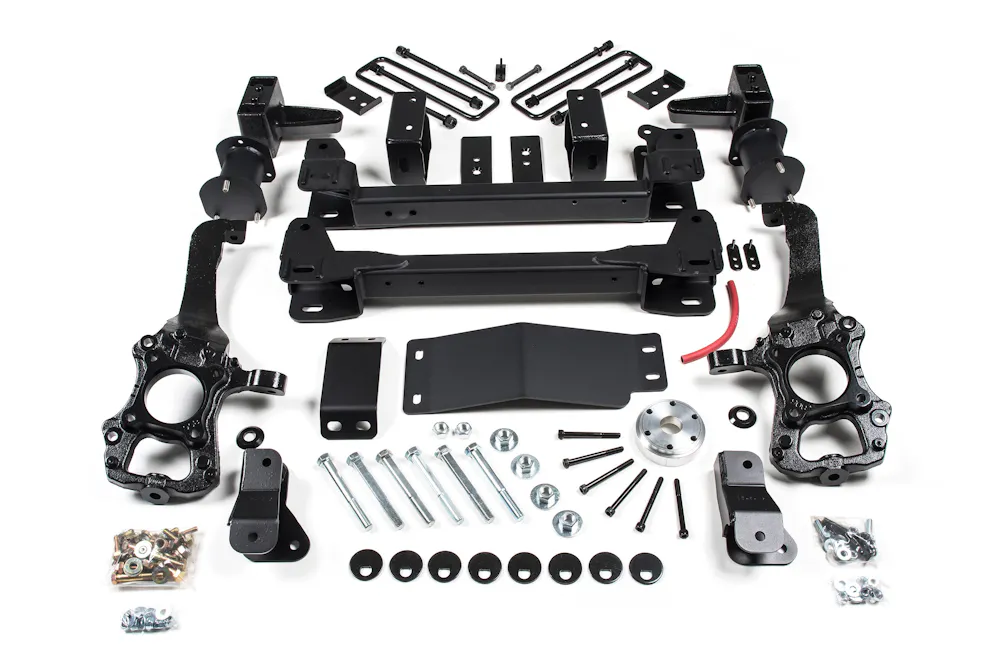

Zone Offroad Products ZONF53

Part #: ZONF53
UPC: 810156366017

Loading availability... Loading...
Notify me when this item is in stock.

Description: Zone 6 Suspension Lift Kit; 2015-19 F150 6 Suspension Lift System

Description:

This is a virtual part number representing a kit with the following components: ZONF2604, ZONF2639, ZONF2640, ZONF2641, ZONF2650, ZONF2651

Description

Take your F150 to new heights with this 6 lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37 tires.

Features & benefits

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Sway bar, brake line and bump stop relocation brackets to correct operating angles

Information

18" or larger diameter wheels required. Stock 17"/18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire. 18" wheels with 5-5.5" of backspacing should be test fit prior to mounting tires to ensure proper tie rod end clearance. 37x12.50 tires may require some trimming. Kit includes a 5" rear block kit (#F2639) that typically nets a slight tail high stance. A 4" rear block kit (#F2419) is available in the options if a more level stance is preferred. Models equipped with Auto 4wd may require front driveshaft replacement. Requires frame bracket modification. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. Will NOT work on Diesel Models.

Application summary

Year Make / model
2015-2020 Ford F-150
Component: Zone Offroad Products ZONF2604

Brand: Zone Offroad Products

Part Number: ZONF2604

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF2639

Brand: Zone Offroad Products

Part Number: ZONF2639

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF2640

Brand: Zone Offroad Products

Part Number: ZONF2640

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF2641

Brand: Zone Offroad Products

Part Number: ZONF2641

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF2650

Brand: Zone Offroad Products

Part Number: ZONF2650

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF2651

Brand: Zone Offroad Products

Part Number: ZONF2651

Quantity in Kit: 1

Loading availability... Loading...

Specifications

GTIN
00810156366017
Weight
240.65 lb
Height
24 in
Length
48 in
Width
40 in
EO
Legal US
Life cycle
Discontinued
Alt. part number
ZONF53
AAM brand code
ZOR
Warehouse brand code
ZOR
AAIA brand code
FQMS

Attributes

Accommodates Factory Wheels
See Notes
Adjustable
No
Alternate Part Number
ZONF53
Back Spacing
5.5"
Back Spacing 2
5.5"
Back Spacing 3
5.5"
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Front Lift Height
6"
Front Lift Method
Knuckle & Strut Spacer
Installation Difficulty
4 out of 5
Installation Time
9 hrs
Lift Type
Lift Kit
Max Tire Size
37 x 12.5
Max Tire Size 2
37 x 12.5
Max Tire Size 3
37 x 12.5
Rear Lift Height
5"
Rear Lift Method
Cast Blocks
Requires Metal Cutting
No
Requires Welding
No
Wheel Size
18 x 9
Wheel Size 2
20 x 9
Wheel Size 3
22 x 9

Fitment status

This product is universal and will fit your application.

Application summary

2015-2020 Ford F-150
