Zone Offroad Products / ZONF51
Description

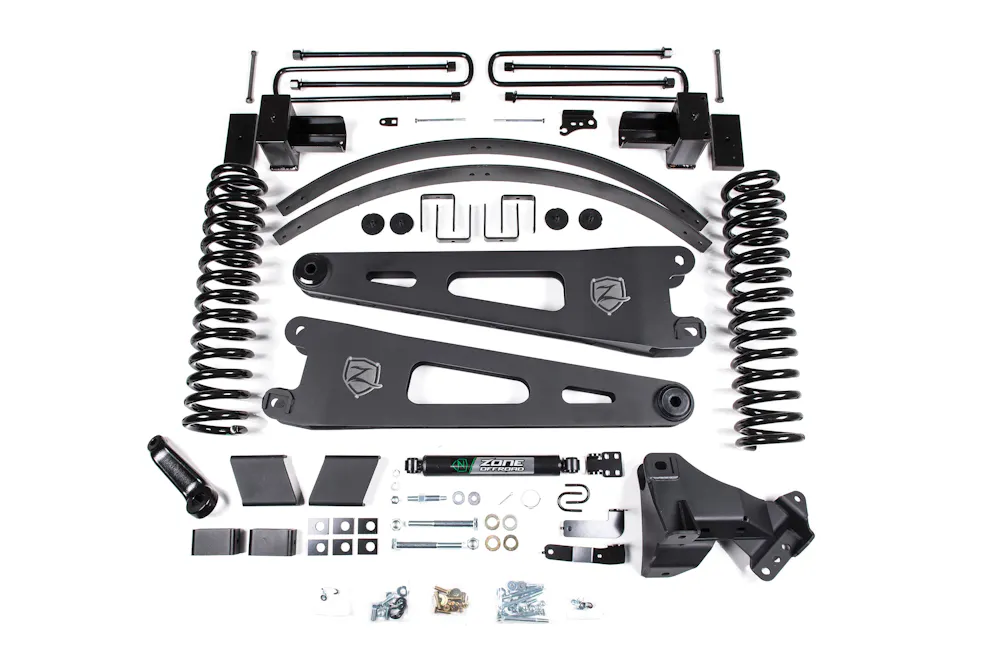

Take your Super Duty to new heights with this 6 lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for 38 tires.
Features & benefits
- High strength front coil springs improve ride quality
- HD radius arm to correct caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
- Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
- Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance
Information
38x13.50 tires may require minor trimming.
Diesel Model Only.
Factory wheels fit when paired with factory / original equipment tire size.
Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring; see "Learn More" image for help.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Application summary
| Year | Make / model |
|---|---|
| 2017-2019 | Ford F-250 Super Duty |
| 2017-2019 | Ford F-350 Super Duty |
Component: Zone Offroad Products ZON7302
Component: Zone Offroad Products ZONF1601
Component: Zone Offroad Products ZONF1609
Component: Zone Offroad Products ZONF1613
Component: Zone Offroad Products ZONF1614
Component: Zone Offroad Products ZONF6208
Specifications
- GTIN
- 00810156365959
- Weight
- 282.15 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONF51
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Adjustable
- No
- Alternate Part Number
- ZONF51
- Back Spacing
- 5"
- Back Spacing 2
- 5"
- Back Spacing 3
- 5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Front Lift Height
- 6"
- Front Lift Method
- Coil Springs & Replacement Radius Arms
- Installation Difficulty
- 3 out of 5
- Installation Time
- 7 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 38 x 13.5
- Max Tire Size 2
- 38 x 13.5
- Max Tire Size 3
- 38 x 13.5
- Rear Lift Height
- 5"
- Rear Lift Method
- Add-A-Leaf & Cast Block
- Requires Metal Cutting
- No
- Requires Welding
- No
- Type
- Single Stabilizer
- Wheel Size
- 17 x 10
- Wheel Size 2
- 18 x 10
- Wheel Size 3
- 20 x 10
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2017-2019 Ford F-250 Super Duty; 2017-2019 Ford F-350 Super Duty
