Zone Offroad Products / ZONF41
Description

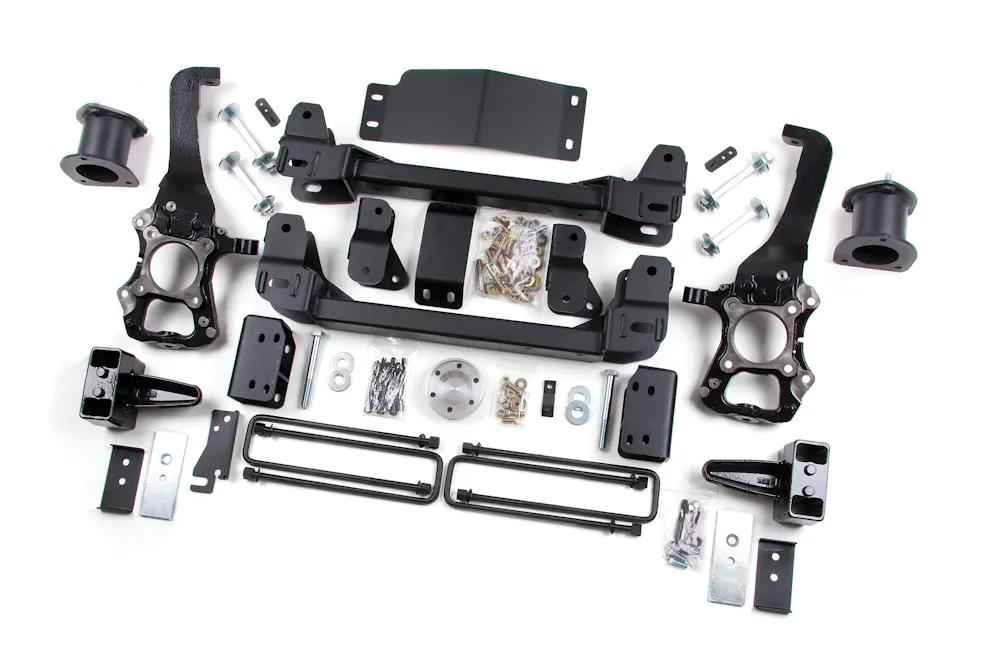

Take your F150 to new heights with this 4 lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35 tires.
Features & benefits
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Sway bar, brake line and bump stop relocation brackets to correct operating angles
Information
AWD models will require front driveshaft modification.
If using 18x9 wheels with 5.5" backspace, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Vehicles equipped with factory power steps will require E-Brake Relocation Bracket F5608.
Will not work with 17" wheels.
Application summary
| Year | Make / model |
|---|---|
| 2014 | Ford F-150 |
Component: Zone Offroad Products ZONF2419
Component: Zone Offroad Products ZONF2432
Component: Zone Offroad Products ZONF2615
Component: Zone Offroad Products ZONF2616
Component: Zone Offroad Products ZONF2633
Specifications
- GTIN
- 00810156365744
- Weight
- 215.8 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONF41
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZONF41
- Back Spacing
- 5"
- Back Spacing 2
- 5.5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 4"
- Front Lift Method
- Knuckle & Strut Spacer
- Installation Difficulty
- 3 out of 5
- Installation Time
- 7 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 35 x 12.5
- Max Tire Size 2
- 35 x 12.5
- Rear Lift Height
- 4"
- Rear Lift Method
- Cast Blocks
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 18 x 9
- Wheel Size 2
- 20 x 9
Fitment status
This product is universal and will fit your application.
Application summary
2014 Ford F-150
Zone Offroad Products ZONF41
