Zone Offroad Products / ZONF34
Description

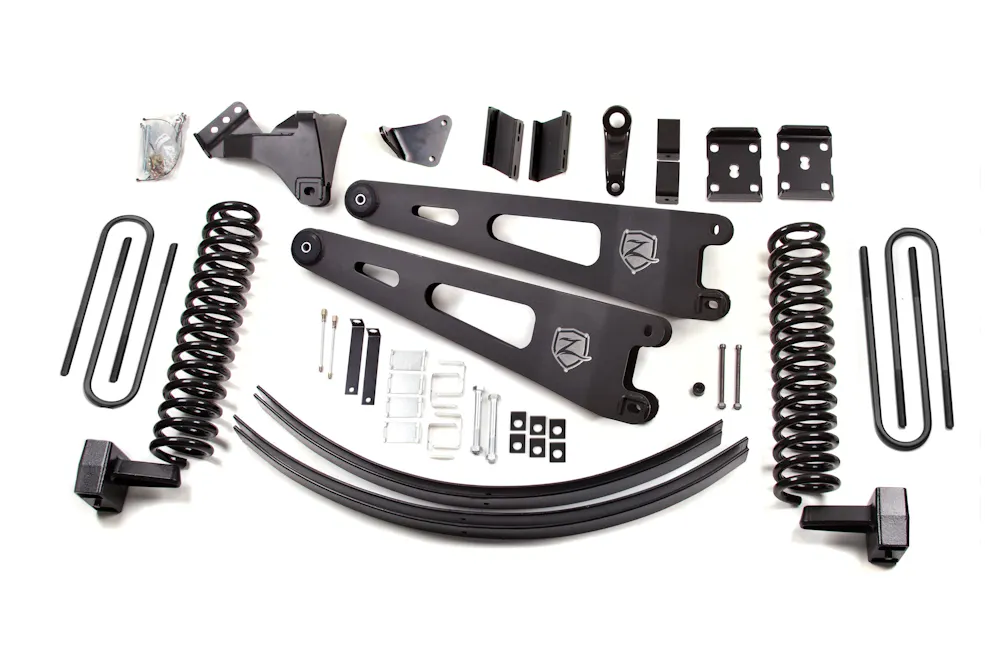

When you go big you can go anywhere. This 6 Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 37 tires. Get the look and performance you want out of your Diesel 4WD 2008 - 2010 Ford F-250 / F-350.
Features & benefits
- Brake line relocation brackets allow re-use of factory brake lines
- Bump stop extensions properly limit up-travel, protecting your vehicle
- Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity
- Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits
- High-strength, 1/4 steel radius arms correct caster, improve tire clearance, and maximize ground clearance
- Rear lift block and longer U-bolts for easy installation and level stance
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics
- Sway bar relocation brackets maintain operating angle for reduced body roll
Information
Driveline: Although extremely rare, front and/or rear driveline vibration may occur and require driveline modification.
Factory wheels fit when paired with factory / original equipment tire size.
Fitment: This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
Lift Block Selection: This lift will require replacing your truck’s factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
Mod's Required: Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Component: Zone Offroad Products ZONF1309
Component: Zone Offroad Products ZONF1601
Component: Zone Offroad Products ZONF1603
Component: Zone Offroad Products ZONF1613
Component: Zone Offroad Products ZONF6209
Specifications
- GTIN
- 00810156365591
- Weight
- 315.6 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONF34
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZONF34
- Back Spacing
- 4.5"
- Back Spacing 2
- 4.5"
- Back Spacing 3
- 4.5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 6"
- Front Lift Method
- Radius Arm Drop
- Installation Difficulty
- 3 out of 5
- Installation Time
- 6 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 37 x 12.5
- Max Tire Size 2
- 37 x 12.5
- Max Tire Size 3
- 37 x 12.5
- Rear Lift Height
- 4"
- Rear Lift Method
- Dual Add-A-Leafs & Block Kit
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 17 x 9
- Wheel Size 2
- 18 x 9
- Wheel Size 3
- 20 x 9
Fitment status
This product is universal and will fit your application.
