Zone Offroad Products / ZONF24

Zone Offroad Products ZONF24

Part #: ZONF24
UPC: 810156365362

Loading availability... Loading...
Notify me when this item is in stock.

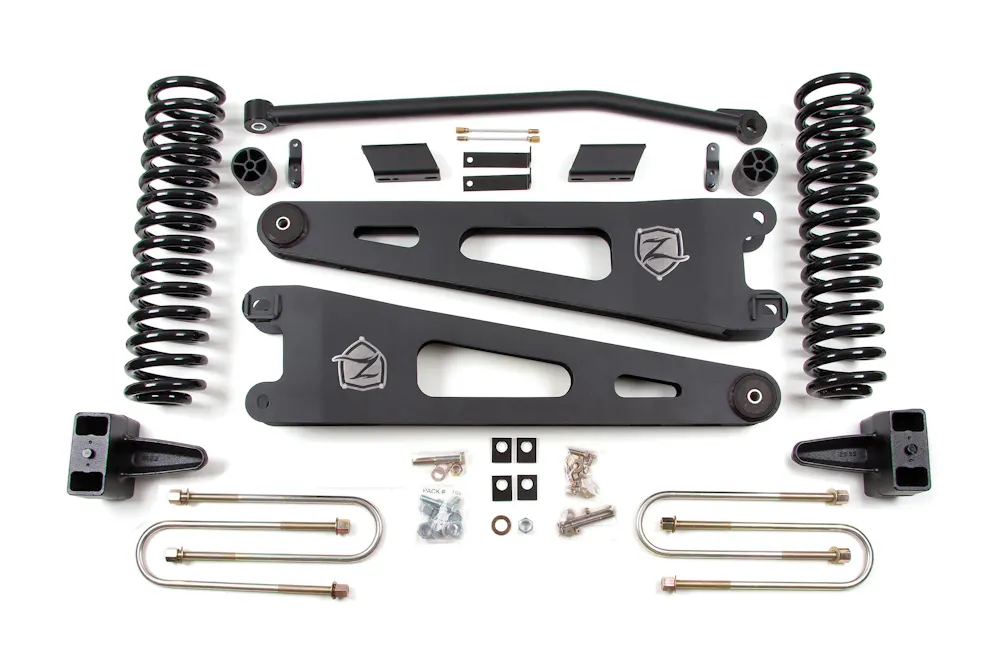

Description: Zone 4 Radius Arm Lift Kit

Description:

This is a virtual part number representing a kit with the following components: ZONF1309, ZONF1422, ZONF1423, ZONF1601

Description

With ample additional ground clearance and room for up to 33 tires, you'll be well-equipped for a trip down 'the road less traveled' with this 4 Radius Arm Lift Kit, with rear block lift kit for your 4WD 2008 - 2010 Ford F-250 / F-350.

Features & benefits

  • Full length replacement coil springs add additional ride height while maintaining ride quality
  • Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement
  • High-strength, 1/4 steel construction corrects caster, improves tire clearance, and maximizes ground clearance
  • High-strength, black e-coated U-bolts
  • Rear lift block and longer U-bolts for easy installation and level stance

Information

Check Your Rear Springs: If your vehicle is equipped with both a stock 4" rear block and a top mounted overload/helper spring, select the longer 18.5" Rear U-Bolts. Fitment: This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution. Lift Block Selection: This lift will require replacing your truck’s factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block. Mod's Required: Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

Application summary

Year Make / model
2008-2010 Ford F-250 Super Duty
2008-2010 Ford F-350 Super Duty
Component: Zone Offroad Products ZONF1309

Brand: Zone Offroad Products

Part Number: ZONF1309

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF1422

Brand: Zone Offroad Products

Part Number: ZONF1422

Quantity in Kit: 1

Loading availability... Loading...
Component: Zone Offroad Products ZONF1423

Brand: Zone Offroad Products

Part Number: ZONF1423

Quantity in Kit: 2

Loading availability... Loading...
Component: Zone Offroad Products ZONF1601

Brand: Zone Offroad Products

Part Number: ZONF1601

Quantity in Kit: 2

Loading availability... Loading...

Specifications

GTIN
00810156365362
Weight
249.4 lb
Height
24 in
Length
48 in
Width
40 in
EO
Legal US
Life cycle
Discontinued
Alt. part number
ZONF24
AAM brand code
ZOR
Warehouse brand code
ZOR
AAIA brand code
FQMS

Attributes

Accommodates Factory Wheels
See Notes
Adjustable
No
Alternate Part Number
ZONF24
Back Spacing
4.5"
Back Spacing 2
4.5"
Back Spacing 3
4.5"
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Finish
Powdercoat
Front Lift Height
4"
Front Lift Method
Radius Arm Drop
Installation Difficulty
2 out of 5
Installation Time
6 hrs
Lift Type
Lift Kit
Max Tire Size
35 x 12.5
Max Tire Size 2
35 x 12.5
Max Tire Size 3
35 x 12.5
Rear Lift Height
5"
Rear Lift Method
Cast Blocks
Requires Metal Cutting
No
Requires Welding
No
Wheel Size
17 x 9
Wheel Size 2
18 x 9
Wheel Size 3
20 x 9

Fitment status

This product is universal and will fit your application.

Application summary

2008-2010 Ford F-250 Super Duty; 2008-2010 Ford F-350 Super Duty
