Zone Offroad Products · ZONF1204
Part #: ZONF1204
UPC: 711745594425
Log in for inventory
Notify me when this item is in stock.

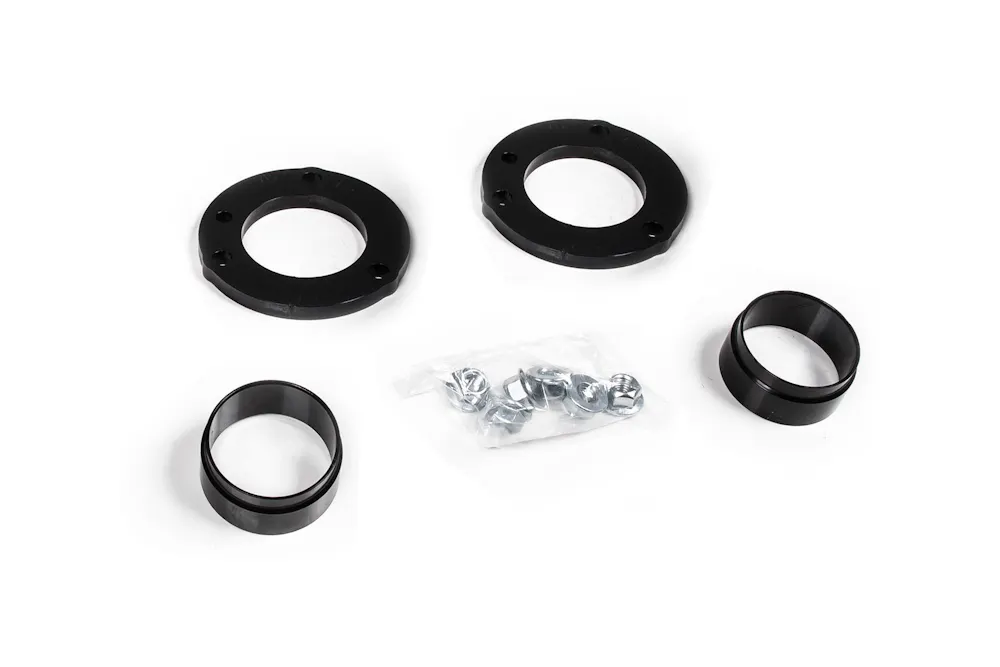

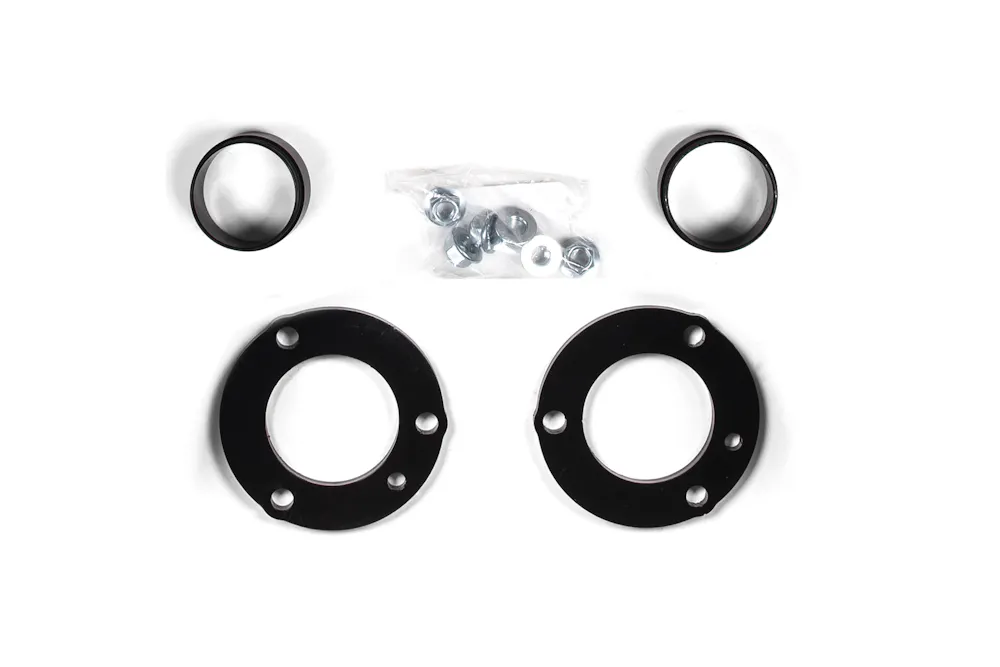

Description: Zone 2" Leveling Kit
Description:
Description
Most leveling kits use a tall, top-mounted strut spacer that provides lift but overextends the suspension or driveline angles at ‘full droop’, maxing out ball joints and leading to premature wear/failure of the components. To get around this issue, this kit uses a 2-piece spacer design comprised of a smaller, top-mounted steel strut spacer in combination with a preload spacer. The result is a leveling kit done right that maintains the factory ride quality and functionality with room for larger 285/70r17 tires.
Features & benefits
- 2-piece design to lift and level stance
- Maintains OE ride question and handling
- Keeps ball joint/CV operating angles within spec
- Allows fitment of 285/70r17 tires
- Includes Factory Protection Plus
Information
Strut disassembly required to install preload spacers; Will not work with Tremor models.
Application summary
| Year | Make / model |
|---|---|
| 2019-2021 | Ford Ranger |
Specifications
- GTIN
- 00711745594425
- Weight
- 3.5 lb
- Height
- 2 in
- Length
- 11.5 in
- Width
- 7 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- Yes
- Adjustable
- No
- Back Spacing
- 6.67
- Back Spacing 2
- 6.67
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 2"
- Front Lift Method
- Strut Spacers & Preload
- Installation Difficulty
- 2 out of 5
- Installation Time
- 1-2 hrs
- Lift Type
- Leveling Kit
- Material
- Metal
- Max Tire Size
- 285/70R17
- Max Tire Size 2
- 285/65R18
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 17x8 (Stock)
- Wheel Size 2
- 18 x 8 (Stock)
- Wholesale Only
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2019-2021 Ford Ranger
Zone Offroad Products ZONF1204
