Description
Combo kits offer the best bang for the buck by combining a front leveling kit with a small body lift to offer clearance for larger tires while maintaining factory ride quality and handling characteristics. This 4 combo kit for the Dodge Ram 1500 combines a 2.5 adventure series upper control arm leveling kit with a 1.5 body lift and bumper brackets to allow clearance for 35 tires.
Features & benefits
- 2.5 leveling kit to eliminate the factory nose low rake
- Adventure series upper control arms (UCAs) to allow full suspension droop without maxing out the upper ball joints (a common issue on other leveling kits)
- Complete 1.5 body lift kit to provide additional clearance
Information
Frame horn modification necessary for installation of new front bumper brackets.
Minor frame bracket trimming necessary for differential clearance.
Not to be used with any other form of leveling/lifting suspension systems.
Bumper hitch? Rear bumper brackets are for appearance only and not rated for towing. Frame mounted tow hitches are recommended for towing purposes.
Application summary
| Year | Make / model |
|---|---|
| 2009-2010 | Dodge Ram 1500 |
| 2011 | Ram 1500 |
Component: Zone Offroad Products ZOND2300
Component: Zone Offroad Products ZOND2301
Component: Zone Offroad Products ZOND9150
Specifications
- GTIN
- 00810156363832
- Weight
- 55.45 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZOND60
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- Yes
- Adjustable
- No
- Alternate Part Number
- ZOND60
- Back Spacing
- 4.75-5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 2.5"
- Front Lift Method
- Coil Spring Spacers
- Installation Difficulty
- 3 out of 5
- Installation Time
- 6 hrs
- Lift Type
- Combo Lift Kit
- Material
- Steel
- Max Tire Size
- 35 x 12.5
- Rear Lift Height
- -
- Required Tools
- Strut Compressor
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 20 x 9
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2009-2010 Dodge Ram 1500; 2011 Ram 1500
Resources

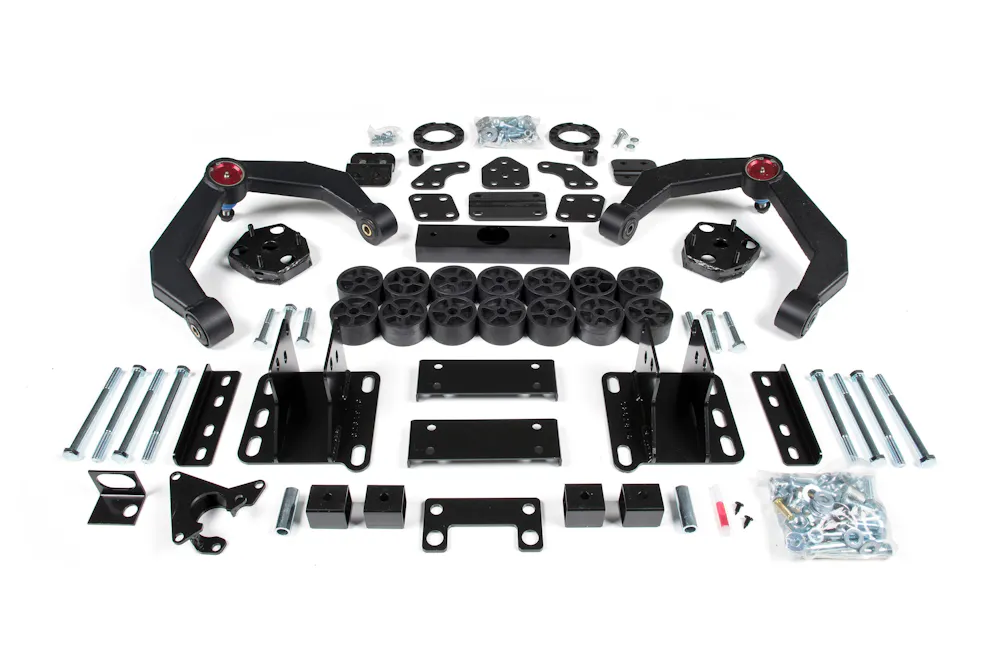

Zone Offroad Products ZOND60
