Zone Offroad Products · ZOND58F
Part #: ZOND58F
UPC: 810156363788
Loading...
Notify me when this item is in stock.

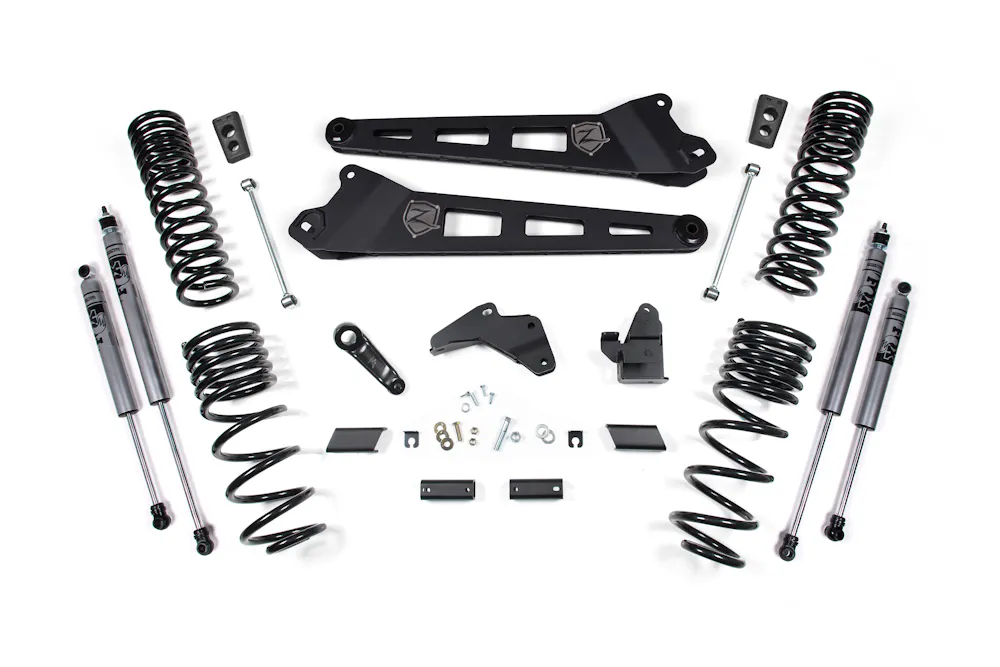

Description: Zone 6.5" Radius Arm Lift Kit
Description:
This is a virtual part number representing a kit with the following components: FOX98450742, FOX98450756, ZOND1410, ZOND1459, ZOND1602, ZOND3409, ZOND3602
Description
Take your RAM 2500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Features & benefits
- Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and levelign the stance
- HD radius arm to correct caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
- Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
- Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry
Application summary
| Year | Make / model |
|---|---|
| 2014-2018 | Ram 2500 |
Component: Zone Offroad Products FOX98450742
Component: Zone Offroad Products FOX98450756
Component: Zone Offroad Products ZOND1410
Component: Zone Offroad Products ZOND1459
Component: Zone Offroad Products ZOND1602
Component: Zone Offroad Products ZOND3409
Component: Zone Offroad Products ZOND3602
Specifications
- GTIN
- 00810156363788
- Weight
- 299.4 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Available to Order
- Alt. part number
- ZOND58F
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZOND58F
- Back Spacing
- 4.5"
- Back Spacing 2
- 5.75"
- Back Spacing 3
- 5.75"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 6.5"
- Front Lift Method
- Radius Arm Drop
- Installation Difficulty
- 3 out of 5
- Installation Time
- 6 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 37 x 12.5
- Max Tire Size 2
- 37 x 12.5
- Max Tire Size 3
- 37 x 12.5
- Rear Lift Height
- 4.5"
- Rear Lift Method
- Coil Springs
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 17 x 9
- Wheel Size 2
- 18 x 9
- Wheel Size 3
- 20 x 9
- Wholesale Only
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2014-2018 Ram 2500
