Zone Offroad Products / ZOND55
Description

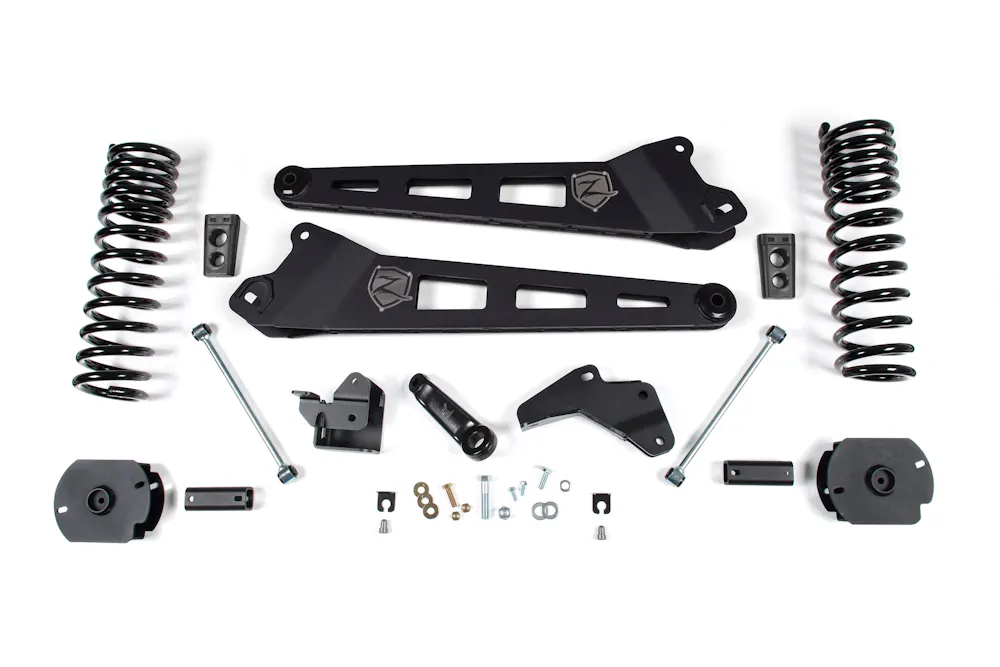

Take your RAM 2500 to new heights with this 4.5 lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37 tires.
Features & benefits
- Progressive rate front coil springs improve ride quality and offroad performance
- HD radius arm to correct caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
- Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
- Rear coil spacers, bump stop extensions, track bar bracket and sway bar links to level the stance and correct suspension geometry
Information
Factory wheels fit when paired with factory / original equipment tire size. Does not work with Factory Rear Air-Ride equipped trucks
Application summary
| Year | Make / model |
|---|---|
| 2014-2018 | Ram 2500 |
Component: Zone Offroad Products ZOND1258
Component: Zone Offroad Products ZOND1259
Component: Zone Offroad Products ZOND1402
Component: Zone Offroad Products ZOND1410
Component: Zone Offroad Products ZOND3401
Component: Zone Offroad Products ZOND3402
Specifications
- GTIN
- 00810156363726
- Weight
- 196.25 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZOND55
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZOND55
- Back Spacing
- 4.5"
- Back Spacing 2
- 5.75"
- Back Spacing 3
- 5.75"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 4.5"
- Front Lift Method
- Radius Arm Drop
- Installation Difficulty
- 3 out of 5
- Installation Time
- 6 hrs
- Lift Type
- Lift Kit
- Material
- Steel
- Max Tire Size
- 35 x 12.5
- Max Tire Size 2
- 37 x 12.5
- Max Tire Size 3
- 37 x 12.5
- Rear Lift Height
- 2.5"
- Rear Lift Method
- Coil Springs
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 17 x 9
- Wheel Size 2
- 18 x 9
- Wheel Size 3
- 20 x 9
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2014-2018 Ram 2500
