Zone Offroad Products · ZOND48
Part #: ZOND48
UPC: 810156363580
Loading...
Notify me when this item is in stock.
Description: Zone 2.5" Adventure Series Leveling Kit
Description:
Description

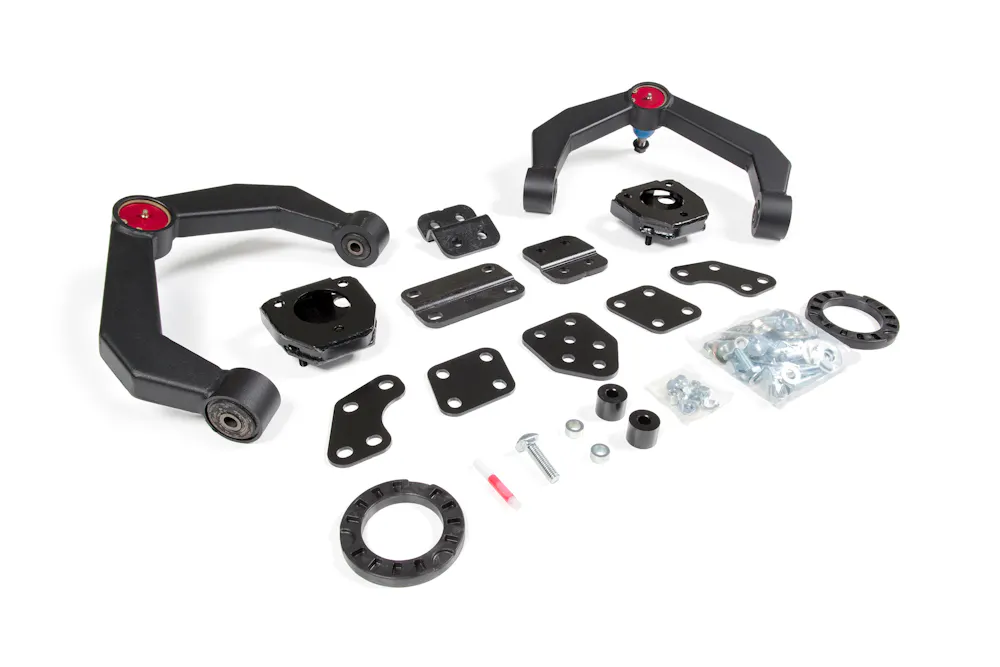

Level out your RAM 1500 the right way with Zone Offroad. In addition to these steel fabricated top mounted strut spacers and preload spacers designed for 2.5" of lift, these kits address the limitations of the factory upper ball joint (maxed out with a leveling kit installed which will lead to premature wear) by upgrading to adventure series upper control arms (UCAs). These fully boxed and welded UCAs offer superior strength and performance and use an indexed ball joint cup designed for more droop travel. Also included are differential relocation brackets to correct CV operating angles.
Features & benefits
- Combination upper strut spacer and preload spacer to ensure proper lift height
- CNC-machined UCA bushing and ball joint cups
- OE rubber bushings and greaseable factory style ball joints for quiet, reliable, and low maintenance operation
- Improved UCA range of motion compared to stock arms
- Full 2" differential drop included to achieve proper CV angles at ride height and to eliminate "lobing" of the CVs at full droop
- UCA ball joint position adjusted to keep arm in a neutral position with 2-3" of lift
- UCAs utilize replaceable ball joints - replacements are readily available from most auto parts stores when needed many miles down the road
- Can be installed as a 2" or 2.5" kit
- Avoids ball joint binding issue commonly known to occur on these models with spacer only type kits that use the factory UCAs
- Detailed, easy to follow installation instructions included
- Limited Lifetime Warranty
- Upper strut spacer is pitched, offset, and rotated to ensure proper fitment and positioning with the factory strut
- Powder-coated steel upper strut spacers for long lasting durability
- Fully welded, heavy-duty upper control arms that dwarf the factory arms
Information
The kit allows the clearance for 33-35" tires to be installed.
UCA's Required: Do NOT install spacer kit without upper control arms, the factory upper ball joint will be extended past operating range. Vehicle damage may occur.
Application summary
| Year | Make / model |
|---|---|
| 2006-2010 | Dodge Ram 1500 |
| 2011 | Ram 1500 |
Component: Zone Offroad Products ZOND2300
Component: Zone Offroad Products ZOND2301
Specifications
- GTIN
- 00810156363580
- Weight
- 39.45 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Available to Order
- Alt. part number
- ZOND48
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Adjustable
- No
- Alternate Part Number
- ZOND48
- Back Spacing
- 4.75"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Front Lift Height
- 2.5"
- Front Lift Method
- Upper Control Arms
- Installation Difficulty
- 3 out of 5
- Installation Time
- 4-5 hrs
- Lift Type
- Leveling Kit
- Max Tire Size
- 35 x 12.5
- Rear Lift Height
- -
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 17 x 9
- Wholesale Only
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2006-2010 Dodge Ram 1500; 2011 Ram 1500
