Zone Offroad Products · ZONC72
Description

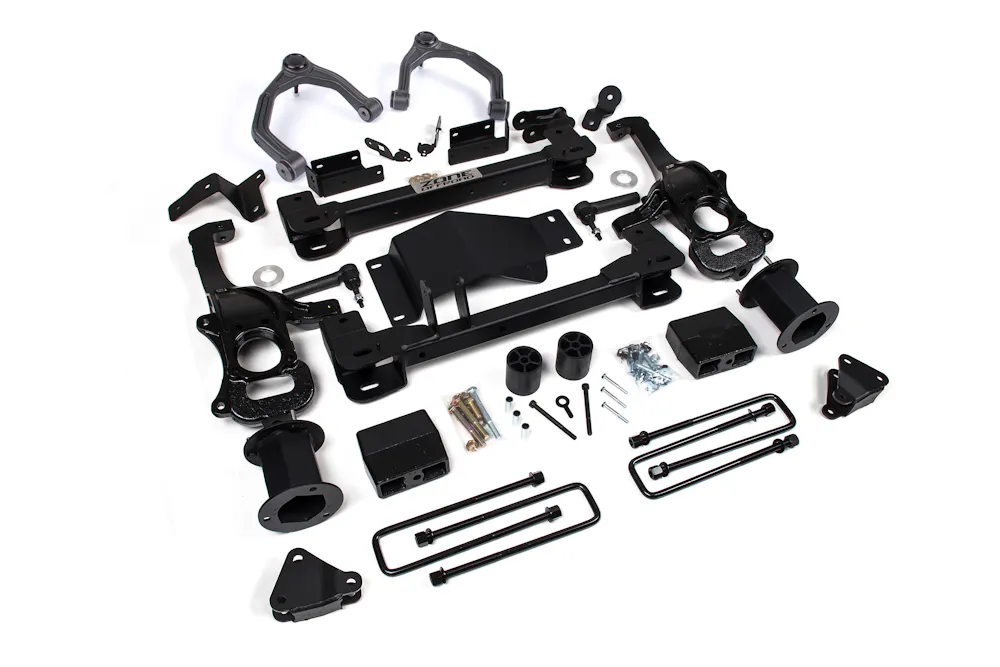

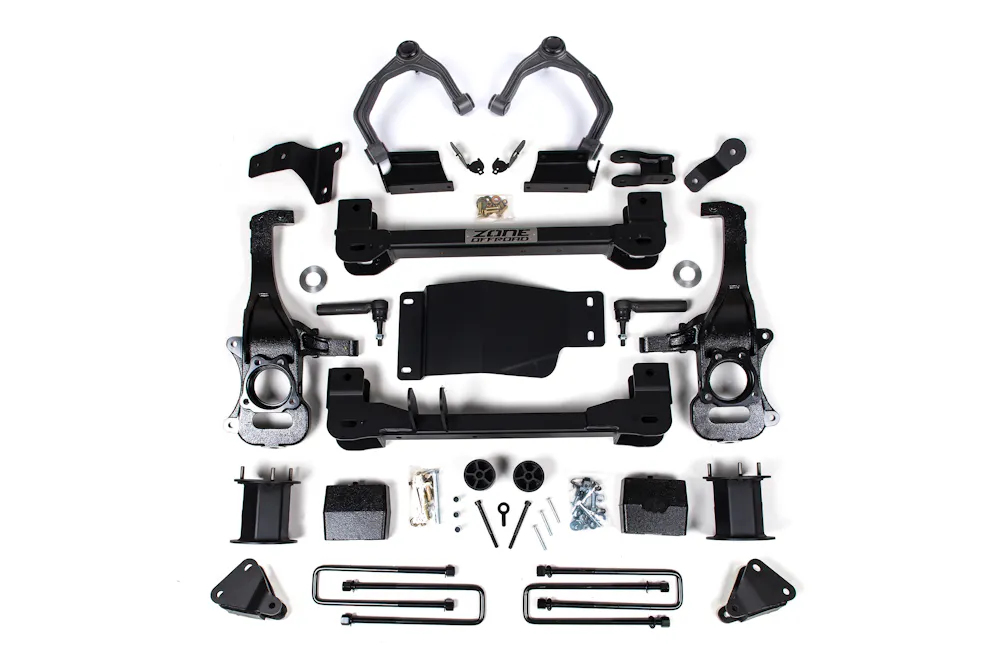

Take your GMC Denali 1500 to new heights with this 6" lift kit from Zone Offroad. These kits are designed to allow full functionality oft he ARC (adaptive ride control) system factory installed on the Denali to retain all the features of your truck at the new lift height. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and ARC sensors, adventure series upper control arms, differential relocation brackets and more. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
Features & benefits
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles and new tie rod ends to correct steering geometry and maintain ESC system compatibility
- Strut spacers and shock relocation brackets to maintain ARC functionality
- Kits include adventure series upper control arms and differential skid plate for additional offroad protection
- Adventure Series upper control arms included for additional strength and durability
- Rear lift blocks and u-bolts to lift and level the stance, sway bar correction, brake line and bump stop relocation brackets to correct operating angles
Information
17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled. Requires frame bracket modification. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition. Fits Gas and Diesel Models.
Application summary
| Year | Make / model |
|---|---|
| 2019-2021 | GMC Sierra 1500 |
Component: Zone Offroad Products ZONC2662
Component: Zone Offroad Products ZONC2664
Component: Zone Offroad Products ZONC2670
Component: Zone Offroad Products ZONC2671
Component: Zone Offroad Products ZONC2672
Component: Zone Offroad Products ZONC2673
Specifications
- GTIN
- 00810156361463
- Weight
- 245.9 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Available to Order
- Alt. part number
- ZONC72
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZONC72
- Back Spacing
- 5.5-6.25"
- Back Spacing 2
- 4.5-6.25
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 6"
- Front Lift Method
- Strut Spacer & Cross-Member
- Installation Difficulty
- 4 out of 5
- Installation Time
- 7-9 hrs
- Lift Type
- Lift Kit
- Material
- Steel
- Max Tire Size
- 37 x 12.5
- Max Tire Size 2
- 35 x 12.5
- Rear Lift Height
- 4"
- Rear Lift Method
- Lift Block
- Required Tools
- Cut-off Tool; Welding Equipment
- Requires Metal Cutting
- Yes
- Requires Welding
- Yes
- Wheel Size
- 20 x 9
- Wheel Size 2
- 20 x 9
- Wholesale Only
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2019-2021 GMC Sierra 1500
Zone Offroad Products ZONC72
