Zone Offroad Products · ZONC61
Part #: ZONC61
UPC: 810156361227
Loading...
Notify me when this item is in stock.

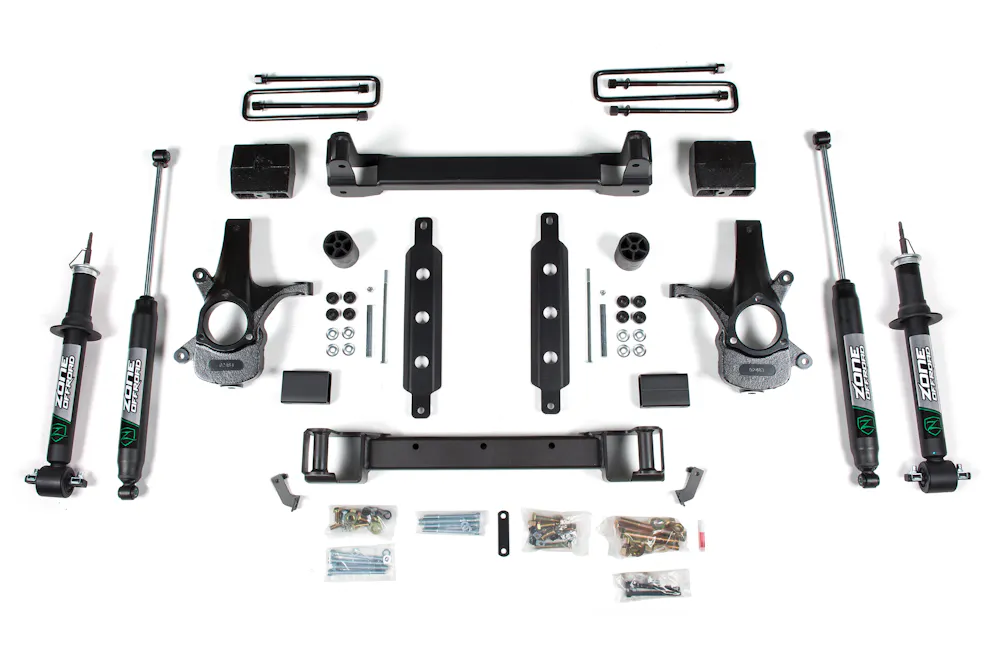

Description: Zone 6.5 Lift Kit; 14-18 Chevy/GMC 1500 Silverado/Sierra 2WD 6.5 Strut - Cast Steel Arms
Description:
This is a virtual part number representing a kit with the following components: ZONC2650, ZONC2653, ZONC2654
Description
Take your Silverado/Sierra 1500 to new heights with this 6.5 lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers, skid plates and steering knuckles to Nitro series gas struts for improved performance with a lifted and leveled out stance. Get the look, performance, and capability your truck deserves with clearance for up to 35 tires.
Information
Check Control Arms: GM produced cast steel, stamped steel and
aluminum control arms between 2014 and 2018. Use the reference image to
help identify your stock control arms; cast steel will be replaced with
cast steel, stamped steel and aluminum control arms will be replaced
with aluminum.
Is your truck a crew cab? Add an Add-A-Leaf to your kit to offset the increased weight of the cab for a more level stance.
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
Fitment: All wheel drive models may require front CV driveshaft. See installation instructions for more information.
Fitment: Will NOT fit models equipped with MagneRide magnetic ride control.
Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
Wheels / Tires: For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.75" backspacing.
Component: Zone Offroad Products ZONC2650
Component: Zone Offroad Products ZONC2653
Component: Zone Offroad Products ZONC2654
Specifications
- GTIN
- 00810156361227
- Weight
- 182.1 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONC61
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZONC61
- Back Spacing
- 5-5.75"
- Back Spacing 2
- 5"-5.25"
- Back Spacing 3
- 5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 6.5"
- Front Lift Method
- Replacement Strut
- Installation Difficulty
- 4 out of 5
- Installation Time
- 8 hrs
- Lift Type
- Lift Kit
- Material
- Steel
- Max Tire Size
- 35 x 12.5
- Max Tire Size 2
- 35 x 12.5
- Max Tire Size 3
- 35 x 12.5
- Rear Lift Height
- 5"
- Rear Lift Method
- Cast Blocks
- Required Tools
- Welding Equipment; Wrenches: Standard
- Requires Metal Cutting
- Yes
- Requires Welding
- Yes
- Wheel Size
- 20 x 9
- Wheel Size 2
- 18 x 9
- Wheel Size 3
- 17 x 9
Fitment status
This product is universal and will fit your application.
