Zone Offroad Products · ZONC47F
Part #: ZONC47F
UPC: 810156360879
Log in for inventory
Notify me when this item is in stock.
Description: Zone 3.5" Adventure Series Lift Kit
Description:

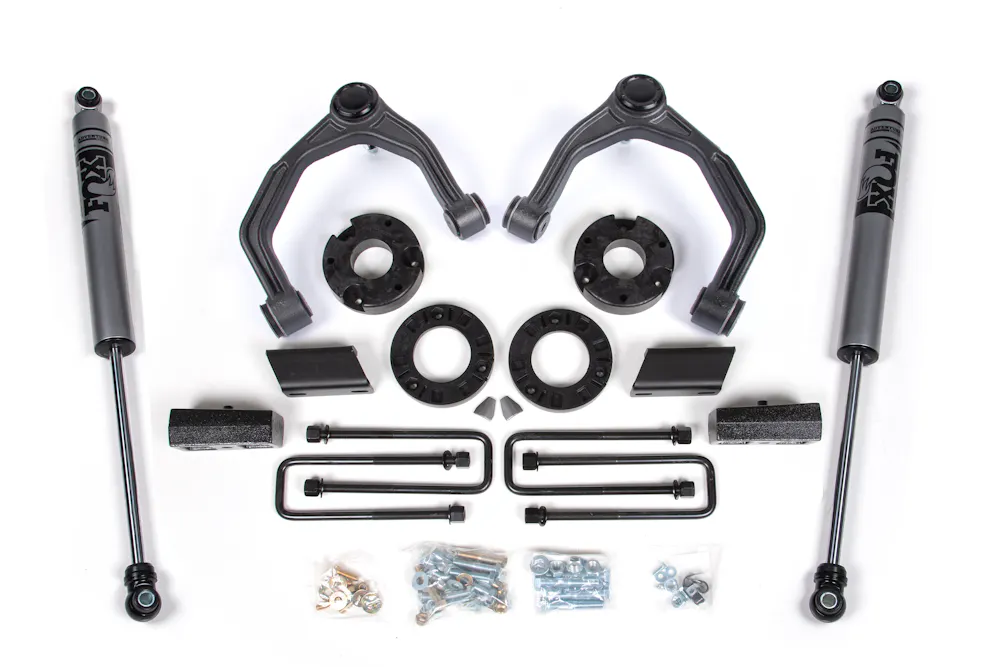

This is a virtual part number representing a kit with the following components: FOX98450719, ZONC2352, ZONC2353
Description
More than a leveling kit, this 3.5" Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35" tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5" of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional weld-in steering stops are supplied allowing clearance for up to 35" tires. In the rear of this kit, a cast 2" lift block lifts and levels.
Features & benefits
- High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel
- Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle
- Retain factory ride quality without over extending suspension/drivelines at full suspension droop
- Maintains ride and handling characteristics with clearance for larger tires
- 2" rear lift blocks and heavy duty u-bolts to level the stance
- Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance
- Optional Steering Stops included for larger wheel/tire combinations
Information
All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper._x000D_
Do not exceed wheel backspacing of 5.5" as it will cause clearance issues with UCA._x000D_
Minor cutting of the factory droop limiter required to allow for the increased travel of replacement Upper Control Arms._x000D_
Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition._x000D_
Will NOT fit models with a single leaf spring (monoleaf) rear suspension._x000D_
2022 Models: This system has not been tested on models equipped with Super Cruise.
Application summary
| Year | Make / model |
|---|---|
| 2019-2023 | Chevrolet Silverado 1500 |
| 2019-2023 | GMC Sierra 1500 |
Component: Zone Offroad Products FOX98450719
Component: Zone Offroad Products ZONC2352
Component: Zone Offroad Products ZONC2353
Specifications
- GTIN
- 00810156360879
- Weight
- 67.4 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Available to Order
- Alt. part number
- ZONC47F
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- No
- Adjustable
- No
- Alternate Part Number
- ZONC47F
- Back Spacing
- 5.5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 3.5"
- Front Lift Method
- Strut Spacers
- Installation Difficulty
- 3 out of 5
- Installation Time
- 3-4 hrs
- Lift Type
- Lift Kit
- Material
- Steel
- Max Tire Size
- 35x12.50 (Chevy)
- Max Tire Size 2
- 33x12.50 (GMC)
- Rear Lift Method
- Cast Blocks
- Required Tools
- Cut-off Tool; Strut Compressor
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 20 x 9
- Wholesale Only
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2019-2023 Chevrolet Silverado 1500; 2019-2023 GMC Sierra 1500
