Zone Offroad Products · ZONC40
Description

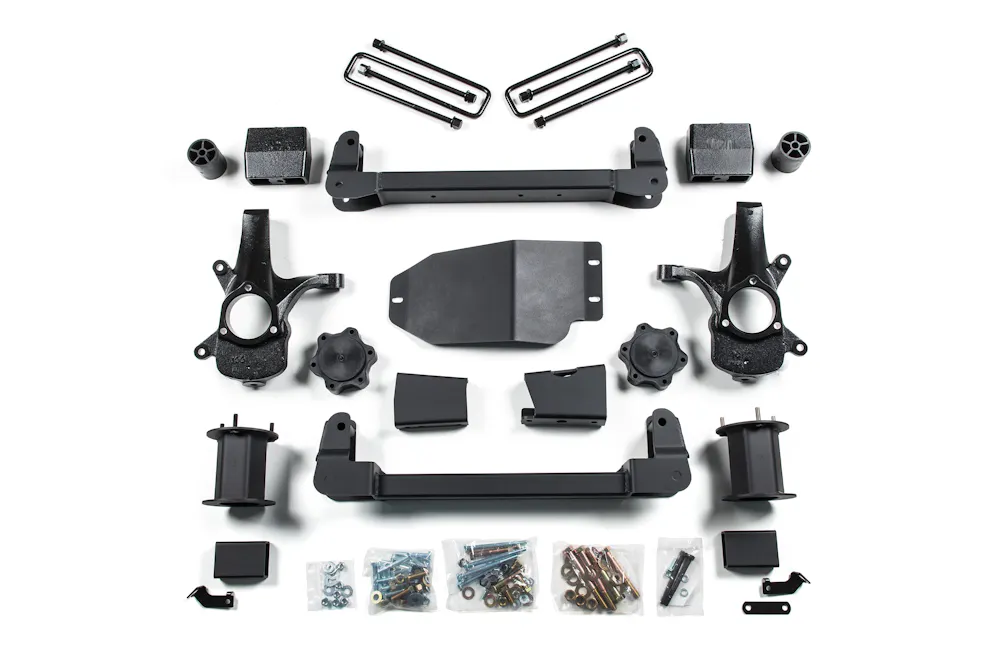

Take your Silverado/Sierra 1500 to new heights with this 6.5 lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 35 tires.
Features & benefits
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for additional offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Sway bar, brake line and bump stop relocation brackets to correct operating angles
Information
Requires 1/4" wheel spacer to accommodate stock 20" rims.
Component: Zone Offroad Products ZONC2643
Component: Zone Offroad Products ZONC2644
Component: Zone Offroad Products ZONC2645
Specifications
- GTIN
- 00810156360817
- Weight
- 176.45 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONC40
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZONC40
- Back Spacing
- 5"
- Back Spacing 2
- 5.25"
- Back Spacing 3
- 5.75"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 6.5"
- Front Lift Method
- Strut Spacer & Cross-Member
- Installation Difficulty
- 4 out of 5
- Installation Time
- 8 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 35 x 12.5
- Max Tire Size 2
- 35 x 12.5
- Max Tire Size 3
- 35 x 12.5
- Rear Lift Height
- 5"
- Rear Lift Method
- Cast Blocks
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 17 x 9
- Wheel Size 2
- 18 x 9
- Wheel Size 3
- 20 x 9
Fitment status
This product is universal and will fit your application.
