Zone Offroad Products · ZONC35
Part #: ZONC35
UPC: 810156360633
Loading...
Notify me when this item is in stock.

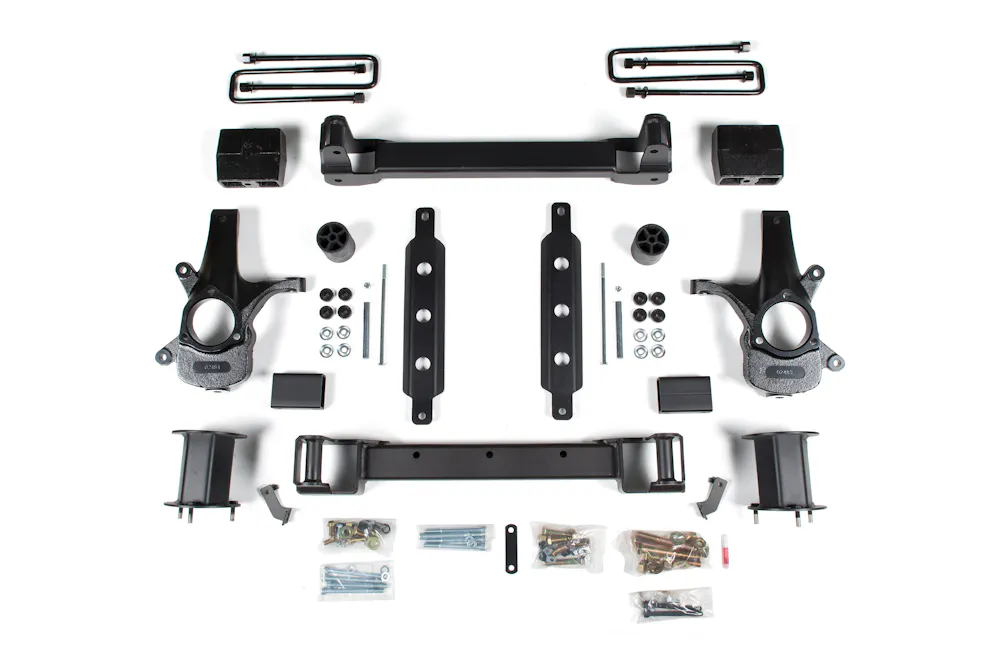

Description: Zone 4.5 Suspension Lift Kit
Description:
Description
Take your Silverado/Sierra 1500 to new heights with this 4.5 lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35 tires.
Information
Check Control Arms: GM produced cast steel, stamped steel and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
Maximum Rear Shock length is 29-3/4" due to driveshaft to cross member interference.
Requires 1/4" wheel spacer to accommodate stock 20" rims.
To reduce trimming required for tire fitment, a 20" wheel w/5.75" backspacing is recommended.
Application summary
| Year | Make / model |
|---|---|
| 2014-2018 | Chevrolet Silverado 1500 |
| 2014-2018 | GMC Sierra 1500 |
Component: Zone Offroad Products ZONC2453
Component: Zone Offroad Products ZONC2650
Specifications
- GTIN
- 00810156360633
- Weight
- 152.8 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONC35
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZONC35
- Back Spacing
- 5"
- Back Spacing 2
- 5.25"
- Back Spacing 3
- 5.75"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 4.5"
- Front Lift Method
- Strut Spacer & Cross-Member
- Installation Difficulty
- 4 out of 5
- Installation Time
- 8 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 33 x 12.5
- Max Tire Size 2
- 33 x 12.5
- Max Tire Size 3
- 33 x 12.5
- Rear Lift Height
- 4"
- Rear Lift Method
- Cast Blocks
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 17 x 9
- Wheel Size 2
- 18 x 9
- Wheel Size 3
- 20 x 9
Fitment status
This product is universal and will fit your application.
Application summary
2014-2018 Chevrolet Silverado 1500; 2014-2018 GMC Sierra 1500
