Zone Offroad Products · ZONC27
Description

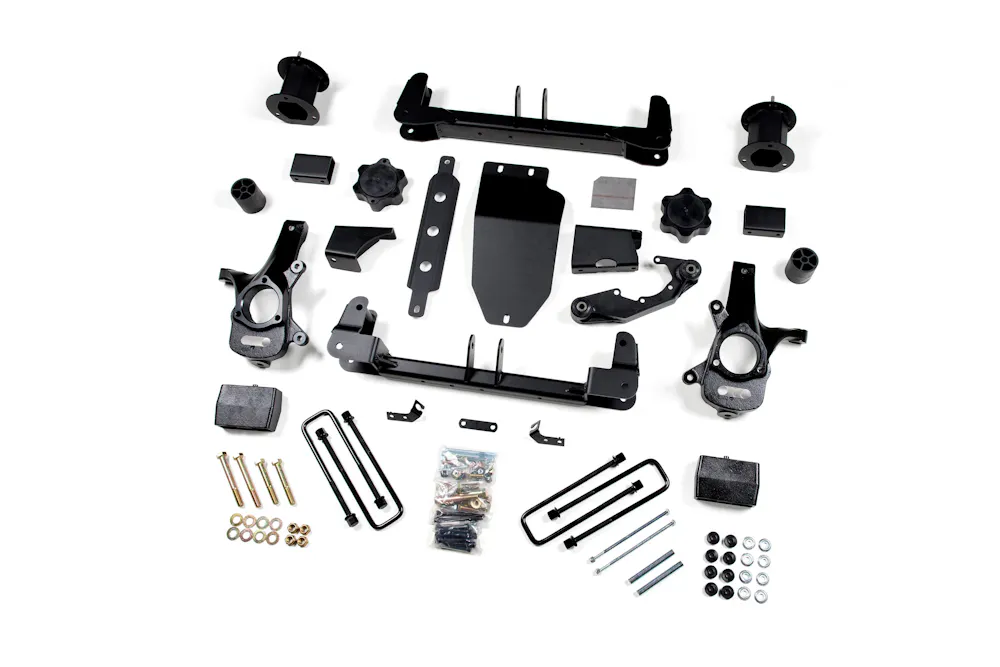

Take your Silverado/Sierra 1500 to new heights with this 4.5 lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 33 tires.
Features & benefits
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance
- FMVSS No.126 compliant to work with your vehicle's stability & traction control systems without lighting up your dash like a Christmas tree
- Heavy-duty differential skid slate improves offroad protection
- High-strength, 1/4 steel construction crossmembers correct lower control arm geometry
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles
- Multi-point differential relocation brackets secure front differential for improved CV operating angles
- Proudly made in the USA
- Rear lift block and longer U-bolts for easy installation and level stance
- Weld-in frame support plate for additional strength
Information
Check Control Arms: GM produced cast steel, stamped steel and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
Fitment: All wheel drive models may require front CV driveshaft. See installation instructions for more information.
Fitment: Will NOT fit models equipped with MagneRide magnetic ride control.
Wheels / Tires: For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.75" backspacing.
Application summary
| Year | Make / model |
|---|---|
| 2014-2018 | Chevrolet Silverado 1500 |
| 2014-2018 | GMC Sierra 1500 |
Component: Zone Offroad Products ZONC2456
Component: Zone Offroad Products ZONC2650
Component: Zone Offroad Products ZONC2651
Specifications
- GTIN
- 00810156360442
- Weight
- 182.9 lb
- Height
- 24 in
- Length
- 48 in
- Width
- 40 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- ZONC27
- AAM brand code
- ZOR
- Warehouse brand code
- ZOR
- AAIA brand code
- FQMS
Attributes
- Accommodates Factory Wheels
- See Notes
- Adjustable
- No
- Alternate Part Number
- ZONC27
- Back Spacing
- 5"
- Back Spacing 2
- 5"
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Finish
- Powdercoat
- Front Lift Height
- 4.5"
- Front Lift Method
- Strut Spacers
- Installation Difficulty
- 4 out of 5
- Installation Time
- 8 hrs
- Lift Type
- Lift Kit
- Max Tire Size
- 33 x 12.5
- Max Tire Size 2
- 33 x 12.5
- Rear Lift Height
- 4"
- Rear Lift Method
- Cast Blocks
- Requires Metal Cutting
- No
- Requires Welding
- No
- Wheel Size
- 17 x 9
- Wheel Size 2
- 18 x 9
Fitment status
This product is universal and will fit your application.
Application summary
2014-2018 Chevrolet Silverado 1500; 2014-2018 GMC Sierra 1500
