Yukon Gear & Axle · YHCC-GM8.5-M
Part #: YHCC-GM8.5-M
UPC: 883584291145
Log in for inventory
Notify me when this item is in stock.

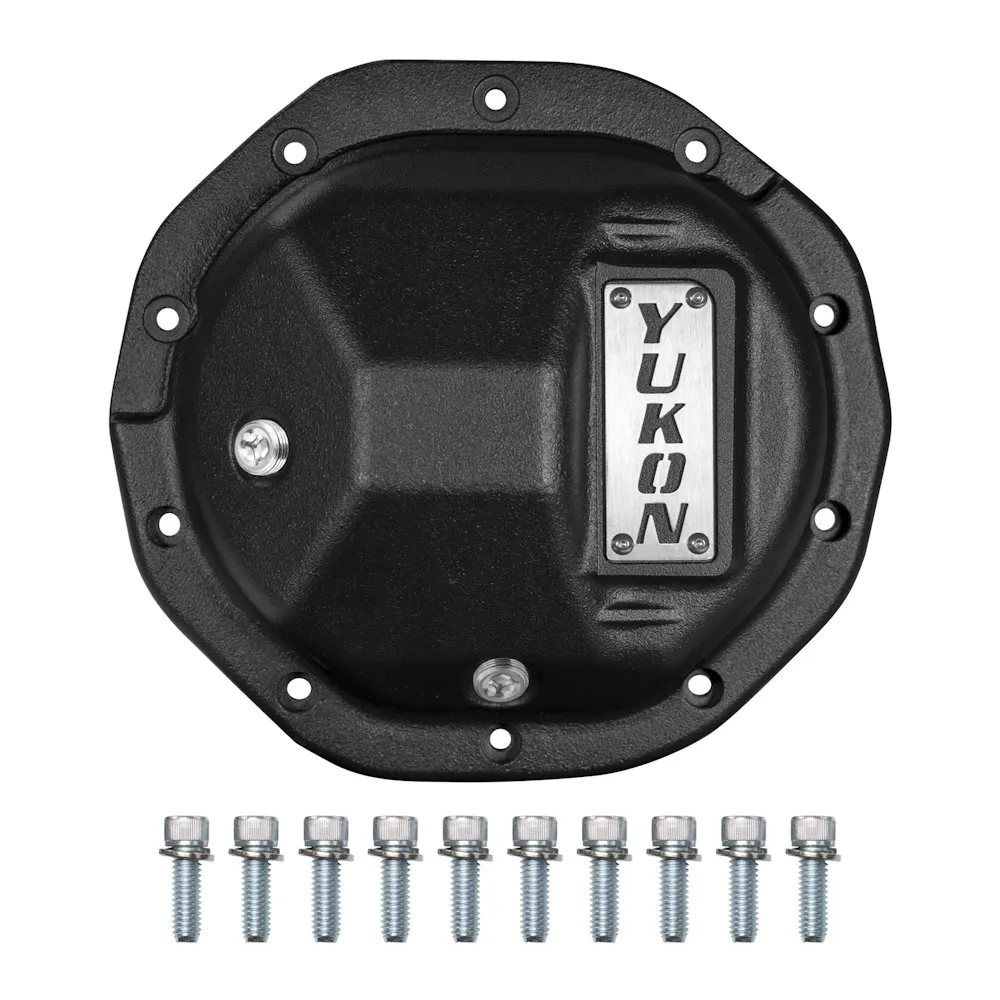

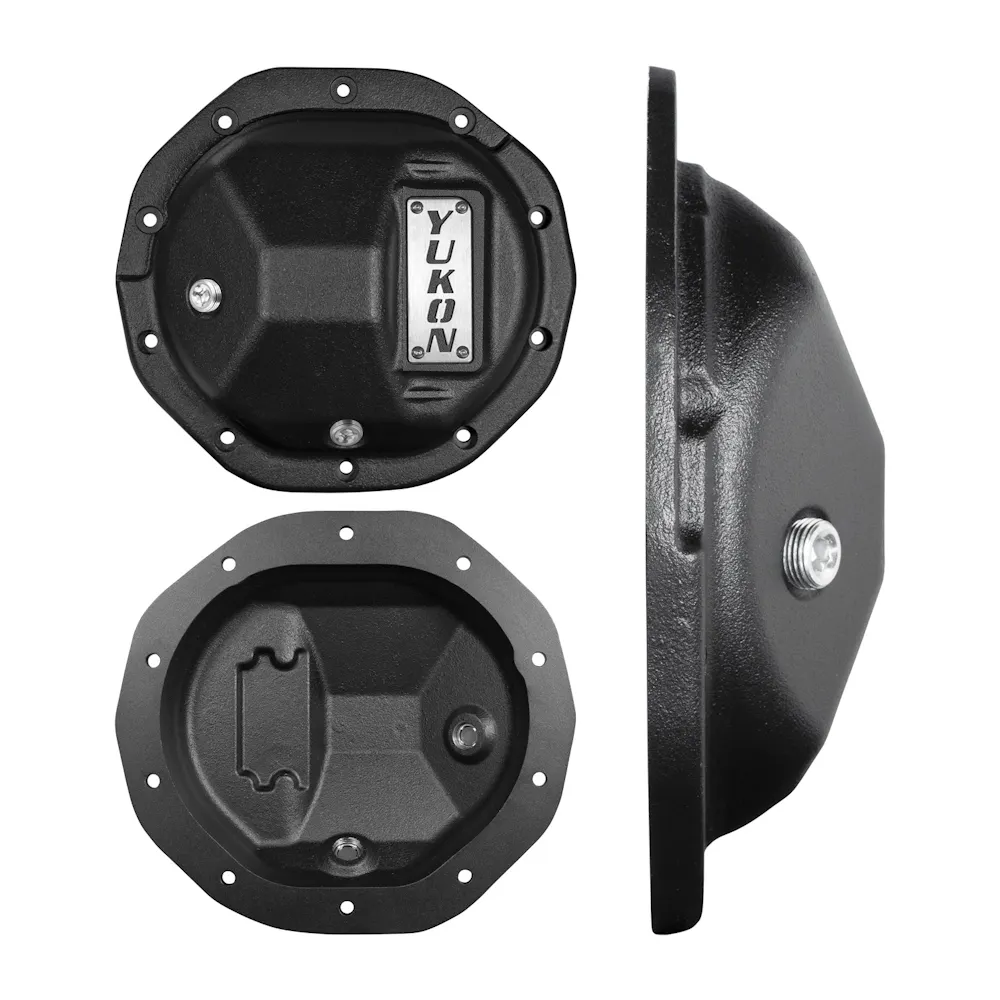

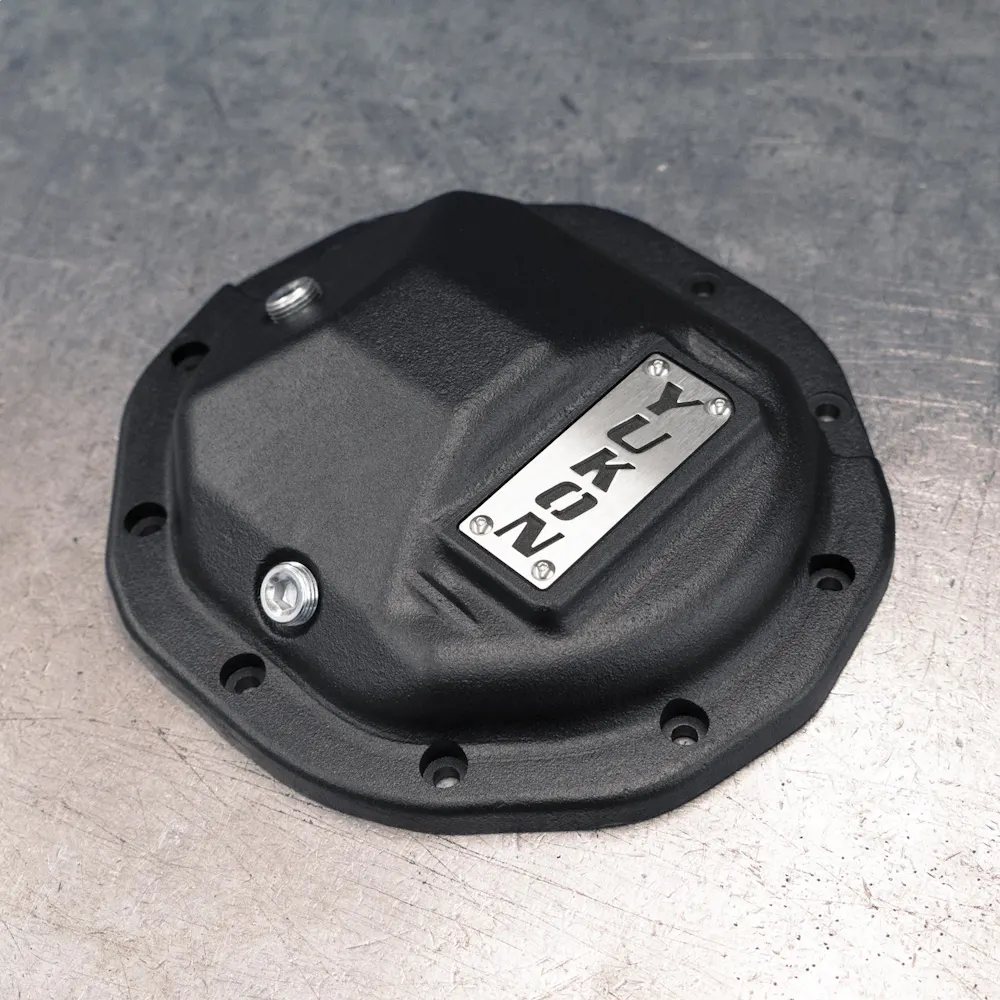

Description: Yukon Rear Nodular Iron Cover for 8.5" GM with 8mm Cover Bolts; 8.5"/ 8.6" GM Rear Yukon Hardcore Nodular Iron Differential Cover, Late with 8mm Cover Bolts
Description:
Description

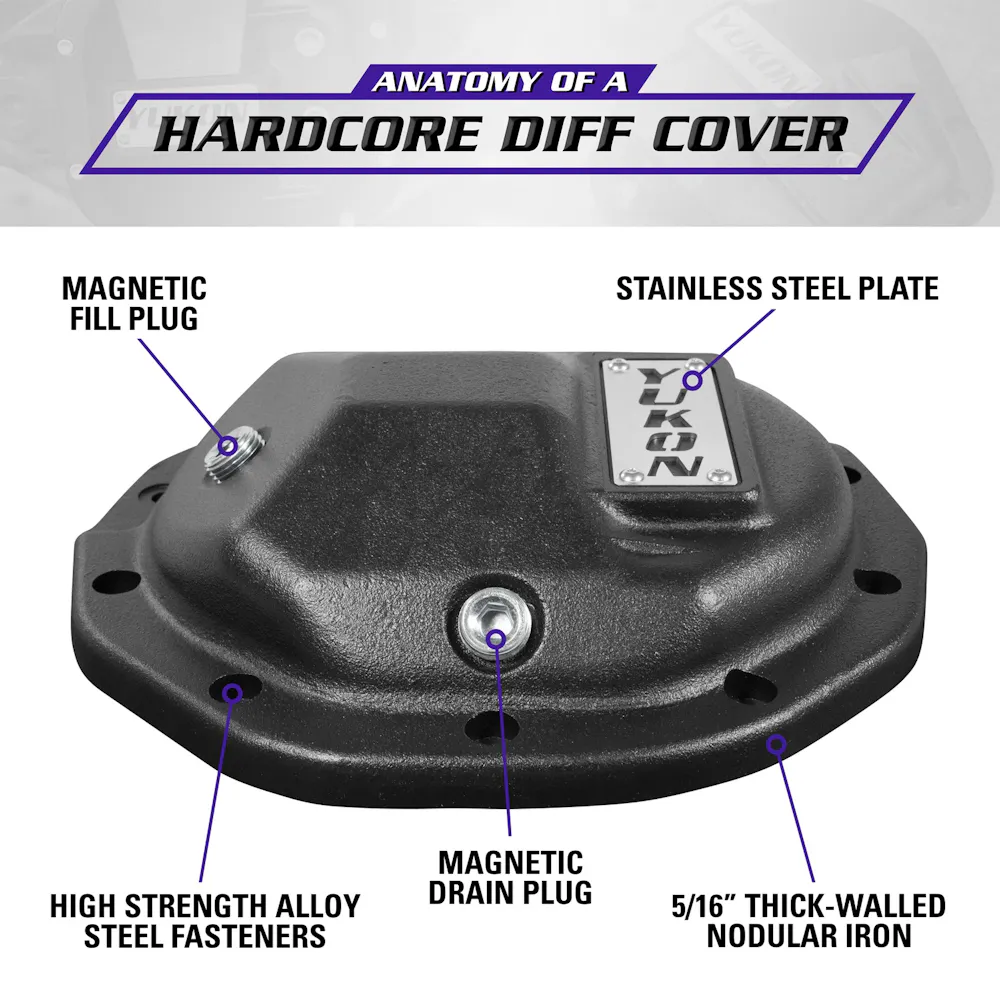

Yukon Hardcore Diff Covers are constructed from thick-walled, high-strength nodular steel to protect lockers, gears and axles from the most extreme hits in off road driving. They also increase the structural rigidity of the differential, reducing deflection under high-torque situations that can put severe loads on vital internal parts. Yukon Hardcore Diff Covers feature a durable powder coat finish and high strength steel fasteners for easy bolt-on installation. It’s no secret that the underside of your rig can take a beating. Remember your diff! It’s the lowest hanging fruit and very susceptible to damage… crack or break it and you’re done for the day. Upgrade to a Yukon Hardcore Diff Cover and enjoy more peace of mind on the trail.
Features & benefits
- Fits GM 8.5/8.6" differentials
- Thick-walled nodular iron construction promotes housing rigidity

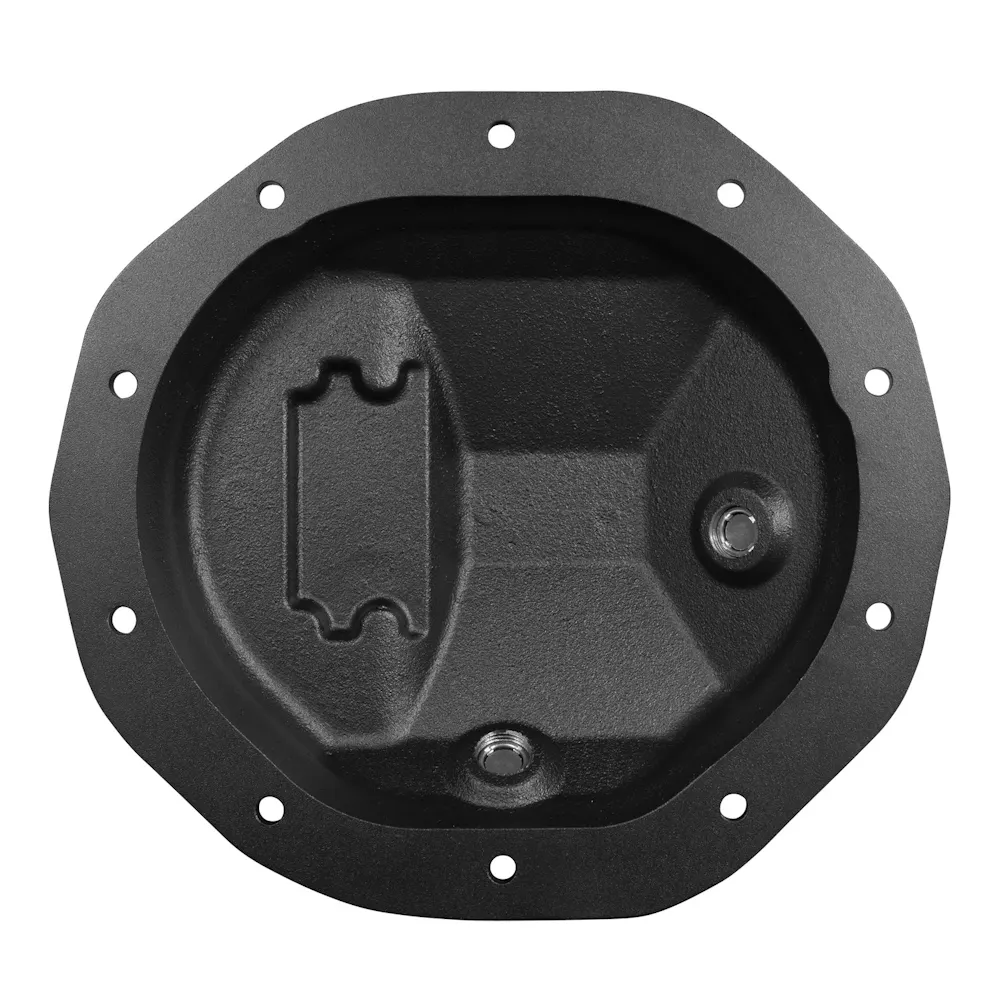

- Contoured inner surfaces circulate oil more rapidly for faster cooling
- Black powder coat finish adds durability and style
- Contrasting stainless-steel accent plate and cover bolts
- Fits standard and reverse rotation diffs
Information

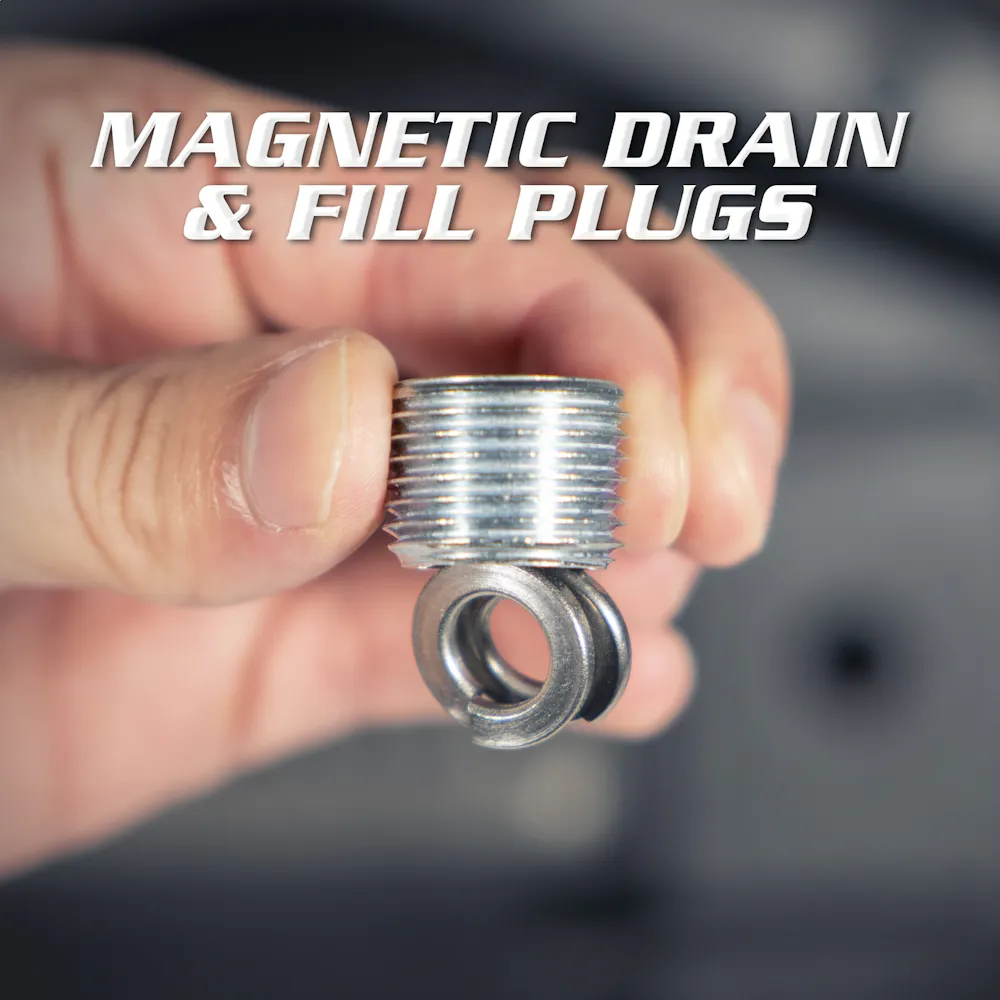

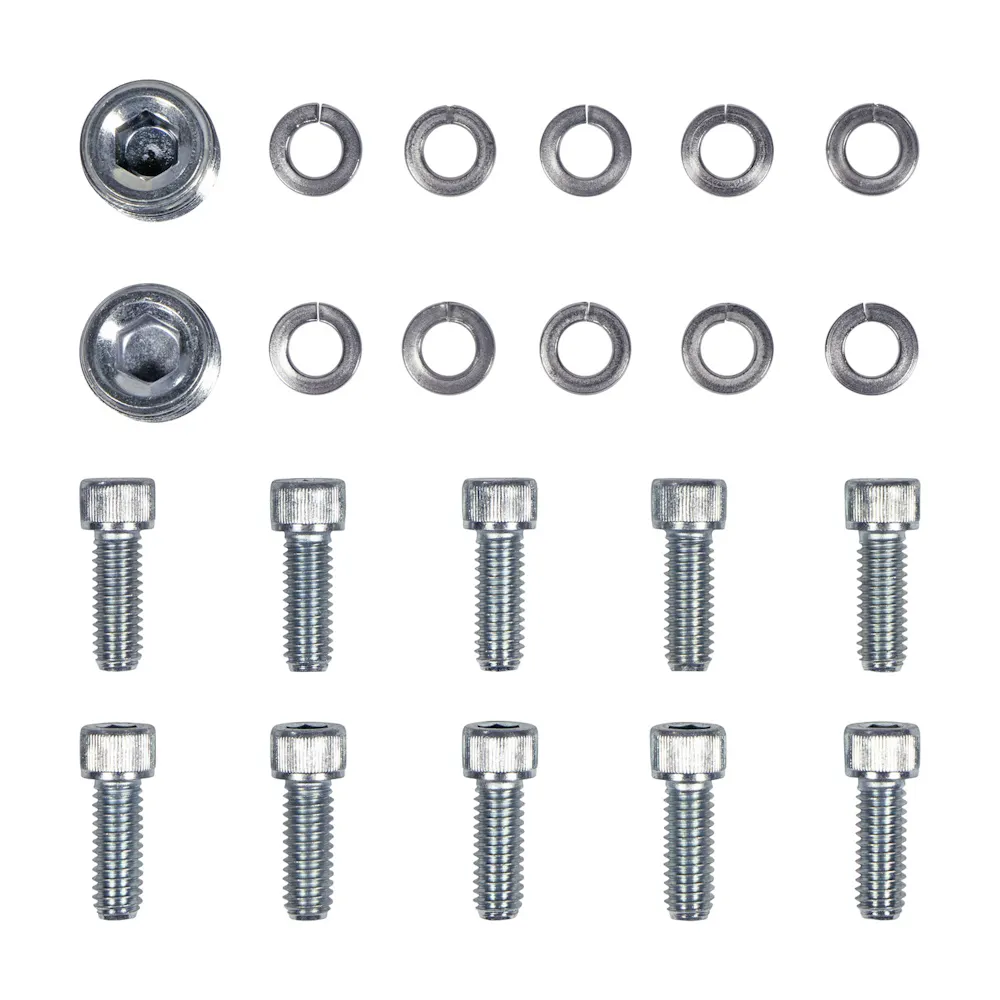

Includes Magnetic Drain and Fill Plugs; Includes Metric M8 Cover Bolts
Application summary
| Year | Make / model |
|---|---|
| 1999-2000 | Cadillac Escalade |
| 2002-2019 | Cadillac Escalade |
| 2003-2019 | Cadillac Escalade ESV |
| 2002-2013 | Cadillac Escalade EXT |
| 2007-2013 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 2000-2014 | Chevrolet Express 1500 |
| 1999-2019 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2019 | Chevrolet Silverado 1500 LD |
| 2014-2019 | Chevrolet Suburban |
| 1999-2014 | Chevrolet Suburban 1500 |
| 1999-2019 | Chevrolet Tahoe |
| 2000-2014 | GMC Savana 1500 |
| 1999-2019 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 1999-2019 | GMC Yukon |
| 2015-2019 | GMC Yukon XL |
| 2000-2014 | GMC Yukon XL 1500 |
Specifications
- GTIN
- 00883584291145
- Weight
- 11.8 lb
- Height
- 5 in
- Length
- 15 in
- Width
- 15 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- YUK
- Warehouse brand code
- FDHC
- AAIA brand code
- FDHC
Attributes
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- California Proposition 65
- Yes
- Carrier Main Cap Support
- No
- Cover Bolt Hole Quantity
- 10
- Filler Plug Included
- Yes
- Finish
- Black
- Gasket Or Seal Included
- No
- Mounting Bolts Included
- Yes
- Position
- N/A
- Ring Gear Bolt Quantity
- 10
- Title
- Yukon Rear Nodular Iron Cover for 8.6" GM with 8mm Cover Bolts
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1999-2000 Cadillac Escalade; 2002-2019 Cadillac Escalade; 2003-2019 Cadillac Escalade ESV; 2002-2013 Cadillac Escalade EXT; 2007-2013 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 2000-2014 Chevrolet Express 1500; 1999-2019 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2019 Chevrolet Silverado 1500 LD; 2014-2019 Chevrolet Suburban; 1999-2014 Chevrolet Suburban 1500; 1999-2019 Chevrolet Tahoe; 2000-2014 GMC Savana 1500; 1999-2019 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 1999-2019 GMC Yukon; 2015-2019 GMC Yukon XL; 2000-2014 GMC Yukon XL 1500
