Yukon Gear & Axle · YDGGM8.5-3-30-1
Part #: YDGGM8.5-3-30-1
UPC: 883584260165
Log in for inventory
Notify me when this item is in stock.

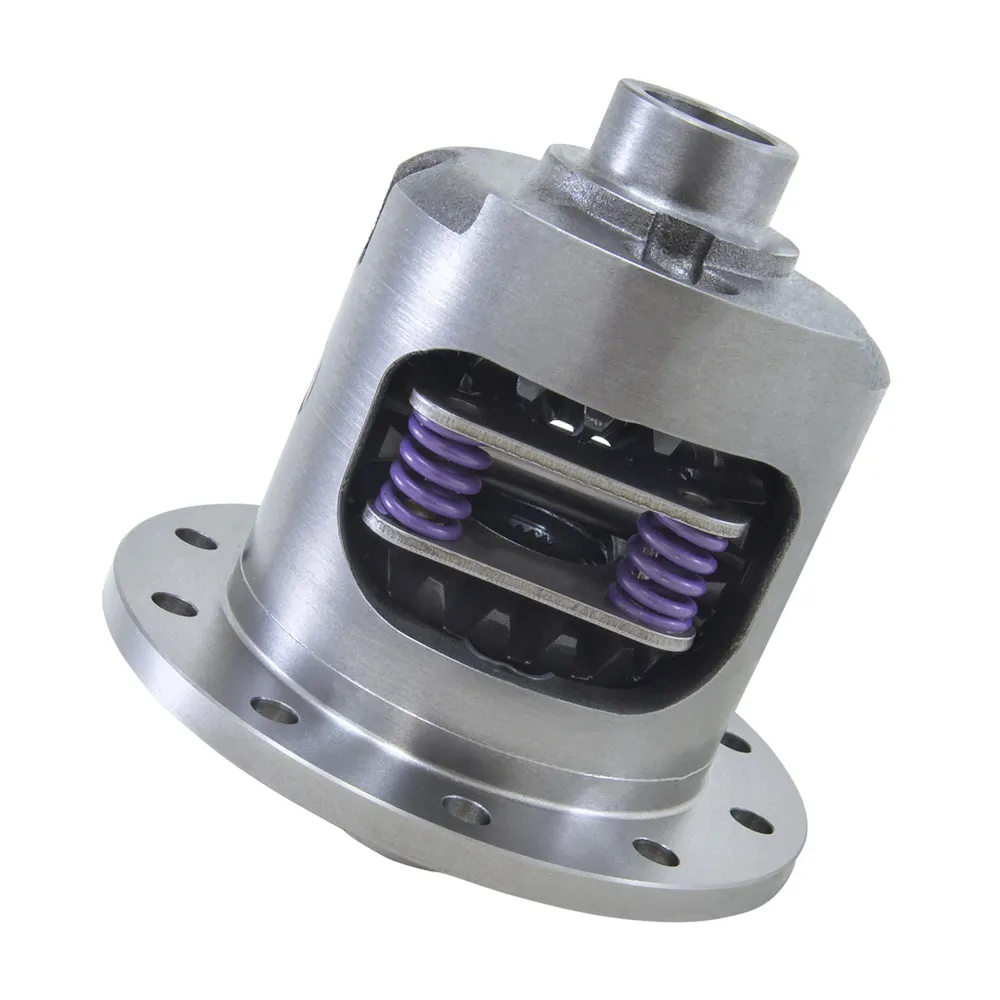

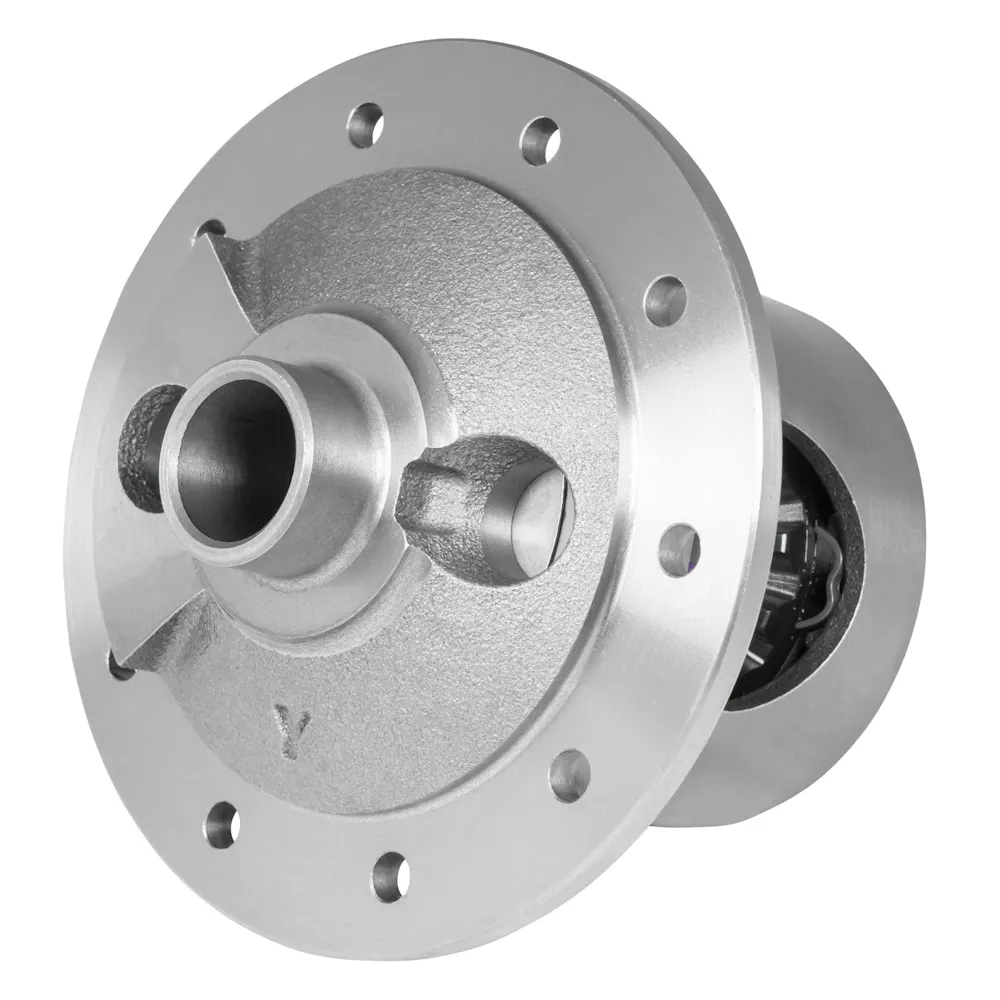

Description: 8.5" & 8.6" GM 2.73 & Up Dura Grip Limited Slip, 30spl; Composite Clutches; Yukon Dura Grip is a positraction limited slip differential that provides smooth yet aggressive traction, giving you the confidence and performance you need across a wide variety of terrains.
Description:
Description
Yukon Dura Grip is a positraction limited slip differential that provides smooth yet aggressive traction, giving you the confidence and performance you need across a wide variety of terrains.
Features & benefits
- Fits 8.5" & 8.6" GM with 30 spline axles
- Fits 2.73-and-up gear ratio
- All units are backed by extensive product testing and state-of-the-art software design
- Limited Slip Differential with composite clutches
- Fully rebuildable design and proudly assembled in the USA
- Yukon Dura Grips feature 4320 chromoly spider gears for ultimate durability
Information
Yukon recommends the use of high grade Non-Synthetic GL-5 gear oil and Yukon LSD (Limited Slip Differential) additive for long life and smooth operation. Part number OILADD. The use of synthetic oil is not recommended and may result in aggressive or noisy operation. This unit uses carrier bearing & race part numbers LM102949 & LM102911 for the 8.5" housing (2.891" Race OD) or LM603049 & LM603012 for the GM 8.6" housing (3.062" Race OD).
Application summary
| Year | Make / model |
|---|---|
| 1973-1975 | Buick Apollo |
| 1971-1989 | Buick Electra |
| 2004-2007 | Buick Rainier |
| 1973-1987 | Buick Regal |
| 1975-1978 | Buick Riviera |
| 1970-1972 | Buick Skylark |
| 1975-1979 | Buick Skylark |
| 1999-2000 | Cadillac Escalade |
| 2002-2013 | Cadillac Escalade |
| 2007-2013 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 1970-1975 | Chevrolet Bel Air |
| 1987-1994 | Chevrolet Blazer |
| 1979-1986 | Chevrolet C10 |
| 1979-1986 | Chevrolet C10 Suburban |
| 1988-1999 | Chevrolet C1500 |
| 1992-1999 | Chevrolet C1500 Suburban |
| 1989-2000 | Chevrolet C2500 |
| 1970-1981 | Chevrolet Camaro |
| 1970-1996 | Chevrolet Caprice |
| 1973 | Chevrolet Chevelle |
| 2004-2012 | Chevrolet Colorado |
| 1971-1976 | Chevrolet El Camino |
| 1996-2014 | Chevrolet Express 1500 |
| 1979-1995 | Chevrolet G10 |
| 1975-1995 | Chevrolet G20 |
| 1971-1985 | Chevrolet Impala |
| 1994-1996 | Chevrolet Impala |
| 1977-1986 | Chevrolet K10 |
| 1977-1986 | Chevrolet K10 Suburban |
| 1988-1999 | Chevrolet K1500 |
| 1992-1999 | Chevrolet K1500 Suburban |
| 1977-1986 | Chevrolet K20 |
| 1977-1986 | Chevrolet K20 Suburban |
| 1977-1986 | Chevrolet K5 Blazer |
| 1978-1983 | Chevrolet Malibu |
| 1973-1978 | Chevrolet Monte Carlo |
| 1970-1979 | Chevrolet Nova |
| 1987 | Chevrolet R10 |
| 1987-1988 | Chevrolet R10 Suburban |
| 1989-1991 | Chevrolet R1500 Suburban |
| 1994-2004 | Chevrolet S10 |
| 1999-2017 | Chevrolet Silverado 1500 |
| 2003-2006 | Chevrolet SSR |
| 2000-2014 | Chevrolet Suburban 1500 |
| 1995-2017 | Chevrolet Tahoe |
| 2002-2009 | Chevrolet Trailblazer |
| 1987 | Chevrolet V10 |
| 1987-1988 | Chevrolet V10 Suburban |
| 1989-1991 | Chevrolet V1500 Suburban |
| 1987 | Chevrolet V20 |
| 1987-1988 | Chevrolet V20 Suburban |
| 1989-1991 | Chevrolet V2500 Suburban |
| 1979-1986 | GMC C1500 |
| 1988-1999 | GMC C1500 |
| 1979-1986 | GMC C1500 Suburban |
| 1992-1999 | GMC C1500 Suburban |
| 1997-2000 | GMC C2500 |
| 2004-2012 | GMC Canyon |
| 2002-2009 | GMC Envoy |
| 1979-1995 | GMC G1500 |
| 1978 | GMC G25 |
| 1979-1995 | GMC G2500 |
| 1977-1978 | GMC K15 |
| 1977-1978 | GMC K15 Suburban |
| 1979-1986 | GMC K1500 |
| 1988-1999 | GMC K1500 |
| 1979-1985 | GMC K1500 Suburban |
| 1992-1999 | GMC K1500 Suburban |
| 1977-1978 | GMC K25 |
| 1977-1978 | GMC K25 Suburban |
| 1979-1986 | GMC K2500 |
Specifications
- GTIN
- 00883584260165
- Weight
- 22.37 lb
- Height
- 11 in
- Length
- 11 in
- Width
- 11 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- YUK
- Warehouse brand code
- FDHC
- AAIA brand code
- FDHC
Attributes
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- Assembled
- Yes
- Axle Shaft Spline Quantity
- 30
- Axle Type
- semi Floating
- Bolt Hole Quantity
- 10
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Case Included
- Yes
- Differential Brand
- GM
- Gear Ratio
- 2.73 and up
- Heat Treated
- Yes
- Material
- Steel
- Title
- Yukon Dura Grip Limited Slip for GM 8.5" & 8.6" Diff, 2.73 & Up Ratio, 30 Spline
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973-1975 Buick Apollo; 1971-1989 Buick Electra; 2004-2007 Buick Rainier; 1973-1987 Buick Regal; 1975-1978 Buick Riviera; 1970-1972 Buick Skylark; 1975-1979 Buick Skylark; 1999-2000 Cadillac Escalade; 2002-2013 Cadillac Escalade; 2007-2013 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 1970-1975 Chevrolet Bel Air; 1987-1994 Chevrolet Blazer; 1979-1986 Chevrolet C10; 1979-1986 Chevrolet C10 Suburban; 1988-1999 Chevrolet C1500; 1992-1999 Chevrolet C1500 Suburban; 1989-2000 Chevrolet C2500; 1970-1981 Chevrolet Camaro; 1970-1996 Chevrolet Caprice; 1973 Chevrolet Chevelle; 2004-2012 Chevrolet Colorado; 1971-1976 Chevrolet El Camino; 1996-2014 Chevrolet Express 1500; 1979-1995 Chevrolet G10; 1975-1995 Chevrolet G20; 1971-1985 Chevrolet Impala; 1994-1996 Chevrolet Impala; 1977-1986 Chevrolet K10; 1977-1986 Chevrolet K10 Suburban; 1988-1999 Chevrolet K1500; 1992-1999 Chevrolet K1500 Suburban; 1977-1986 Chevrolet K20; 1977-1986 Chevrolet K20 Suburban; 1977-1986 Chevrolet K5 Blazer; 1978-1983 Chevrolet Malibu; 1973-1978 Chevrolet Monte Carlo; 1970-1979 Chevrolet Nova; 1987 Chevrolet R10; 1987-1988 Chevrolet R10 Suburban; 1989-1991 Chevrolet R1500 Suburban; 1994-2004 Chevrolet S10; 1999-2017 Chevrolet Silverado 1500; 2003-2006 Chevrolet SSR; 2000-2014 Chevrolet Suburban 1500; 1995-2017 Chevrolet Tahoe; 2002-2009 Chevrolet Trailblazer; 1987 Chevrolet V10; 1987-1988 Chevrolet V10 Suburban; 1989-1991 Chevrolet V1500 Suburban; 1987 Chevrolet V20; 1987-1988 Chevrolet V20 Suburban; 1989-1991 Chevrolet V2500 Suburban; 1979-1986 GMC C1500; 1988-1999 GMC C1500; 1979-1986 GMC C1500 Suburban; 1992-1999 GMC C1500 Suburban; 1997-2000 GMC C2500; 2004-2012 GMC Canyon; 2002-2009 GMC Envoy; 1979-1995 GMC G1500; 1978 GMC G25; 1979-1995 GMC G2500; 1977-1978 GMC K15; 1977-1978 GMC K15 Suburban; 1979-1986 GMC K1500; 1988-1999 GMC K1500; 1979-1985 GMC K1500 Suburban; 1992-1999 GMC K1500 Suburban; 1977-1978 GMC K25; 1977-1978 GMC K25 Suburban; 1979-1986 GMC K2500; ...
