Yukon Gear & Axle / YDGGM12T-3-33-1
Part #: YDGGM12T-3-33-1
UPC: 883584112402
Loading...
Notify me when this item is in stock.
Description: 12T GM 2.76-3.42 Dura Grip Limited Slip 33spl Positraction w/ Composite Clutches; 12T GM 2.76-3.42 Yukon Dura Grip Limited Slip, Aftermarket 33 Spline Positraction; With Composite Clutches; 12 Bolt Truck; 45 Degree Pressure Angle on Side Gears
Description:
Description
Yukon Dura Grip is a positraction limited slip differential that provides smooth yet aggressive traction, giving you the confidence and performance you need across a wide variety of terrains. The Dura Grip is engineered for long life and is completely rebuildable. Yukon Dura Grips are constructed with a high strength nodular case, forged 4320 chromoly spider gears, and composite clutches. For unmatched positraction performance, the Dura Grip is the ultimate choice. When your vehicle demands performance, durability, and strength, choose Yukon Dura Grip.
Features & benefits
- Fits 12T GM differential
- 2.79 to 3.42 gear ratio
- 33 spline axles (aftermarket)
- Yukon Dura Grips feature 4320 chromoly spider gears for ultimate durability
- Fully rebuildable designed and proudly assembled in the USA
- Limited slip differential with composite clutches
- Gears are cut to provide the strongest teeth possible in any terrain
Information
Requires aftermarket 33 spline axles; Also works with 3.73 & up thick gears. Yukon recommends the use of high grade Non-Synthetic GL-5 gear oil and Yukon LSD (Limited Slip Differential) additive for long life and smooth operation. Part number OILADD. The use of synthetic oil is not recommended and may result in aggressive or noisy operation.
Application summary
| Year | Make / model |
|---|---|
| 1969-1974 | Chevrolet Blazer |
| 1987 | Chevrolet Blazer |
| 1975-1986 | Chevrolet C10 |
| 1963-1974 | Chevrolet C10 Pickup |
| 1975-1981 | Chevrolet G10 |
| 1967-1974 | Chevrolet G10 Van |
| 1975-1986 | Chevrolet K10 |
| 1963-1974 | Chevrolet K10 Pickup |
| 1967-1986 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K5 Blazer |
| 1987 | Chevrolet R10 |
| 1963-1966 | Chevrolet Suburban |
| 1987 | Chevrolet V10 |
| 1987-1988 | Chevrolet V10 Suburban |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1967-1974 | GMC C15/C1500 Pickup |
| 1967-1974 | GMC C15/C1500 Suburban |
| 1979-1986 | GMC C1500 |
| 1979-1986 | GMC C1500 Suburban |
| 1975-1978 | GMC G15 |
| 1967-1974 | GMC G15/G1500 Van |
| 1964-1966 | GMC G1500 |
| 1979-1987 | GMC G1500 |
| 1975-1978 | GMC G25 |
| 1967-1974 | GMC G25/G2500 Van |
| 1979-1981 | GMC G2500 |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1966-1974 | GMC K15/K1500 Pickup |
| 1967-1974 | GMC K15/K1500 Suburban |
| 1979-1986 | GMC K1500 |
| 1979-1985 | GMC K1500 Suburban |
| 1987 | GMC R1500 |
| 1987 | GMC R1500 Suburban |
| 1963-1966 | GMC Suburban |
| 1987 | GMC V1500 |
| 1987 | GMC V1500 Suburban |
Specifications
- GTIN
- 00883584112402
- Weight
- 24 lb
- Height
- 11 in
- Length
- 11 in
- Width
- 11 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- YUK
- Warehouse brand code
- FDHC
- AAIA brand code
- FDHC
Attributes
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- Assembled
- Yes
- Axle Shaft Spline Quantity
- 33
- Axle Type
- semi Floating
- Bolt Hole Quantity
- 12
- California Proposition 65
- Yes
- Case Included
- Yes
- Differential Brand
- GM
- Gear Ratio
- 2.76 to 3.42
- Heat Treated
- Yes
- Material
- Steel
- Title
- Yukon Dura Grip LSD posi, GM 12T, 33 spline, 2.76-3.42 ratio, w/comp clutches
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1974 Chevrolet Blazer; 1987 Chevrolet Blazer; 1975-1986 Chevrolet C10; 1963-1974 Chevrolet C10 Pickup; 1975-1981 Chevrolet G10; 1967-1974 Chevrolet G10 Van; 1975-1986 Chevrolet K10; 1963-1974 Chevrolet K10 Pickup; 1967-1986 Chevrolet K10 Suburban; 1975-1986 Chevrolet K5 Blazer; 1987 Chevrolet R10; 1963-1966 Chevrolet Suburban; 1987 Chevrolet V10; 1987-1988 Chevrolet V10 Suburban; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1967-1974 GMC C15/C1500 Pickup; 1967-1974 GMC C15/C1500 Suburban; 1979-1986 GMC C1500; 1979-1986 GMC C1500 Suburban; 1975-1978 GMC G15; 1967-1974 GMC G15/G1500 Van; 1964-1966 GMC G1500; 1979-1987 GMC G1500; 1975-1978 GMC G25; 1967-1974 GMC G25/G2500 Van; 1979-1981 GMC G2500; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1966-1974 GMC K15/K1500 Pickup; 1967-1974 GMC K15/K1500 Suburban; 1979-1986 GMC K1500; 1979-1985 GMC K1500 Suburban; 1987 GMC R1500; 1987 GMC R1500 Suburban; 1963-1966 GMC Suburban; 1987 GMC V1500; 1987 GMC V1500 Suburban

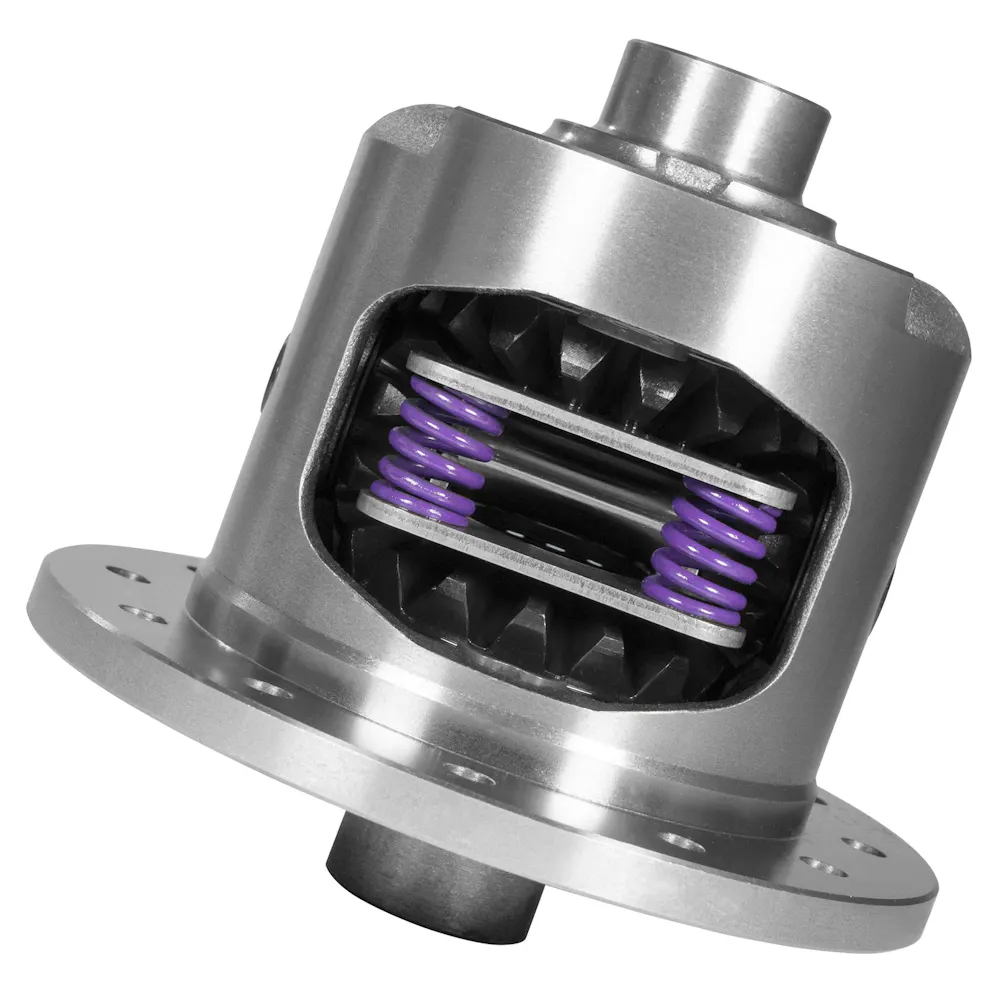

Yukon Gear & Axle YDGGM12T-3-33-1
