Yukon Gear & Axle / YDGGM12P-3-30-1
Part #: YDGGM12P-3-30-1
UPC: 883584260110
Loading...
Notify me when this item is in stock.
Description: 12P GM 3.08-3.90 Dura Grip Limited Slip, 30spl, Composite Clutches; 12P GM 3.08-3.90 Yukon Dura Grip Limited Slip, 30 Spline, Positraction; Composite Clutches
Description:
Description
12P GM 3.08-3.90 Yukon Dura Grip Limited Slip, 30 Spline, Positraction; Composite Clutches
Features & benefits
- Fits 12P GM differential
- 30 spline axles
- Fits 3.08-3.90 gear ratio (Also fits thick gears)
- Yukon Dura Grips feature 4320 chromoly spider gears for ultimate durability
- All units are backed by extensive product testing and state-of-the-art software design
- Limited Slip Differential with composite clutches
- Fully rebuildable design and proudly assembled in the USA
- Gears are cut to provide the strongest teeth possible in any terrain
Information
Yukon recommends the use of high grade Non-Synthetic GL-5 gear oil and Yukon LSD (Limited Slip Differential) additive for long life and smooth operation. Part number OILADD. The use of synthetic oil is not recommended and may result in aggressive or noisy operation.
Application summary
| Year | Make / model |
|---|---|
| 1964-1970 | Buick Wildcat |
| 1964-1972 | Chevrolet Bel Air |
| 1964-1972 | Chevrolet Biscayne |
| 1967-1972 | Chevrolet Camaro |
| 1966-1970 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1964-1968 | Chevrolet Chevy II |
| 1965-1972 | Chevrolet El Camino |
| 1964-1972 | Chevrolet Impala |
| 1970-1972 | Chevrolet Monte Carlo |
| 1969-1972 | Chevrolet Nova |
| 1969-1972 | Pontiac Firebird |
| 1970-1972 | Pontiac GTO |
Specifications
- GTIN
- 00883584260110
- Weight
- 24.17 lb
- Height
- 12 in
- Length
- 12 in
- Width
- 12 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- YUK
- Warehouse brand code
- FDHC
- AAIA brand code
- FDHC
Attributes
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- Assembled
- Yes
- Axle Shaft Spline Quantity
- 30
- Axle Type
- semi Floating
- Bolt Hole Quantity
- 12
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Case Included
- Yes
- Differential Brand
- GM
- Gear Ratio
- 3.08 to 3.90
- Heat Treated
- Yes
- Material
- Steel
- Title
- Yukon Dura Grip Limited Slip for GM 12P Differential, 3.08-3.90 Ratio, 30 Spline
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1964-1970 Buick Wildcat; 1964-1972 Chevrolet Bel Air; 1964-1972 Chevrolet Biscayne; 1967-1972 Chevrolet Camaro; 1966-1970 Chevrolet Caprice; 1964-1973 Chevrolet Chevelle; 1964-1968 Chevrolet Chevy II; 1965-1972 Chevrolet El Camino; 1964-1972 Chevrolet Impala; 1970-1972 Chevrolet Monte Carlo; 1969-1972 Chevrolet Nova; 1969-1972 Pontiac Firebird; 1970-1972 Pontiac GTO

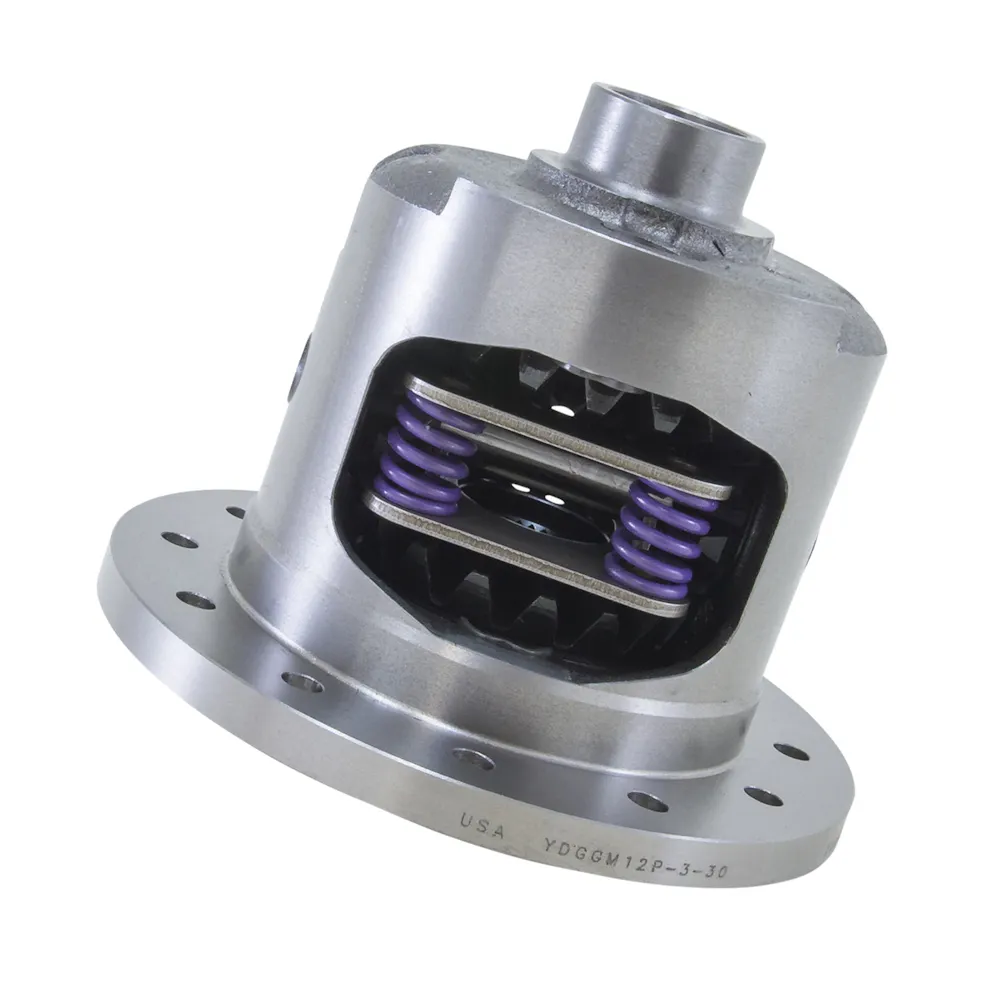

Yukon Gear & Axle YDGGM12P-3-30-1
