Wiseco Performance Products / RED0024X1
Part #: RED0024X1
UPC: 193564526588
Loading...
Notify me when this item is in stock.

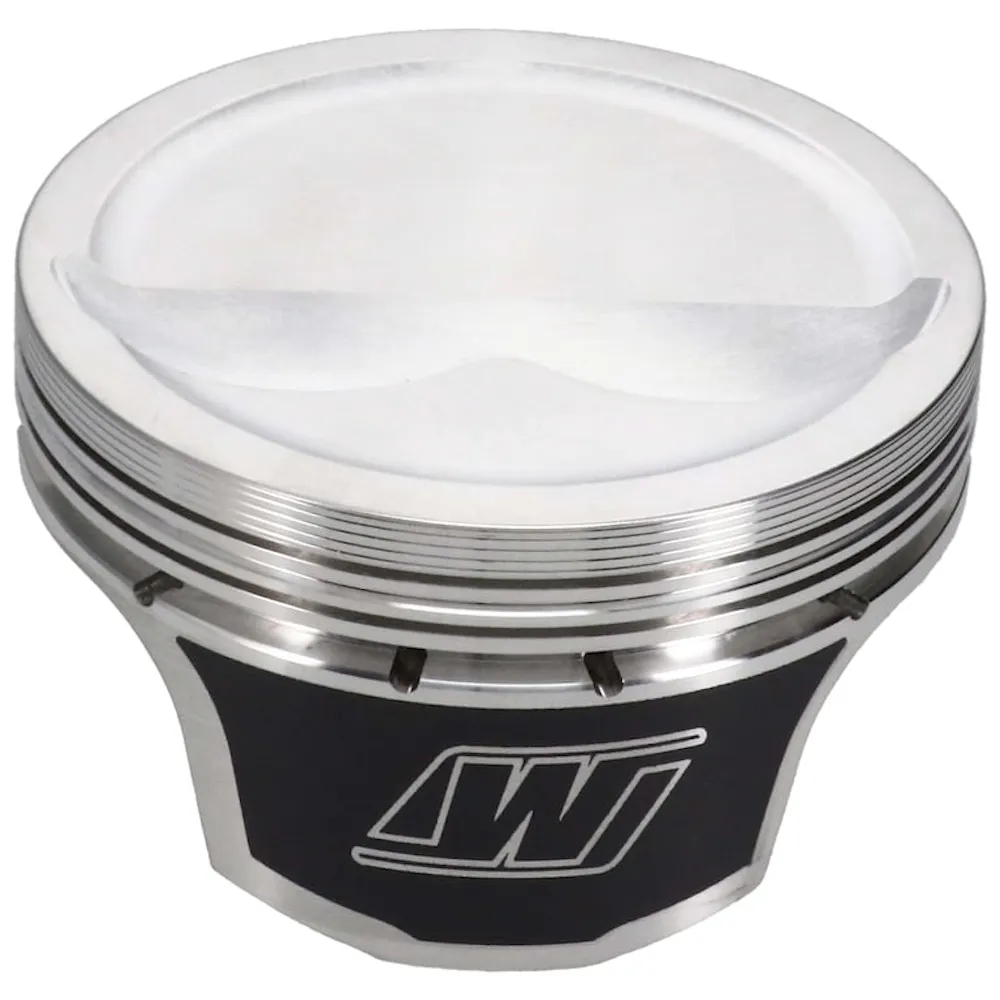

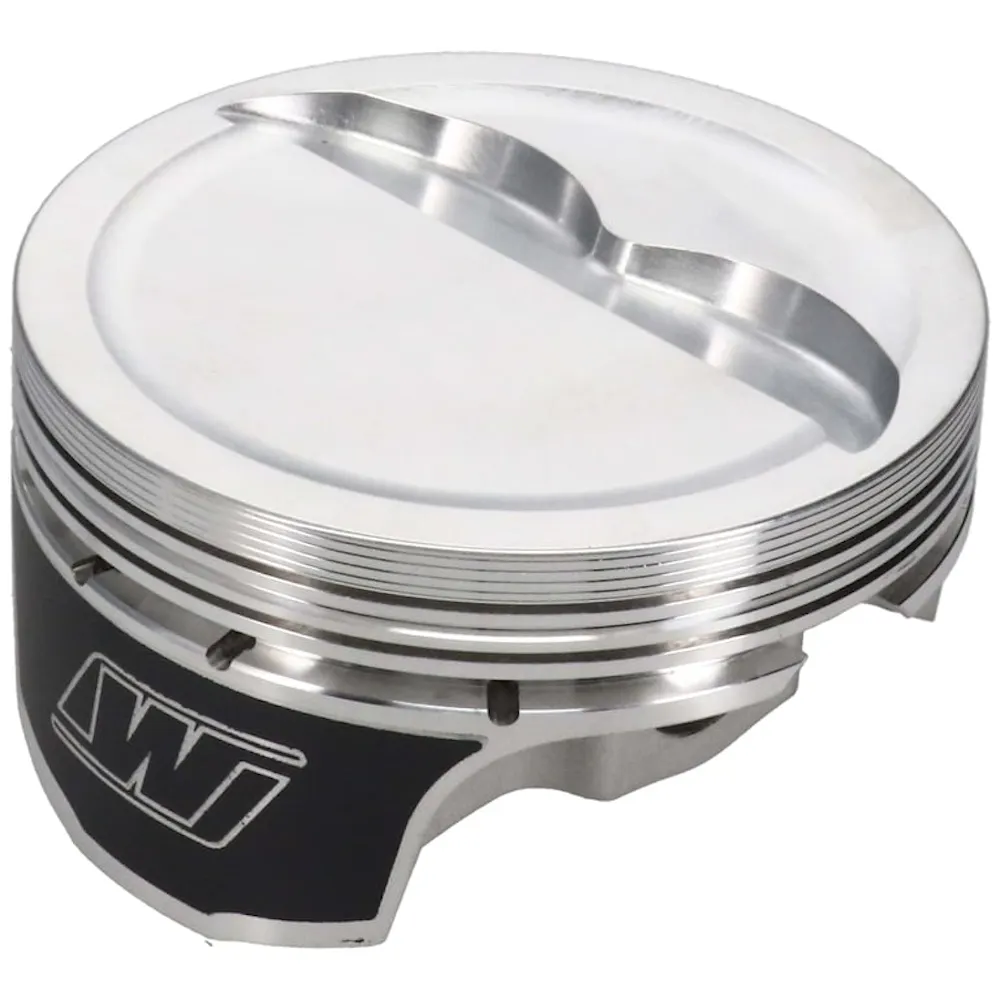

Description: Piston Set, Chevrolet, Small Block 400, 4.135 in. Bore, RED Series, Set of 8.; Wiseco Chevrolet Small Block 400 Piston Set, 4.135 in. Bore, 1.125 in. Compression Height, 0.927 in. Pin Diameter, RED Series, Set of 8.
Description:
Description
Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.
Features & benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications
- Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics
- ArmorGlide skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear
- Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service life
- Accumulator groove helps maintain consistent ring seal and power
- Each part number includes premium rings no need for additional sourcing
Specifications
- GTIN
- 00193564526588
- Weight
- 14 lb
- Height
- 4.75 in
- Length
- 28 in
- Width
- 11.5 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- WPP
- Warehouse brand code
- BJKF
- AAIA brand code
- BJKF
Attributes
- Bore Diameter
- 4.135
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>Pistons>Piston Kits>Domestic>RED Series
- Compression Height
- 1.125
- Cylinder Head
- 23 Degree
- EBAY Category ID
- 33623
- Engine
- Small Block 400
- Engine - Web
- Small Block 400
- Engine Type
- ICE
- Forging Type
- Strutted
- Industry
- Automotive
- Make
- Chevrolet
- Make - Web
- Chevy
- Oil Ring Tension
- Standard
- Oil Ring Thickness
- 3.00
- Out of Stock Message
- Estimated Shipped Date 3-4 Weeks
- Piston Material
- 2618
- Piston Quantity
- 8
- Piston Volume
- -12.00
- Product Market
- Domestic
- Product Series
- RED Series
- Product Type
- Engine Piston Set
- Ring Quantity
- 8
- Ring Set Included
- Yes
- Ring Set Part Number
- 4137GFX
- Rod Length
- 6.000
- Second Compression Ring Thickness
- 1.20
- Second Ring Material
- Ductile Iron
- Skirt Coating
- Yes
- Stroke
- 3.750
- Third Ring Material
- Stainless Steel
- Title
- RED Series - Chevrolet, Small Block 400, 4.135 in. Bore, Piston Set of 8
- Title - Web
- RED Series Chevy Small Block 400 Piston Set of 8 - 4.135 in. Bore - 1.125 in. CH, -12.00 CC
- Top Compression Ring Thickness
- 1.20
- Top Ring Material
- Steel
- Wrist Pin Included
- Yes
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.927
- Wrist Pin Part Number
- S736
- Wrist Pin Quantity
- 8
- Wrist Pin Retainer Included
- Yes
- Wrist Pin Retainer Material
- Chrome Silicone
- Wrist Pin Retainer Part Number
- W5595
- Wrist Pin Retainer Quantity
- 16
- Wrist Pin Retainer Style
- Wire Lock
- Wrist Pin Retainer Thickness
- 0.072
- Wrist Pin Style
- Floating
Fitment status
This product is universal and will fit your application.
Application summary
Chevrolet Small Block 400
