Wiseco Performance Products / 70060XS
Part #: 70060XS
UPC: 193564511812
Loading...
Notify me when this item is in stock.

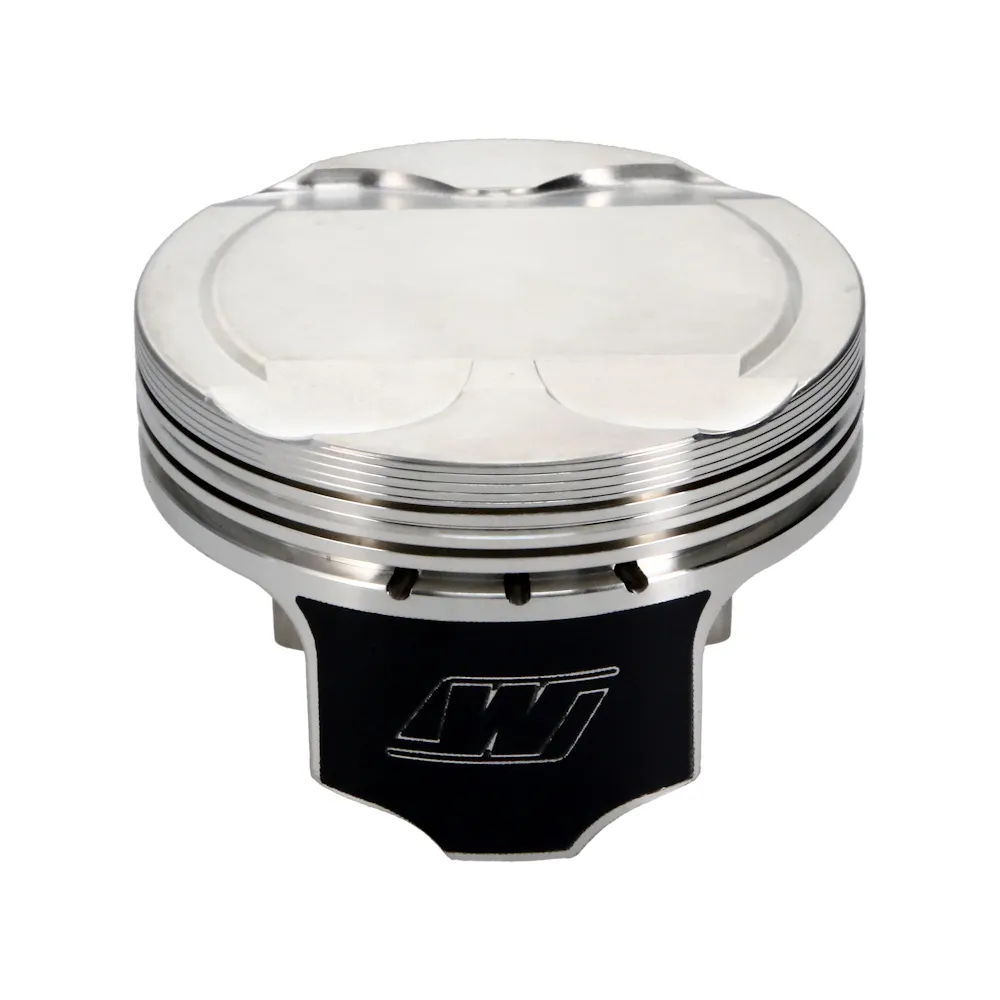

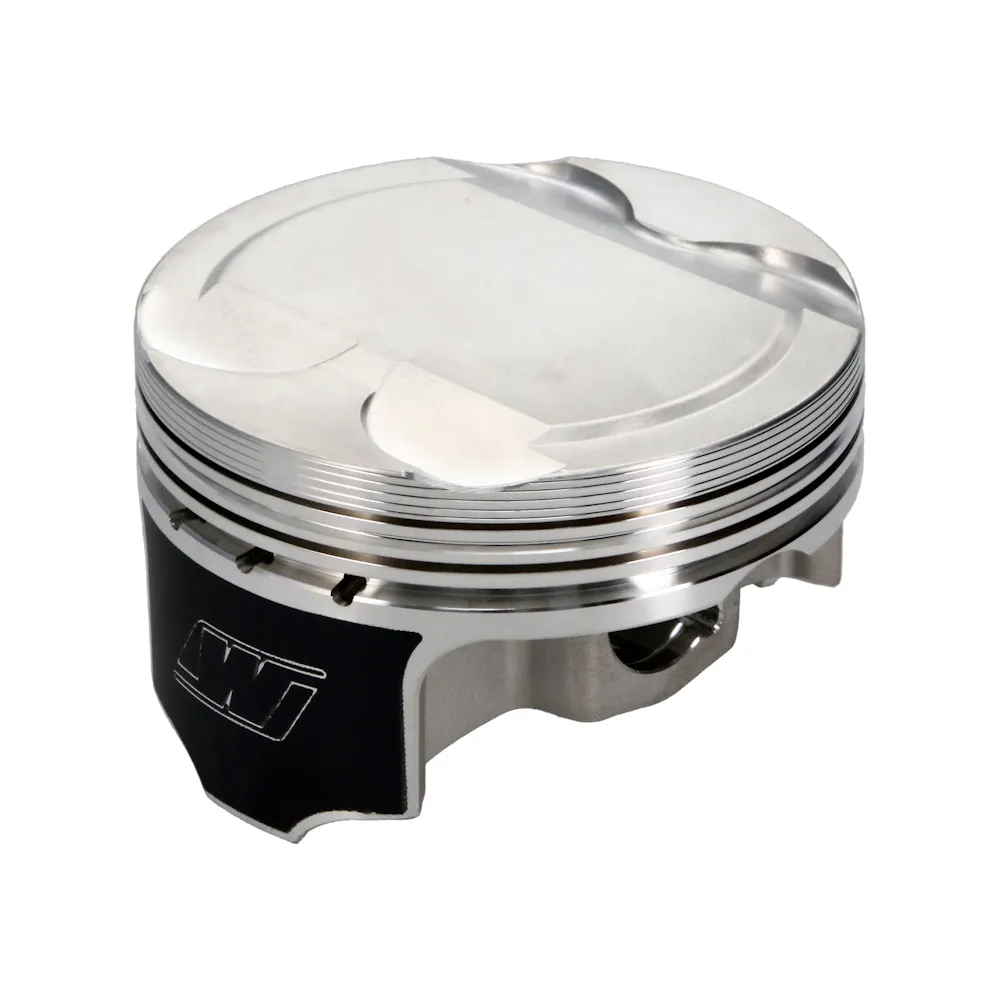

Description: Piston, Ford, 5.0L Modular, 3.662 in. Bore, RED Series, Single Piston; Wiseco Ford 5.0L Modular Piston, 3.662 in. Bore, 1.170 in. Compression Height, 0.866 in. Pin Diameter, RED Series
Description:
Description
Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.
Features & benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications
- Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics
- ArmorGlide skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear
- Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service life
- Accumulator groove helps maintain consistent ring seal and power
- Each part number includes premium rings no need for additional sourcing
Specifications
- GTIN
- 00193564511812
- Weight
- 1.7 lb
- Height
- 4.2 in
- Length
- 4.7 in
- Width
- 4.7 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- WPP
- Warehouse brand code
- BJKF
- AAIA brand code
- BJKF
Attributes
- Bore Diameter
- 3.662
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>Pistons>Individual Pistons>Domestic>RED Series
- Compression Height
- 1.170
- EBAY Category ID
- 33623
- Engine
- 5.0L Modular
- Engine - Web
- Modular
- Engine Detail
- Ford 5.0
- Engine Type
- ICE
- Forging Type
- Strutted
- Industry
- Automotive
- Make
- Ford
- Make - Web
- Ford
- Oil Ring Thickness
- 2.80
- Out of Stock Message
- Estimated Shipped Date 3-4 Weeks
- Piston Material
- 2618
- Piston Pin Included
- Yes
- Piston Pin Material
- 5115
- Piston Quantity
- 1
- Piston Volume
- 7.00
- Product Market
- Domestic
- Product Series
- RED Series
- Product Type
- Engine Piston
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Rod Length
- 5.933
- Second Compression Ring Thickness
- 1.20
- Skirt Coating
- Yes
- Stroke
- 3.650
- Title
- RED Series - Ford , 5.0L Modular, 3.662 in. Bore, Piston
- Title - Web
- RED Series Ford 5.0L Modular Piston - 3.662 in. Bore - 1.170 .in CH, 7.00 CC
- Top Compression Ring Thickness
- 1.00
- Wrist Pin Diameter
- 0.866
- Wrist Pin Included
- Yes
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.866
- Wrist Pin Style
- Floating
Fitment status
This product is universal and will fit your application.
Application summary
Ford 5.0L Modular
