Wiseco Performance Products / 6614M83
Part #: 6614M83
UPC: 193564173294
Loading...
Notify me when this item is in stock.

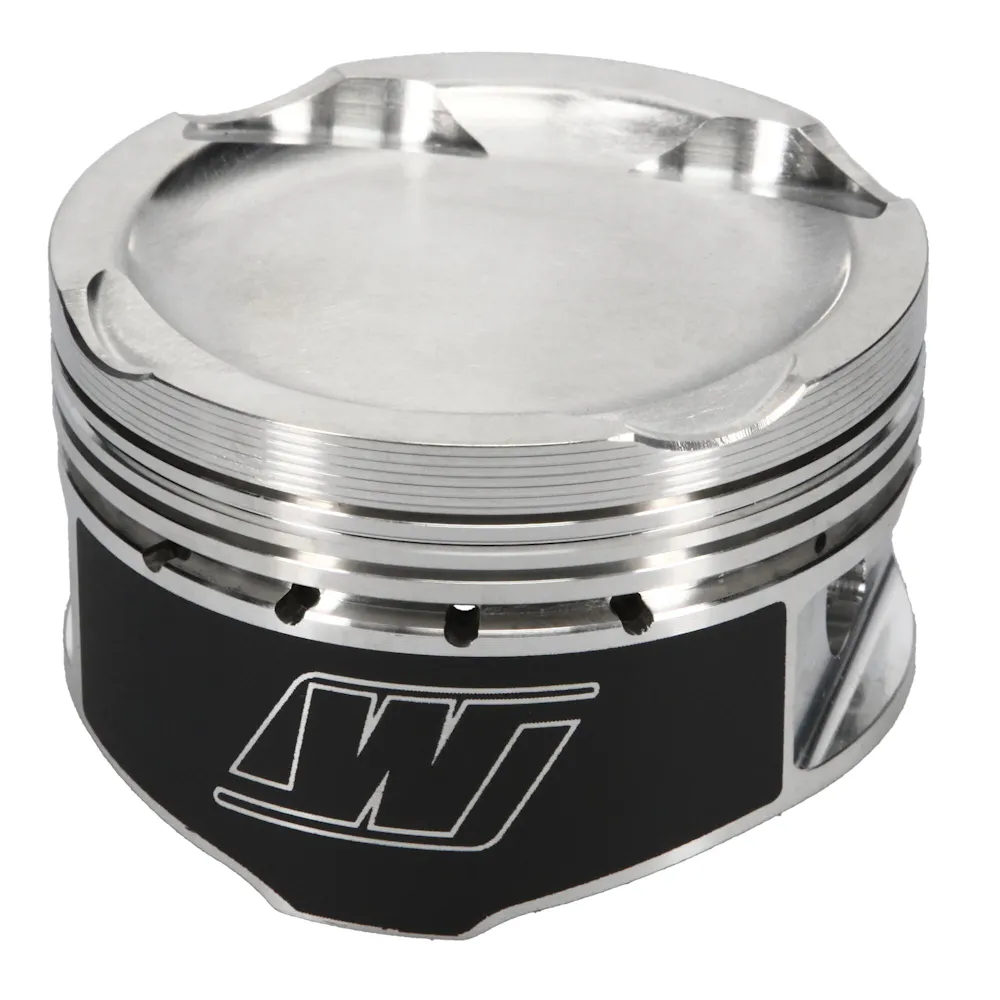

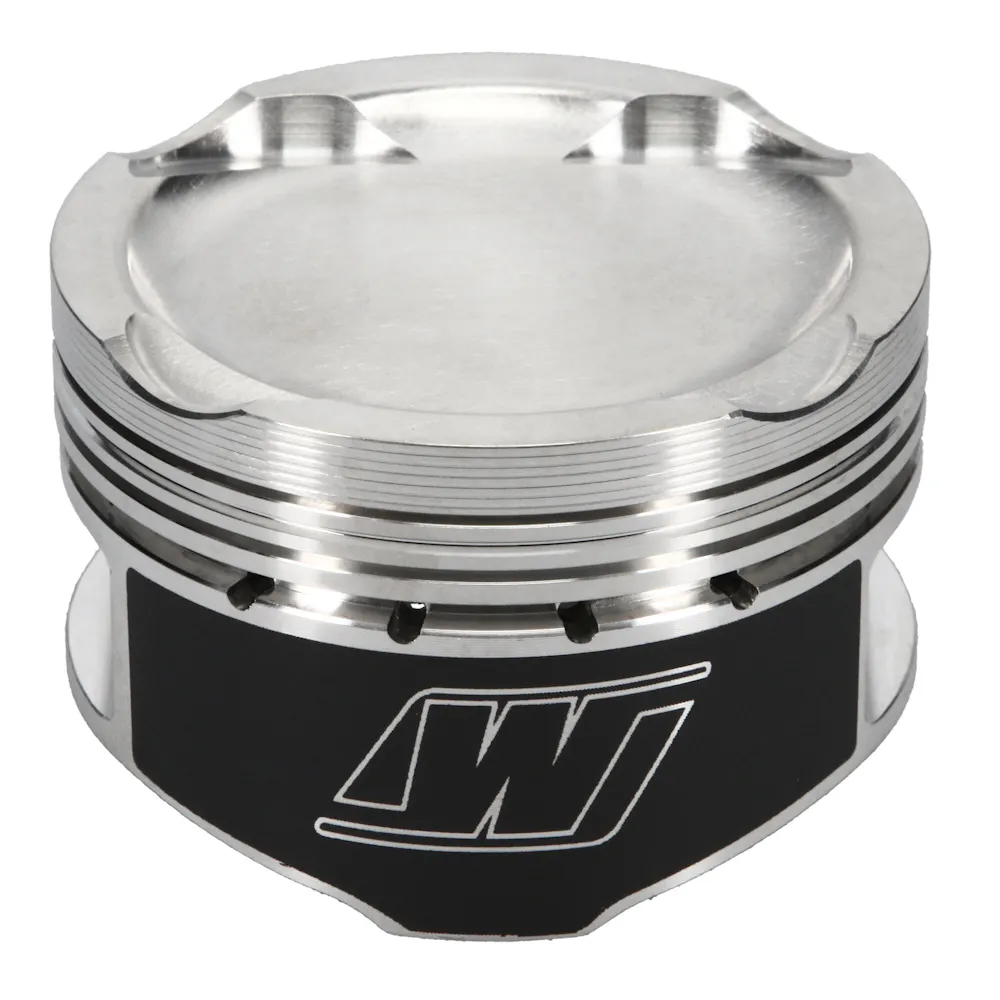

Description: Piston, Mazda, FS, 83.00 mm Bore, Sport Compact, Set of 1; Wiseco Mazda FS Piston, 83.00 mm Bore, 1.175 in. Compression Height, 0.748 in. Pin Diameter, Sport Compact, Set of 1.
Description:
Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.
Features & benefits
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
- Forced pin oiling
- Designed and built to withstand heavy to severe duty performance applications
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
Specifications
- GTIN
- 00193564173294
- Weight
- 1 lb
- Height
- 4.2 in
- Length
- 4.7 in
- Width
- 4.7 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- WPP
- Warehouse brand code
- BJKF
- AAIA brand code
- BJKF
Attributes
- Bore Diameter
- 83
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Auto>Pistons>Individual Pistons>Sport Compact
- Compression Height
- 1.175
- EBAY Category ID
- 33623
- Engine
- FS
- Engine - Web
- FS
- Engine Type
- ICE
- Forging Type
- FLAT
- Industry
- Automotive
- Make
- Mazda
- Make - Web
- Mazda
- Oil Ring Thickness
- 3
- Out of Stock Message
- Call for Availability
- Piston Material
- 2618
- Piston Pin Included
- Yes
- Piston Pin Material
- 5115
- Piston Quantity
- 1
- Piston Volume
- -16.50
- Product Market
- Sport Compact
- Product Series
- Sport Compact
- Product Type
- Individual Pistons
- Ring Set Included
- Yes
- Ringset Included
- Yes
- Second Compression Ring Thickness
- 1.2
- Skirt Coating
- Yes
- Title
- Wiseco - Mazda, FS, 83.00 mm Bore, Piston
- Title - Web
- Professional Mazda FS Piston - 83.00 mm Bore - 1.175 .in CH, -16.50 CC
- Top Compression Ring Thickness
- 1
- Wrist Pin Diameter
- 0.748
- Wrist Pin Included
- Yes
- Wrist Pin Material
- 5115
- Wrist Pin Outer Diameter
- 0.748
- Wrist Pin Style
- Floating
Fitment status
This product is universal and will fit your application.
Application summary
Mazda 2.0L FS
