Westin Automotive / 46-24025
Part #: 46-24025
UPC: 707742097984
Loading...
Notify me when this item is in stock.

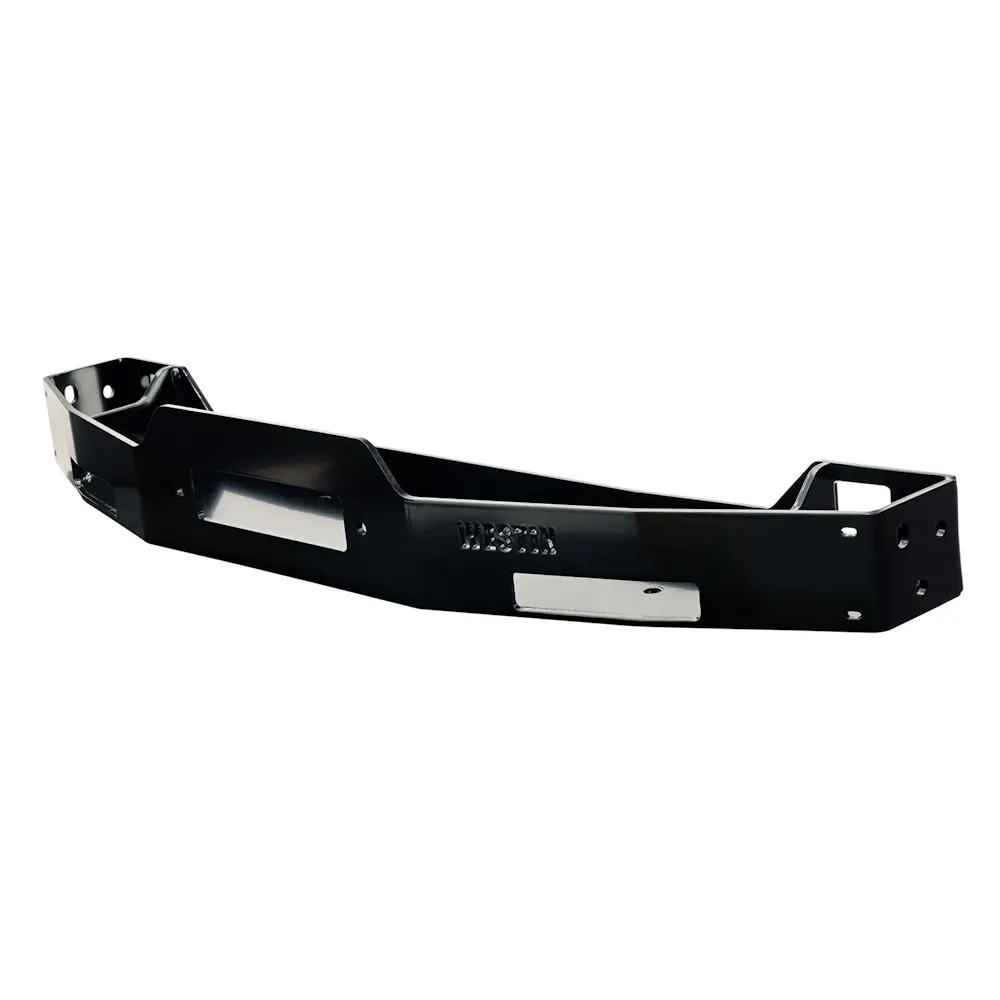

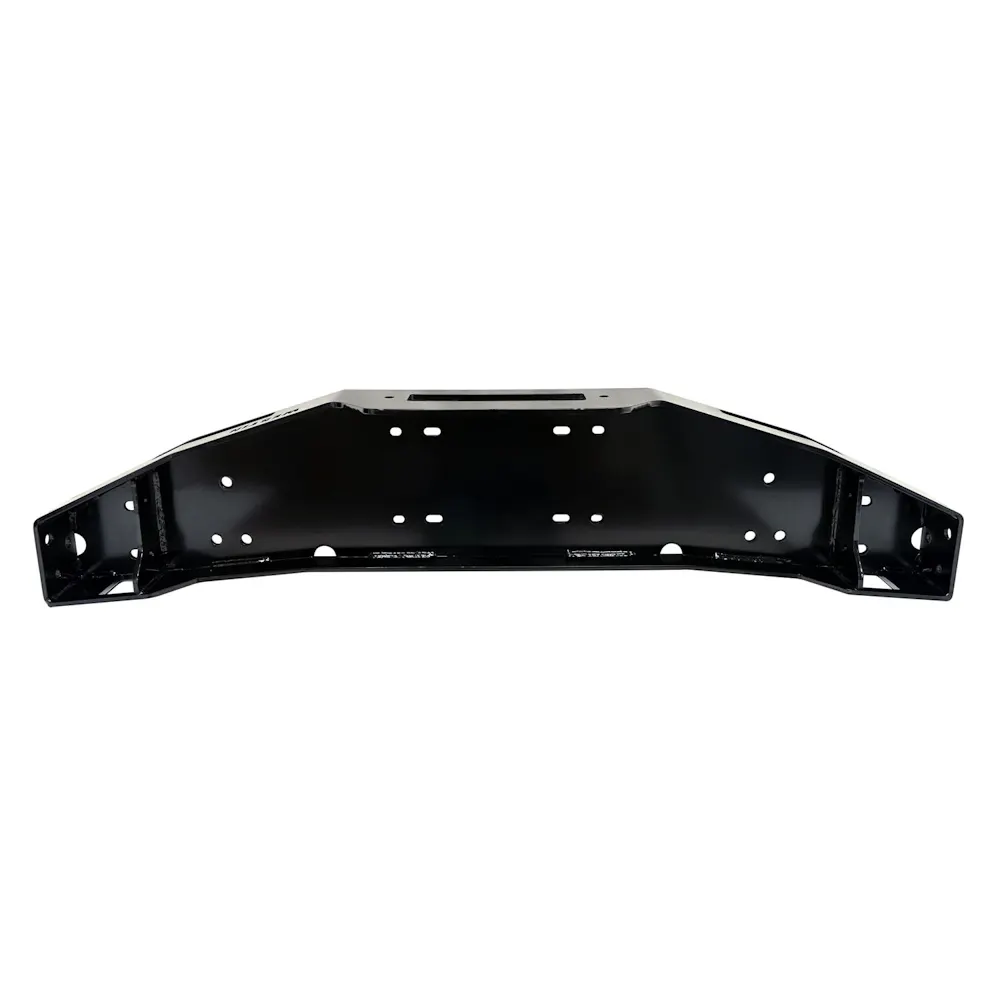

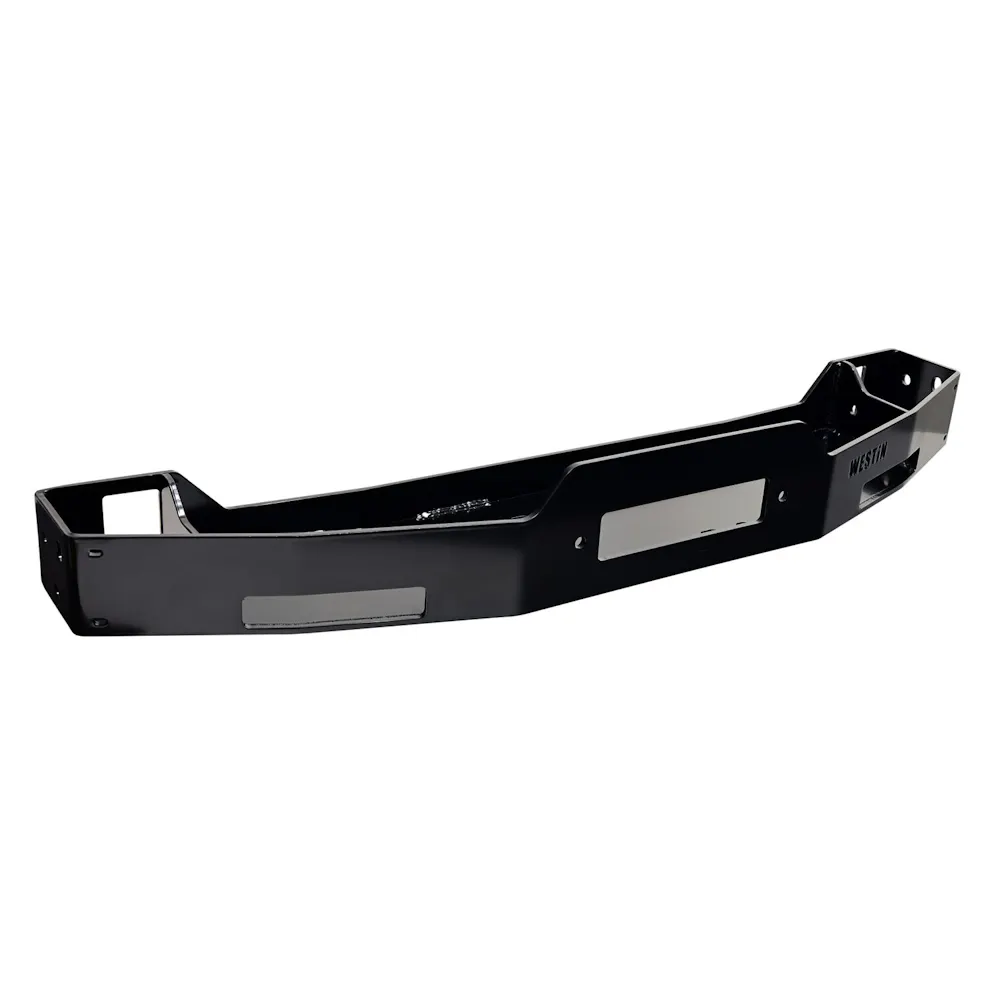

Description: MAX Winch Tray; Black;
Description:
Description
Mounts directly to frame. Max grill guards bolt directly to the tray. Accommodates up to 12000 pound winches. No drill installation.
Features & benefits
- HD brackets mount directly to vehicle frame
- Winch tray tested to a maximum straight line pull of 16,500 lbs
- Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall
- Pre-drilled for quick mounting of hawse or roller fairlead
- Optional MAX Bull Bar/Light Bar
- Optional MAX Faceplate
- Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)
Information
Mounts Directly To Frame
Application summary
| Year | Make / model |
|---|---|
| 2019-2024 | Ram 2500 |
| 2019-2024 | Ram 3500 |
Specifications
- GTIN
- 00707742097984
- Weight
- 88 lb
- Height
- 8.07 in
- Length
- 46.06 in
- Width
- 12.99 in
- Life cycle
- Available to Order
- AAM brand code
- WES
- Warehouse brand code
- WES
- AAIA brand code
- BCTC
Attributes
- AMZ Title
- Westin 46-24025 MAX Winch Tray fits 2019-2024 Ram 2500 3500 (Exclude Power Wagon)
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Can Ship By Ground Delivery
- Yes
- Color
- Black
- Finish
- Powder Coated
- Finish/Color
- Black
- Freight Class
- 60
- Length
- 46.060
- Marketing Status
- Current
- Material
- Steel
- Straight Line Pull Capacity (lbs.)
- 16,500
- Title
- Westin MAX Winch Tray 46-24025
- Width
- 12.990
- Winch Depth (in.)
- 6.75
- eBay Title
- Westin 46-24025 MAX Winch Tray fits 19-24 Ram 2500 3500 (Exc Power Wagon)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2019-2024 Ram 2500; 2019-2024 Ram 3500
