Weigh Safe / LTB6-2.5-KA

Part #: LTB6-2.5-KA
UPC: 653863202564

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Weigh Safe Series: Weigh Safe 180 Ball Mounts

Description: 180 Hitch 6 Drop Hitch w/ 2.5 Shank (10K/18.5K GTWR) w/ WS05; 180 Hitch - Adjustable Drop Hitch w/ 6 Drop & 2.5 Shank + Stainless Steel Combo Balls (2 & 2 5/16) - 18,500 lbs GTW with Keyed-Alike Hitch Locking Pin

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

The Weigh Safe Drop Hitch is the one and only trailer hitch with a built-in scale that signals you to adjust your load before you hit the road, resulting in a much safer and enjoyable towing experience. Before this ball mount, gauging your trailer's tongue weight was a hassle. You had to rely on inefficient bathroom scales, make a trip to the weigh station, or purchase a separate tongue weight scale. But with the Weigh Safe's built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount. Simply hook-up your trailer to the Weigh Safe ball mount just as you would any other ball mount. The weight of your trailer will push down on the hitch ball, which in turn pushes down on an internal hydraulic piston that sits on a bed of oil. When the piston drops into the oil, the pressure reading is sent out to the scale.

Features & benefits

Efficient and hassle-free-eliminates the need for separate or commercial scales

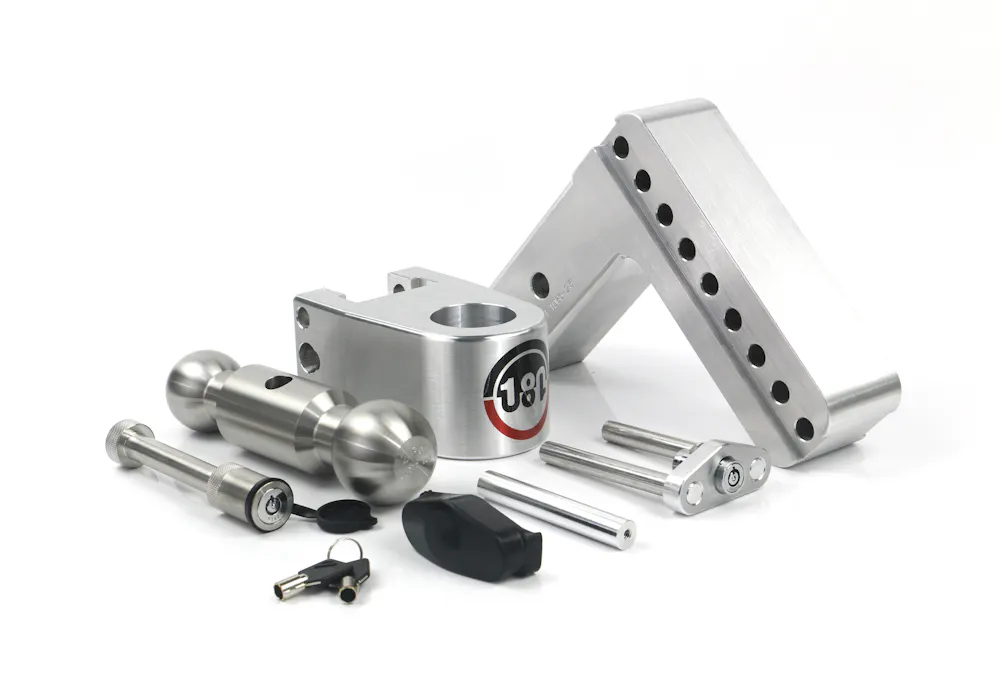

Includes:Drawbar, 180 Slider, Key Lock Assembly, Combo Ball, Ball Retaining Pin, Dust Lock Cover and Keyed Alike Hitch Locking Pin (5/8 dia. 3-1/2 length for 2, 2.5 & 3 Receivers).
6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
Solid block construction provides greater strength than hollow steel competitors while also maintaining a light weight
Rustproof for a clean finish that stands the test of time
6 Drop 6061 T6 billet aluminum 2.5 Shank and mounting platform provide superior strength and durability
2 & 2-5/16 Chrome-Plated Steel Ball Combo
2 ball: 8,000 lbs GTW & 2-5/16 ball: 18,500 lbs GTW
MAX Tongue Weight 2,200 lbs (2.5 Shank)
V5 & J684 Certified

Information

The 180 Hitch is made by Weigh Safe with aircraft-grade aluminum, cold-rolled steel, and stainless steel combo ball.

Specifications

GTIN: 00653863202564
Weight: 19 lb
Height: 4.25 in
Length: 14 in
Width: 9.25 in
Life cycle: Available to Order
AAM brand code: WSF
Warehouse brand code: WHS
AAIA brand code: HDKJ

Attributes

Attachment Location: Receiver
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Caregory: Aluminum Adjustable Ball Mount
Color: Silver
Drilling Required: No
Drop Length: 6" Drop Hitch
Finish: Brushed Aluminum
Gross Towing Weight: 18500
Hitch Class: V
Length: Same as Drop Length
Material: 60/61 t6 Aluminum/ Stainless Steel
Maximum Tongue Weight: 2200
Mounting Hardware Included: NA
Mounting Type: Receiver
Product Line: 180 Stainless Steel Turnover Ball
Receiver Included: No
Receiver Size: 2.5"
Title: 180 Hitch Stainless Steel Ball 6" Drop Hitch with 2.5" Shank Keyed Alike WS05 Included
