Weigh Safe / LTB10-3
Part #: LTB10-3
UPC: 653863202229
Loading...
Notify me when this item is in stock.
Description: 180 Hitch 10 Drop Hitch w/ 3 Shank (10K/21K GTWR); 180 Hitch - Adjustable Drop Hitch w/ 10 Drop & 3 Shank + Stainless Steel Combo Balls (2 & 2 5/16) - 21,000 lbs GTW
Description:
Description
The Weigh Safe Drop Hitch is the one and only trailer hitch with a built-in scale that signals you to adjust your load before you hit the road, resulting in a much safer and enjoyable towing experience. Before this ball mount, gauging your trailer's tongue weight was a hassle. You had to rely on inefficient bathroom scales, make a trip to the weigh station, or purchase a separate tongue weight scale. But with the Weigh Safe's built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount. Simply hook-up your trailer to the Weigh Safe ball mount just as you would any other ball mount. The weight of your trailer will push down on the hitch ball, which in turn pushes down on an internal hydraulic piston that sits on a bed of oil. When the piston drops into the oil, the pressure reading is sent out to the scale.
Features & benefits
- Efficient and hassle-free-eliminates the need for separate or commercial scales

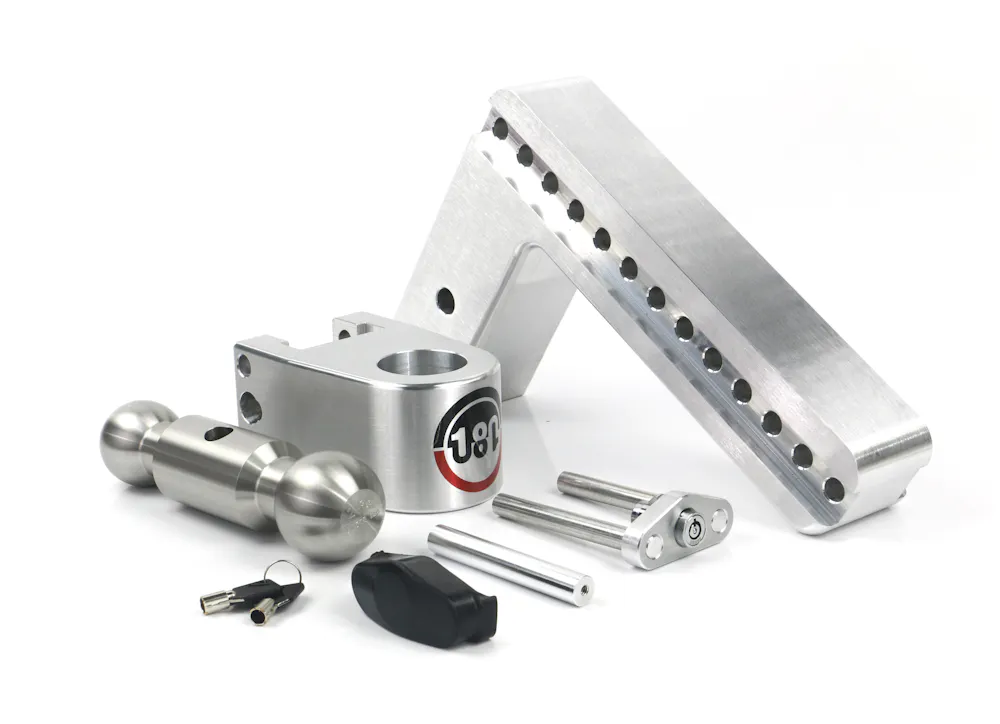

- Includes:Drawbar, 180 Slider, Key Lock Assembly, Combo Ball, Ball Retaining Pin, and Dust Lock Cover.
- 6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
- Solid block construction provides greater strength than hollow steel competitors while also maintaining a light weight
- Rustproof for a clean finish that stands the test of time
- 10 Drop 6061 T6 billet aluminum 3 Shank and mounting platform provide superior strength and durability
- 2 & 2-5/16 Stainless Steel Ball Combo
- 2 ball: 8,000 lbs GTW & 2-5/16 ball: 21,000 lbs GTW
- MAX Tongue Weight 2,200 lbs (2.5 & 3 Shank)
- V5 & J684 Certified
Information
The 180 Hitch is made by Weigh Safe with aircraft-grade aluminum, cold-rolled steel, and stainless steel combo ball.
Specifications
- GTIN
- 00653863202229
- Weight
- 22 lb
- Height
- 4.25 in
- Length
- 14 in
- Width
- 9.25 in
- Life cycle
- Available to Order
- AAM brand code
- WSF
- Warehouse brand code
- WHS
- AAIA brand code
- HDKJ
Attributes
- Attachment Location
- Receiver
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Caregory
- Aluminum Adjustable Ball Mount
- Color
- Silver
- Drilling Required
- No
- Drop Length
- 10" Drop Hitch
- Finish
- Brushed Aluminum
- Gross Towing Weight
- 21000
- Hitch Class
- V
- Length
- Same as Drop Length
- Material
- 60/61 t6 Aluminum/ Stainless Steel
- Maximum Tongue Weight
- 2200
- Mounting Hardware Included
- NA
- Mounting Type
- Receiver
- Product Line
- 180 Stainless Steel Turnover Ball
- Receiver Included
- No
- Receiver Size
- 3"
- Title
- 180 Hitch Stainless Steel Ball 10" Drop Hitch with 3" Shank
Fitment status
This product is universal and will fit your application.
Application summary
Applies to all Towing vehicles, Please see vehicle for towing capacity
Weigh Safe LTB10-3
