WARN · 95960
Part #: 95960
UPC: 012748959601
Loading...
Notify me when this item is in stock.

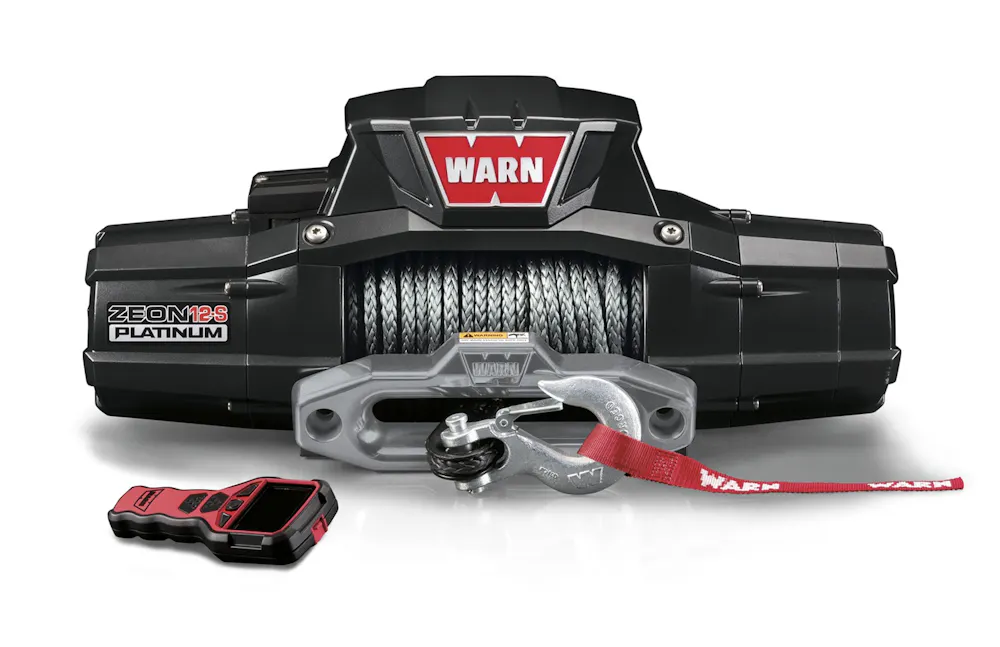

Description: WARN WINCH_ZEON PLATINUM_12K-S; Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; Two 16 amp Accessory Ports; 12000 Pound Line Pull Capacity; 80 Foot Spydura Synthetic Rope; Hawse Fairlead; Wireless Remote; Convertible Control Pack; Planetary Gear Drive
Description:
Description
The ZEON Platinum is the future of winching with state-of-the-art features, cutting-edge technology, and world-class engineering. The one-of-a-kind Advanced Wireless Remote controls the clutch, power in/power out, plus it displays motor temperature and vehicle battery info. It also can control two 12-volt accessories, which can be plugged directly into the winch.
Features & benefits
- High-speed motor and unique gear train provides 33% faster line speed than the ZEON, and increased durability
- Plug two 12V accessories directly into the winch and control with remote, no drilling through the firewall
- Advanced Wireless Remote operates the winch's clutch, 12-volt accessories, and power-in- and power-out functions. Also provides vehicle battery info and motor temperature details.
- Full IP68 waterproofing keeps water and the elements out
- Includes 80' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope and a large-radius polished aluminum hawse fairlead
- Large diameter drum reduces rope wear, dissipates brake heat, and features a unique rope anchor system for strength
- Convertible control pack for upright or low-profile mounting options
- Best-in-class cone brake; holds the winch's full-rated load
- Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
Information
Equipped with polished aluminum fairlead and easy-to-handle Spydura synthetic rope
Application summary
| Year | Make / model |
|---|---|
| 2014-2018 | Chevrolet Silverado 1500 |
| 2019 | Chevrolet Silverado 1500 LD |
| 2015-2019 | Chevrolet Silverado 2500 HD |
| 2015-2019 | Chevrolet Silverado 3500 HD |
| 2015-2020 | Ford F-150 |
| 2011-2019 | Ford F-250 Super Duty |
| 2011-2019 | Ford F-350 Super Duty |
| 2019-2021 | Ford Ranger |
| 2020-2021 | Jeep Gladiator |
| 2007-2021 | Jeep Wrangler |
| 2018 | Jeep Wrangler JK |
| 2013-2018 | Ram 1500 |
| 2019-2021 | Ram 1500 Classic |
| 2011-2019 | Ram 2500 |
| 2011-2019 | Ram 3500 |
| 2016-2021 | Toyota Tacoma |
Specifications
- GTIN
- 00012748959601
- Weight
- 81 lb
- Height
- 9 in
- Length
- 27 in
- Width
- 19 in
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Type
- Mechanical Cone
- Cable Length
- 80
- Cable Material
- Synthetic Rope
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Black
- Drive Gear Type
- Planetary
- Electrical Control Type
- Solenoid
- Fairlead Type
- Hawse
- Free Spooling
- Yes
- Gear Reduction Ratio
- 162:1
- Line Diameter (IN)
- 3/8 Inch
- Line Length (FT)
- 80 Feet
- Line Material
- Synthetic
- Max Amp Draw/ Line Pull
- 469 Amp Draw/ 12000 Pound
- Max Line Pull/ Line Speed
- 12000 Pound/ 3.3 Feet Per Minute
- Motor Type
- Series Wound
- Motor Voltage
- 12
- Mount Type
- Fixed Mount
- Operation Type
- Automatic
- Rated Line Pull
- 12000
- Rated Single Line Pull (lbs.)
- 12000
- Recommended Use
- Vehicle Recovery
- Requires Mount
- Yes
- Thermal Shutoff
- No
- Title
- WARN
- Type
- Electric
- Voltage
- 12 Volt
- With Light Mounts
- 12000lbs
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2014-2018 Chevrolet Silverado 1500; 2019 Chevrolet Silverado 1500 LD; 2015-2019 Chevrolet Silverado 2500 HD; 2015-2019 Chevrolet Silverado 3500 HD; 2015-2020 Ford F-150; 2011-2019 Ford F-250 Super Duty; 2011-2019 Ford F-350 Super Duty; 2019-2021 Ford Ranger; 2020-2021 Jeep Gladiator; 2007-2021 Jeep Wrangler; 2018 Jeep Wrangler JK; 2013-2018 Ram 1500; 2019-2021 Ram 1500 Classic; 2011-2019 Ram 2500; 2011-2019 Ram 3500; 2016-2021 Toyota Tacoma
