WARN · 95950
Part #: 95950
UPC: 012748959502
Loading...
Notify me when this item is in stock.

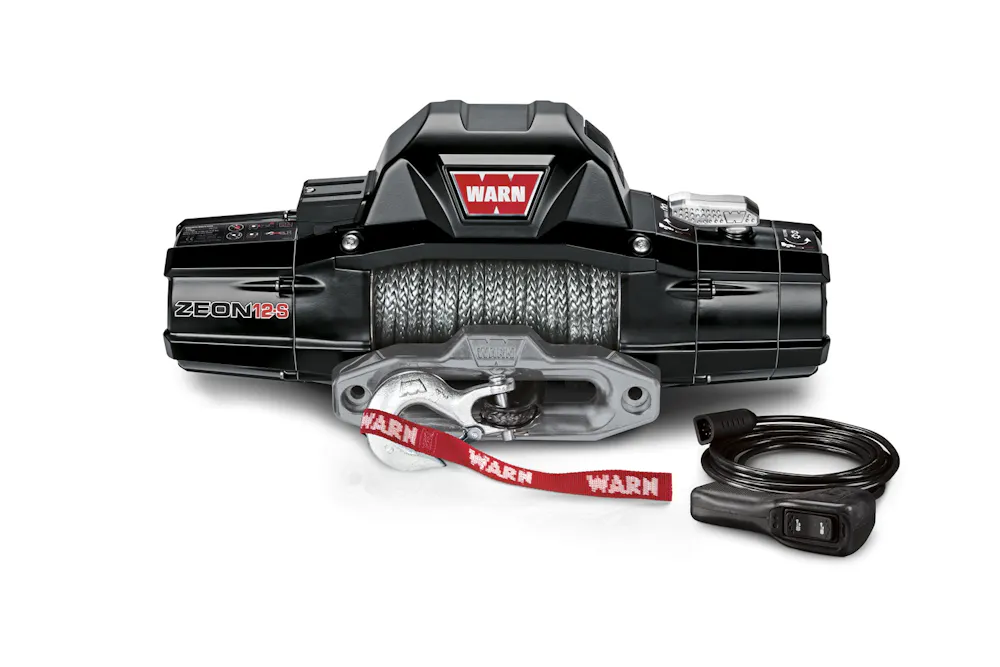

Description: WARN ZEON 12-S SYNTHETIC; Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 12000 Pound Line Pull Capacity; 80 Foot Spydura Synthetic Rope; Hawse Fairlead; Wired Remote; Convertible Control Pack; Planetary Gear Drive; Requires Winch Carrier or Winch Mount
Description:
Description
The 12,000 lb. capacity ZEON 12-S is great for full-size 3/4-ton and 1-ton trucks and built 4x4s, and offers premium components and performance that continues to be the go-to winch for off-roaders worldwide. These premium winches offer IP68 waterproofing, efficient electrical systems, powerful motors, and fast lines speed among a host of other word-class features. Plus, they're designed, engineered, and assembled in the USA.
Features & benefits
- Automotive-grade busbars replace unsightly wires for greater electrical efficiency, superior connection, and a cleaner look
- Full metal armor protects vital components from impact and damage
- Twice the corrosion resistance of entry-level winches; rated to 408 hours in rigorous salt-spray tests
- Fast no-load line speed, up to 22% faster than our Standard Duty winches
- Includes 100' of lightweight, easy-to-handle 3/8" Spydura synthetic rope and a large-radius polished aluminum hawse fairlead
- Full IP68 waterproofing to keep water and the elements out
- Large diameter drum for longer rope life; unique and durable rope attachment point
- Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
Information
Equipped with polished aluminum fairlead and Spydura synthetic rope
Application summary
| Year | Make / model |
|---|---|
| 2014-2018 | Chevrolet Silverado 1500 |
| 2019 | Chevrolet Silverado 1500 LD |
| 2015-2019 | Chevrolet Silverado 2500 HD |
| 2015-2019 | Chevrolet Silverado 3500 HD |
| 2015-2020 | Ford F-150 |
| 2011-2019 | Ford F-250 Super Duty |
| 2011-2019 | Ford F-350 Super Duty |
| 2019-2021 | Ford Ranger |
| 2020-2021 | Jeep Gladiator |
| 2007-2021 | Jeep Wrangler |
| 2018 | Jeep Wrangler JK |
| 2013-2018 | Ram 1500 |
| 2019-2021 | Ram 1500 Classic |
| 2011-2019 | Ram 2500 |
| 2011-2019 | Ram 3500 |
| 2016-2021 | Toyota Tacoma |
Specifications
- GTIN
- 00012748959502
- Weight
- 85.5 lb
- Height
- 19 in
- Length
- 27.5 in
- Width
- 8.5 in
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Type
- Mechanical Cone
- Cable Length
- 80
- Cable Material
- Synthetic Rope
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Black
- Drive Gear Type
- Planetary
- Electrical Control Type
- Solenoid
- Fairlead Type
- Hawse
- Free Spooling
- Yes
- Gear Reduction Ratio
- 216:1
- Line Diameter (IN)
- 3/8 Inch
- Line Length (FT)
- 80 Feet
- Line Material
- Synthetic
- Max Amp Draw/ Line Pull
- 469 Amp Draw/ 12000 Pound
- Max Line Pull/ Line Speed
- 12000 Pound/ 3.3 Feet Per Minute
- Motor Type
- Series Wound
- Motor Voltage
- 12
- Mount Type
- Fixed Mount
- Operation Type
- Automatic
- Rated Line Pull
- 12000
- Rated Single Line Pull (lbs.)
- 12000
- Recommended Use
- Vehicle Recovery
- Requires Mount
- Yes
- Thermal Shutoff
- No
- Title
- WARN
- Type
- Electric
- Voltage
- 12 Volt
- With Light Mounts
- 12000lbs
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2014-2018 Chevrolet Silverado 1500; 2019 Chevrolet Silverado 1500 LD; 2015-2019 Chevrolet Silverado 2500 HD; 2015-2019 Chevrolet Silverado 3500 HD; 2015-2020 Ford F-150; 2011-2019 Ford F-250 Super Duty; 2011-2019 Ford F-350 Super Duty; 2019-2021 Ford Ranger; 2020-2021 Jeep Gladiator; 2007-2021 Jeep Wrangler; 2018 Jeep Wrangler JK; 2013-2018 Ram 1500; 2019-2021 Ram 1500 Classic; 2011-2019 Ram 2500; 2011-2019 Ram 3500; 2016-2021 Toyota Tacoma
