WARN / 85252
Part #: 85252
UPC: 012748852520
Loading...
Notify me when this item is in stock.
Description: This 24-volt electric hoist has a powerful 3,000 lb. lifting capacity. It's sold without rope, fairlead, or remote. It has a 19:1 gear reduction and an automatic load-holding disc brake making it a performance standout.
Description:
Description
The DC3000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC3000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
Features & benefits
- The DC3000 hoist combines a powerful series wound DC motor with robust sealing
- Powerful series-wound DC motor with robust sealing
- Proven three-stage planetary gear train with 19:1 gear reduction
- Permanent grease lubrication means years of trouble-free service
- Automatic disc brake holds the hoist's full rated load
- Robust large frame design with a cast aluminum drum for plenty of rope capacity
- Limited 1 Year Warranty
Specifications
- GTIN
- 00012748852520
- Weight
- 77 lb
- Height
- 13 in
- Length
- 28 in
- Width
- 11 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Cable Material
- No rope included
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- N/A
- Line Speed At Max Pull
- 14.9 Feet Per Minute At 3000 Pound
- Max Amp Draw
- 120 Amp Draw At 3000 Pound
- Motor Capacity
- N/A
- Motor Type
- Series Wound
- Motor Voltage
- 24V
- Mount Type
- Fixed Mount
- Operation Type
- Electrical
- Rated Line Pull
- 3000
- Rated Single Line Pull (lbs.)
- 3000
- Recommended Use
- Industrial
- Title
- HOIST
- Type
- Electric
- Voltage
- 24 Volt
- Winch Rating
- N/A
Fitment status
This product is universal and will fit your application.

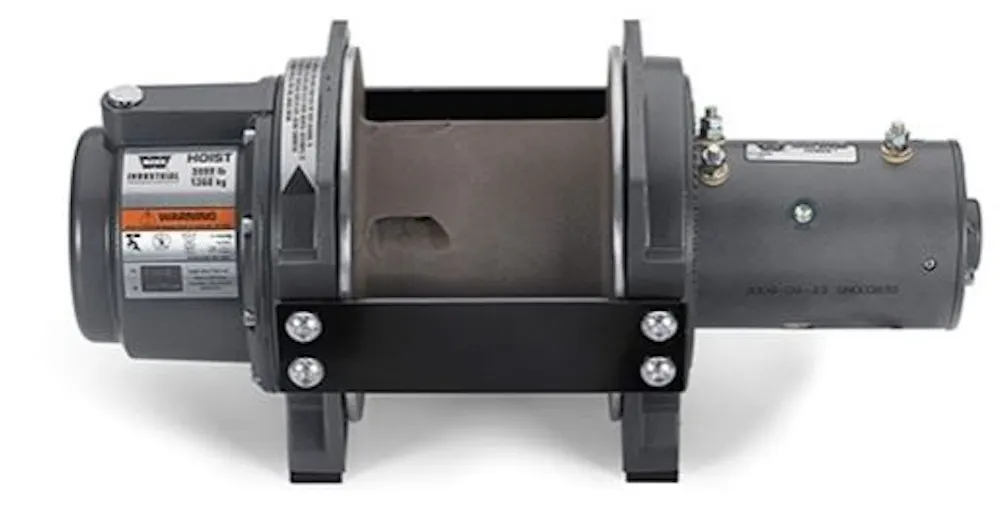

WARN 85252
