WARN / 82710
Part #: 82710
UPC: 012748827108
Loading...
Notify me when this item is in stock.
Description: Series 30XL Long Drum Air Clutch 2-Speed; Vehicle Mounted; Industrial Winch; Low Pressure 2-Spd Hydraulic; Long Drum; Air Clutch; 30000 Pound Line Pull Capacity; Without Wire; Without Fairlead; Planetary Gear Drive
Description:
Description
Whether you’re winching heavier vehicles onto your flat bed, or hauling wrecks out of ditches, WARN Series XL Winches rise to the top. They form the core of the hydraulic winch line, with long duty cycles, long or short drum specs, hardened aircraft grade nickel chromoly two-stage planetary geartrains and big-time capacity: up to 30,000 lbs.
Features & benefits
- For hydraulic winching applications, no product performs better than a Warn Industrial winch.
- 12V solenoid on the winch manifold shifts the winch from high-speed to low-speed
- Spring-Applied Disc Brake Designed To Hold The Full-Rated Load
- Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
- Standard Air Clutch With Manual Clutch Option
- Meets SAE J706 And CE Specifications
- Limited lifetime warranty for mechanical components and five (5) year warranty on electrical components
Application summary
| Year | Make / model |
|---|---|
| 2016 | Arctic Cat Alterra 400 |
| 2016 | Honda SXS1000M3 Pioneer 1000 |
| 2016 | Honda SXS1000M3 Pioneer 1000 EPS |
| 2016 | Honda SXS1000M5 Pioneer 1000-5 |
| 2016 | Honda SXS1000M5 Pioneer 1000-5 Deluxe |
| 2005-2016 | Kawasaki KAF400 Mule 610 4x4 |
| 2016 | Kawasaki KAF400 Mule 610 4x4 SE |
| 2010-2016 | Kawasaki KAF400 Mule 610 4x4 XC |
| 2014-2016 | Kawasaki KAF400 Mule 610 4x4 XC SE |
| 2015-2016 | Kawasaki KAF820 Mule PRO-FXT |
| 2016 | Yamaha YFM700K Kodiak |
| 2016 | Yamaha YFM700K Kodiak EPS |
| 2016 | Yamaha YFM700K Kodiak EPS SE |
| 2016 | Yamaha YXE70 Wolverine |
| 2016 | Yamaha YXE70 Wolverine R-Spec |
| 2016 | Yamaha YXE70 Wolverine R-Spec EPS |
Specifications
- GTIN
- 00012748827108
- Weight
- 301 lb
- Height
- 15 in
- Length
- 37 in
- Width
- 16 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Activation
- Automatic
- Brake Type
- Disc
- Cable Length
- N/A
- Cable Material
- Not Included
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Clutch Type
- Air
- Drum Length
- 14
- Electrical Control Type
- Not Applicable
- Fairlead Type
- Not Included
- Gear Ratio
- N/A
- Line Speed At Max Pull
- 18.4 Feet Per Minute At 30000 Pound
- Motor Capacity
- N/A
- Motor Horsepower
- Not Applicable
- Motor Type
- Hydraulic
- Motor Voltage
- N/A
- Mount Type
- Vehicle Mounted
- Rated Line Pull
- 30000
- Rated Single Line Pull (lbs.)
- 30000
- Recommended Use
- 2-Speed Industrial
- Rotation
- Bi-directional
- Standards Compliance
- Meets SAE J706 and CE specifications
- Type
- Hydraulic
- Voltage
- Not Applicable
- Winch Rating
- 30000 Pound
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2016 Arctic Cat Alterra 400; 2016 Honda SXS1000M3 Pioneer 1000; 2016 Honda SXS1000M3 Pioneer 1000 EPS; 2016 Honda SXS1000M5 Pioneer 1000-5; 2016 Honda SXS1000M5 Pioneer 1000-5 Deluxe; 2005-2016 Kawasaki KAF400 Mule 610 4x4; 2016 Kawasaki KAF400 Mule 610 4x4 SE; 2010-2016 Kawasaki KAF400 Mule 610 4x4 XC; 2014-2016 Kawasaki KAF400 Mule 610 4x4 XC SE; 2015-2016 Kawasaki KAF820 Mule PRO-FXT; 2016 Yamaha YFM700K Kodiak; 2016 Yamaha YFM700K Kodiak EPS; 2016 Yamaha YFM700K Kodiak EPS SE; 2016 Yamaha YXE70 Wolverine; 2016 Yamaha YXE70 Wolverine R-Spec; 2016 Yamaha YXE70 Wolverine R-Spec EPS
Resources

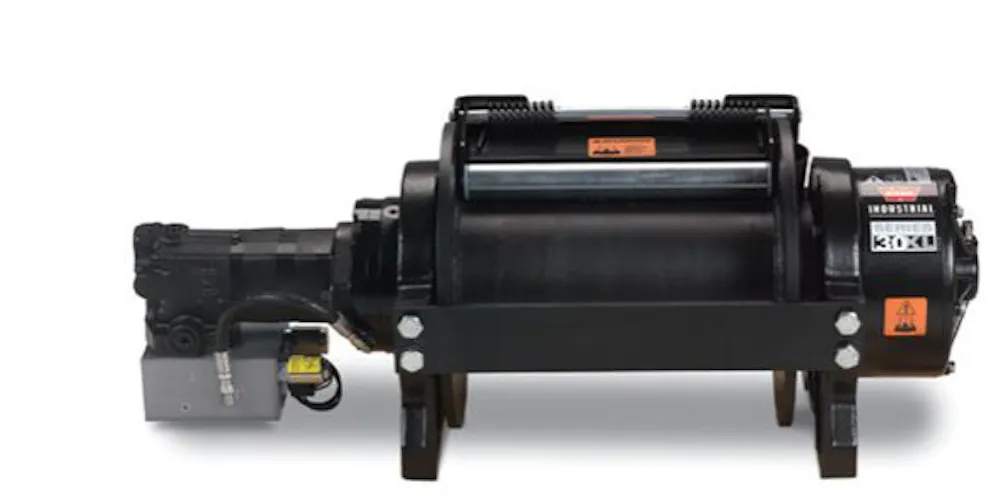

WARN 82710
