WARN / 80010
Part #: 80010
UPC: 012748800101
Loading...
Notify me when this item is in stock.

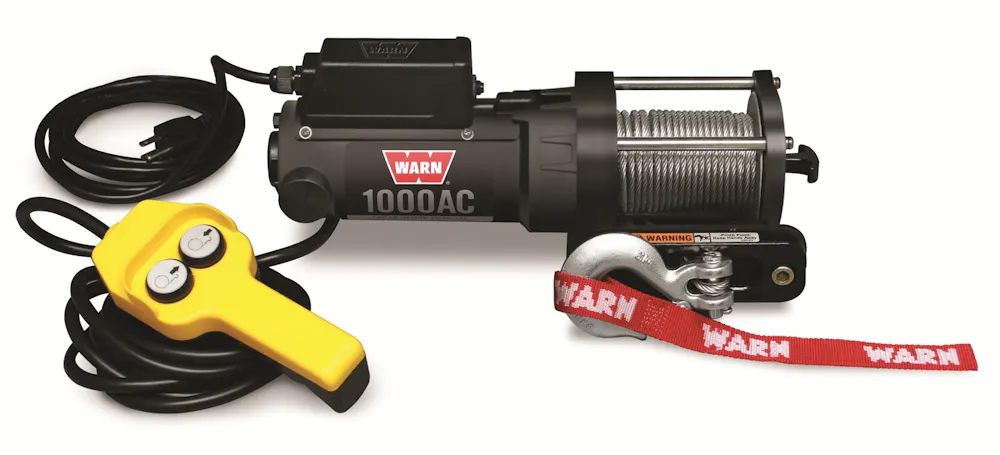

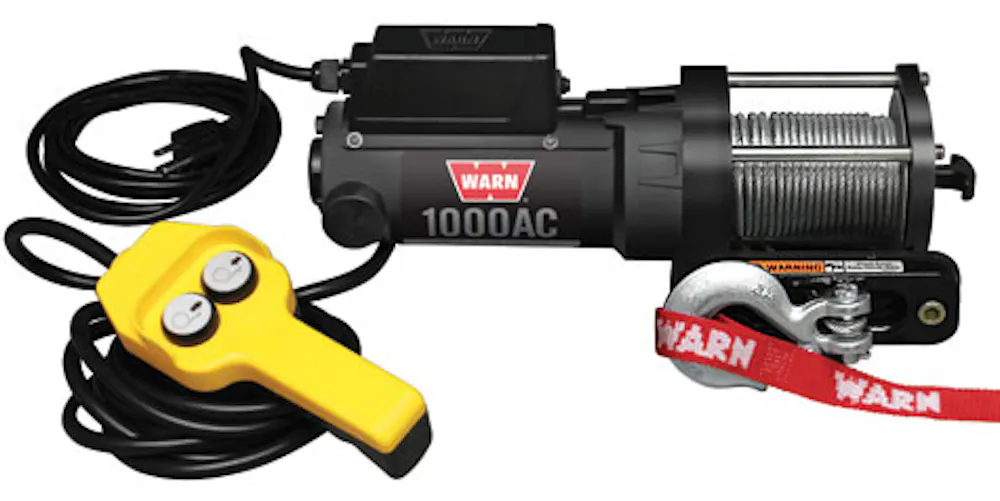

Description: WINCH ASSY 1000LB AC; WARN 1000 AC utility winch delivers 1,000 lbs. of pulling capacity. The winch also includes 43’ of wire rope, has a long duty cycle, and legendary WARN durability.
Description:
Description
Warn utility products: work smarter, not harder. Unfortunately, there's more to life than fishing and hunting and 4-wheeling on the weekends. That's why we make products that save time and labor, making it possible for one to do the work of two, or more. At Warn Industries we work hard so our customers can work smart.
Features & benefits
- Ideal for use anywhere 120-Volt AC power is available, the WARN 1000 AC winch delivers 1,000 lbs. of pulling capacity
- Powerful AC motor has a long duty cycle for extended pulling
- Includes 43' of durable 3/16" wire rope, hook, and a hawse fairlead
- Limited 1 Year Warranty
Specifications
- GTIN
- 00012748800101
- Weight
- 27.5 lb
- Height
- 8 in
- Length
- 11 in
- Width
- 18.75 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Type
- Self Braking Transmission
- Cable Length
- 43
- Cable Material
- Steel
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- N/A
- Conforms To J706 Standards
- No
- Drive Gear Type
- Differential Planetary
- Electrical Control Type
- Circuit Breaker Protected
- Fairlead Type
- Roller
- Free Spooling
- Yes
- Gear Reduction Ratio
- 261:1
- Line Diameter (IN)
- 3/16 Inch
- Line Length (FT)
- 43 Feet
- Line Material
- Steel
- Max Amp Draw/ Line Pull
- 6 Amp Draw/ 1000 Pound
- Max Line Pull/ Line Speed
- 1000 Pound/ 5.5 Feet Per Minute
- Motor Capacity
- N/A
- Motor Horsepower
- 0.8 Horsepower
- Motor Type
- Permanent Magnet
- Motor Voltage
- N/A
- Mount Type
- Portable
- Operation Type
- Electrical
- Portable Power Source
- AC Power
- Rated Line Pull
- 1000
- Rated Single Line Pull (lbs.)
- 1000
- Recommended Use
- Utility
- Thermal Shutoff
- No
- Title
- WINCH ASSY 1000LB AC
- Type
- Electric
- Voltage
- 120 Volt
- Winch Rating
- N/A
Fitment status
This product is universal and will fit your application.
