WARN / 77900
Part #: 77900
UPC: 012748779001
Loading...
Notify me when this item is in stock.
Description: Series 30XL Standard Drum Air Clutch; Vehicle Mounted; Industrial Winch; Hydraulic; Standard Drum; Air Clutch; 30000 Pound Line Pull Capacity; Without Wire; Without Fairlead; Planetary Gear Drive
Description:
Description
Whether you’re winching heavier vehicles onto your flat bed, or hauling wrecks out of ditches, WARN Series XL Winches rise to the top. They form the core of the hydraulic winch line, with long duty cycles, long or short drum specs, hardened aircraft grade nickel chromoly two-stage planetary geartrains and big-time capacity: up to 30,000 lbs.
Features & benefits
- For hydraulic winching applications, no product performs better than a Warn Industrial winch. P
- 12 Cubic Inch High Performance Motor With 30,000 Pounds Capacity, Great For Trailers, Roll Back
- Spring Applied Disc Brake Designed To Hold The Full Rated Load
- Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliabil
- Meets SAE J706 And CE Specifications
- Limited lifetime warranty for mechanical components and five (5) year warranty on electrical components
Specifications
- GTIN
- 00012748779001
- Weight
- 269 lb
- Height
- 14 in
- Length
- 29.5 in
- Width
- 15.5 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Activation
- Automatic
- Cable Length
- N/A
- Cable Material
- Not Included
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Clutch Type
- Air
- Color
- N/A
- Drum Length
- 8
- Electrical Control Type
- Not Applicable
- Fairlead Type
- Not Included
- Gear Ratio
- 36.0:1
- Line Speed At Max Pull
- 21.9 Feet Per Minute At 30000 Pound
- Motor Capacity
- 12.0
- Motor Horsepower
- Not Applicable
- Motor Type
- Hydraulic
- Motor Voltage
- N/A
- Mount Type
- Vehicle Mounted
- Rated Line Pull
- 30000
- Recommended Use
- Industrial
- Rotation
- Bi-directional
- Standards Compliance
- Meets SAE J706 and CE specifications
- Title
- SERIES WINCH
- Type
- Hydraulic
- Voltage
- Not Applicable
- Winch Rating
- N/A
Fitment status
This product is universal and will fit your application.
Resources

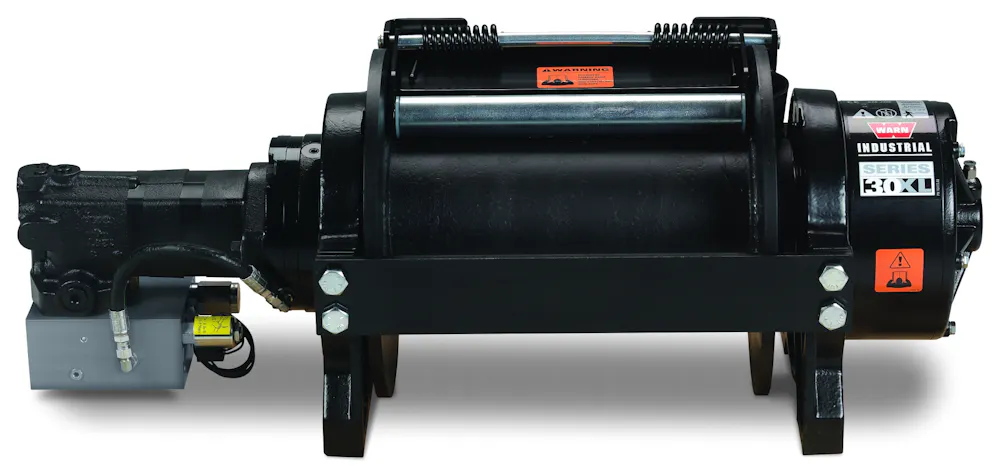

WARN 77900
