WARN · 71550
Part #: 71550
UPC: 012748715504
Log in for inventory
Notify me when this item is in stock.

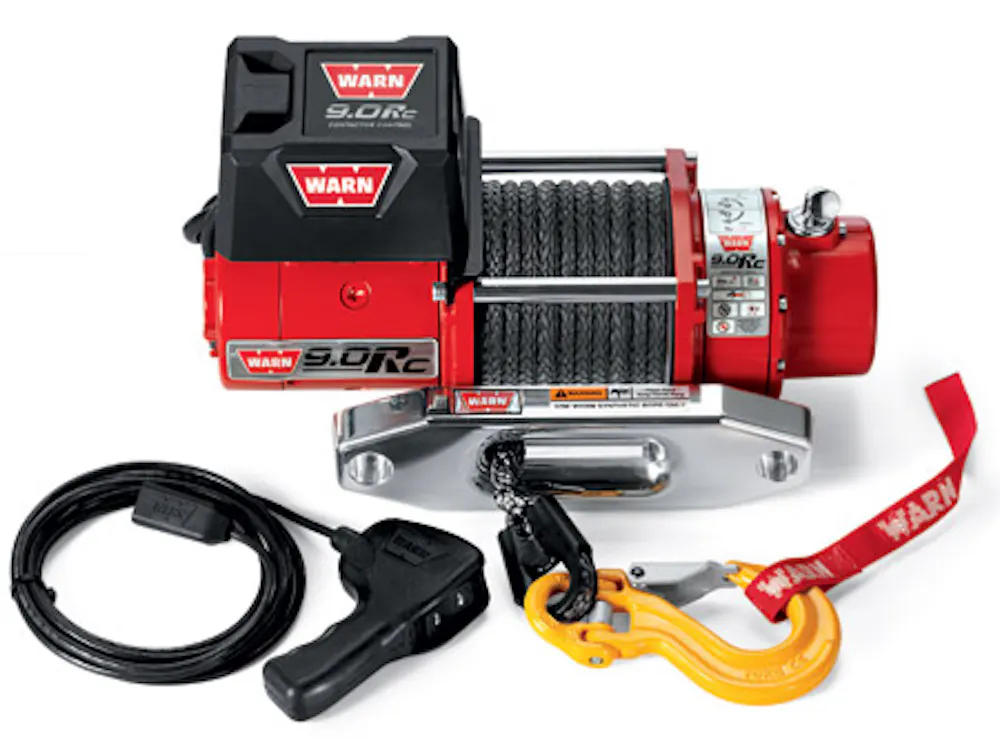

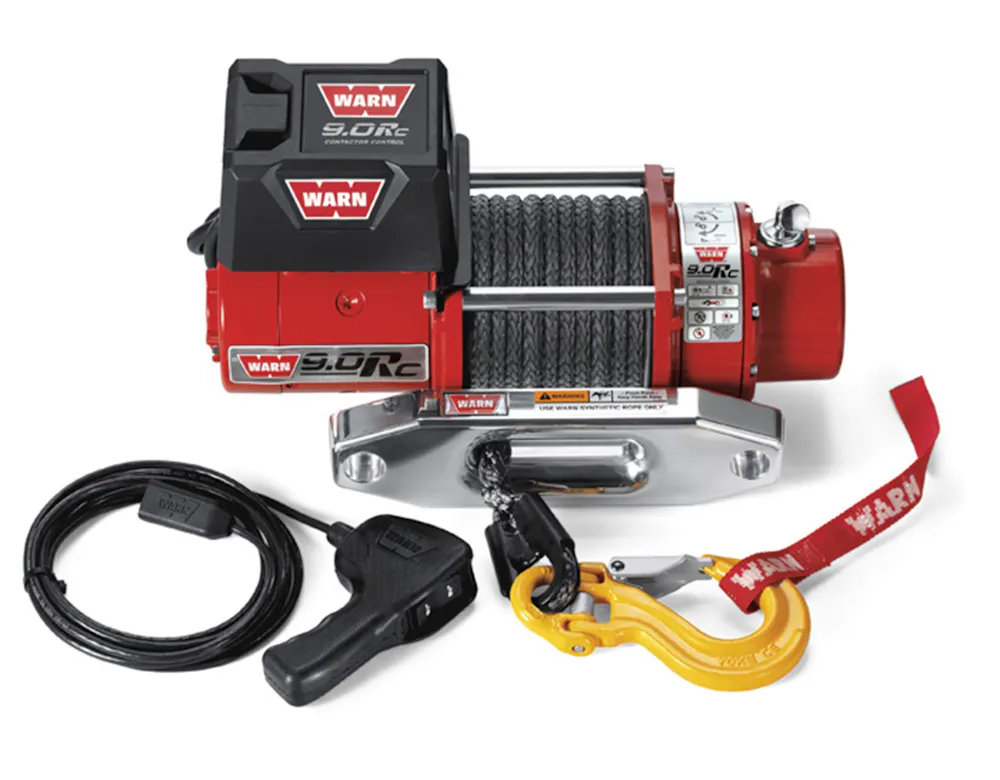

Description: WARN WINCH, 9.0Rc, 12V, SD, HAWSE; Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 9000 Pound Line Pull Capacity; 50 Foot Synthetic Rope; Hawse Fairlead; Wired Remote; Planetary Gear Drive
Description:
Description
From the endless mud in Malaysia to deep sand in the Australian Outback, our rugged specialty winches have a well-earned reputation for getting it done in the trenches, on the trails and in the toughest competitions throughout the off-road world, one fast line pull at a time.
Features & benefits
- A compact, lightweight winch designed for rock sports competition
- Series-wound motor and smooth, reliability three-stage planetary geartrain provides fast linespeed and efficient operation
- Exclusive gloss red paint with primer undercoat for superior corrosion resistance
- Removable control pack with Albright contactor for excellent reliability and control
- Includes 50' of lightweight, easy-to-handle 3/8" premium Spydura synthetic rope and a unique polished short-drum hawse fairlead and yellow hook
- Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
Application summary
| Year | Make / model |
|---|---|
| 2020-2021 | Jeep Gladiator |
| 2007-2021 | Jeep Wrangler |
| 2018 | Jeep Wrangler JK |
Specifications
- GTIN
- 00012748715504
- Weight
- 60 lb
- Height
- 8 in
- Length
- 19 in
- Width
- 25.5 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Type
- Mechanical Cone
- Cable Length
- 50
- Cable Material
- Synthetic Rope
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Conforms To J706 Standards
- No
- Drive Gear Type
- Planetary
- Electrical Control Type
- Contactors
- Fairlead Type
- Hawse
- Free Spooling
- Yes
- Gear Reduction Ratio
- 216:1
- Line Diameter (IN)
- 3/8 Inch
- Line Length (FT)
- 50 Feet
- Line Material
- Synthetic
- Max Amp Draw/ Line Pull
- 408 Amp Draw/ 9000 Pound
- Max Line Pull/ Line Speed
- 9000 Pound/ 5.6 Feet Per Minute
- Motor Horsepower
- 4.8 Horsepower
- Motor Type
- Series Wound
- Motor Voltage
- 12
- Mount Type
- Fixed Mount
- Operation Type
- Automatic
- Plow Mode
- Yes
- Rated Line Pull
- 9000
- Rated Single Line Pull (lbs.)
- 9000
- Recommended Use
- Vehicle Recovery
- Requires Mount
- Yes
- Thermal Shutoff
- No
- Title
- WARN
- Type
- Electric
- Voltage
- 12 Volt
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2020-2021 Jeep Gladiator; 2007-2021 Jeep Wrangler; 2018 Jeep Wrangler JK
