WARN · 36949
Part #: 36949
UPC: 012748369493
Log in for inventory
Notify me when this item is in stock.
Description: This hydraulic 3,000-lb. capacity hoist has a clockwise drum rotation. It is sold without rope, fairlead, or remote. The 21:1 gear reduction and automatic disc brake make it one hard worker.
Description:
Description
The HY3000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal gear train. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The hoist is built on a large frame with a cast aluminum drum for plenty of wire rope capacity.
Features & benefits
- The HY3000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our
- Large frame with a cast aluminum drum for plenty of wire rope capacity
- Powerful hydraulic motor with robust sealing
- Proven two-stage planetary gear train with 21:1 gear reduction
- Permanent great lubrication for low maintenance
- Limited 1 Year Warranty
- Automatic disc brake holds the hoist's full rated load
Information

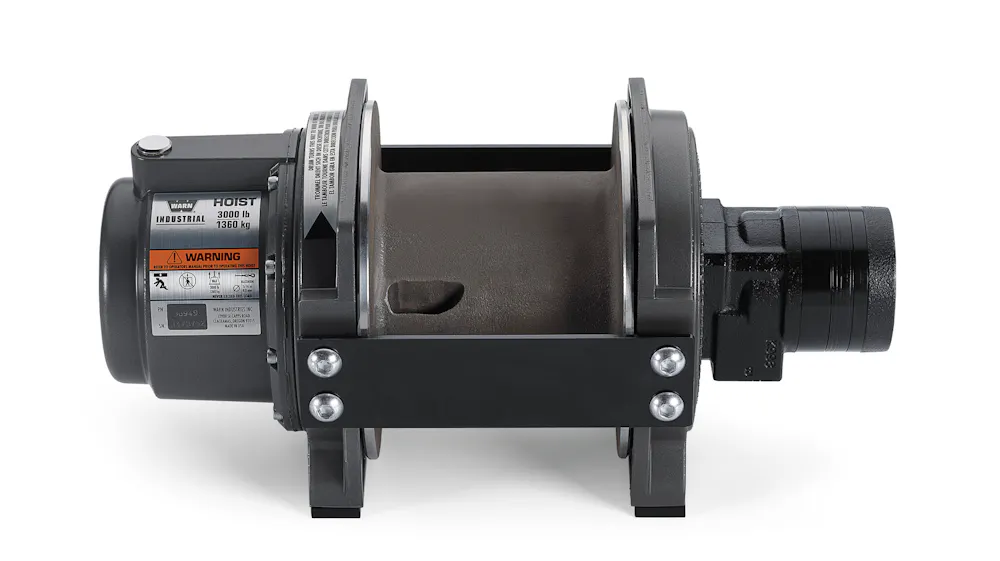

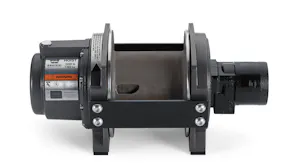

HY3000 Hoist
Specifications
- GTIN
- 00012748369493
- Weight
- 69 lb
- Height
- 13.25 in
- Length
- 28 in
- Width
- 11 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Cable Material
- No rope included
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- N/A
- Line Speed At Max Pull
- 43 Feet Per Minute At 3000 Pound
- Motor Capacity
- N/A
- Motor Type
- Permanent Magnet
- Motor Voltage
- N/A
- Mount Type
- Fixed Mount
- Operation Type
- Hydraulic
- Rated Line Pull
- 3000
- Rated Single Line Pull (lbs.)
- 3000
- Recommended Use
- Industrial
- Title
- HOIST
- Type
- Hydraulic
- Voltage
- Hydraulic
- Winch Rating
- N/A
Fitment status
This product is universal and will fit your application.
Rebates & offers

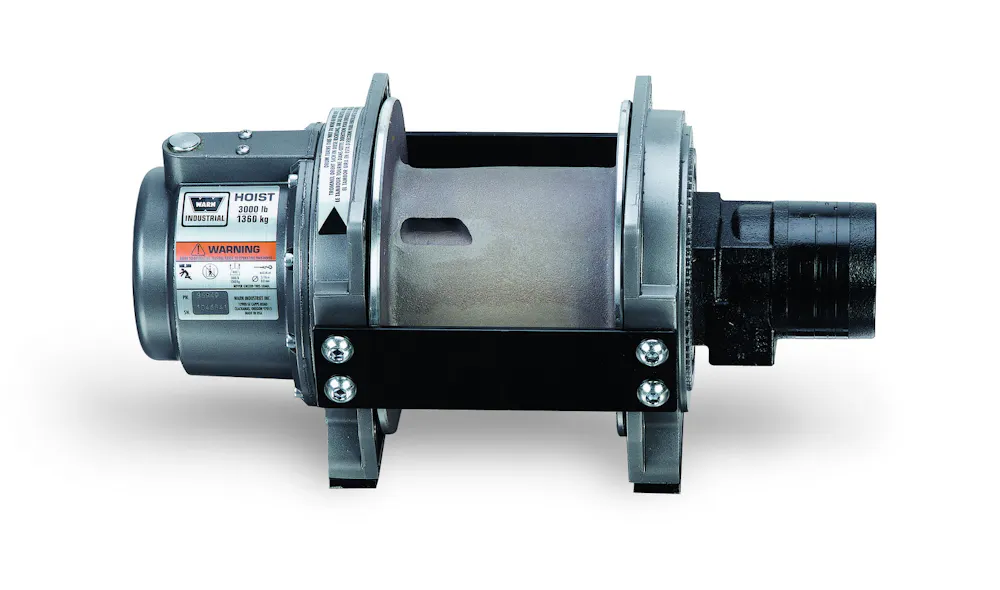

WARN 36949
