WARN · 33503
Part #: 33503
UPC: 012748335030
Log in for inventory
Notify me when this item is in stock.
Description: This 12 Volt electric hoist has a 1,600 lb. lifting capacity and is sold without rope, fairlead, or remote. The 26:1 gear reduction and automatic cone brake make it a great performer.
Description:
Description
The DC1600 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1600 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
Features & benefits
- The DC1600 hoist combines a powerful permanent magnet DC motor with robust sealing and our prov
- Powerful Permanent Magnet DC Motor With Robust Sealing
- Proven three-stage planetary gear train with 26:1 gear reduction
- Permanent grease lubrication means low maintenance
- Automatic cone brake holds the hoist's full rated load
- Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
- Limited 1 Year Warranty
Information

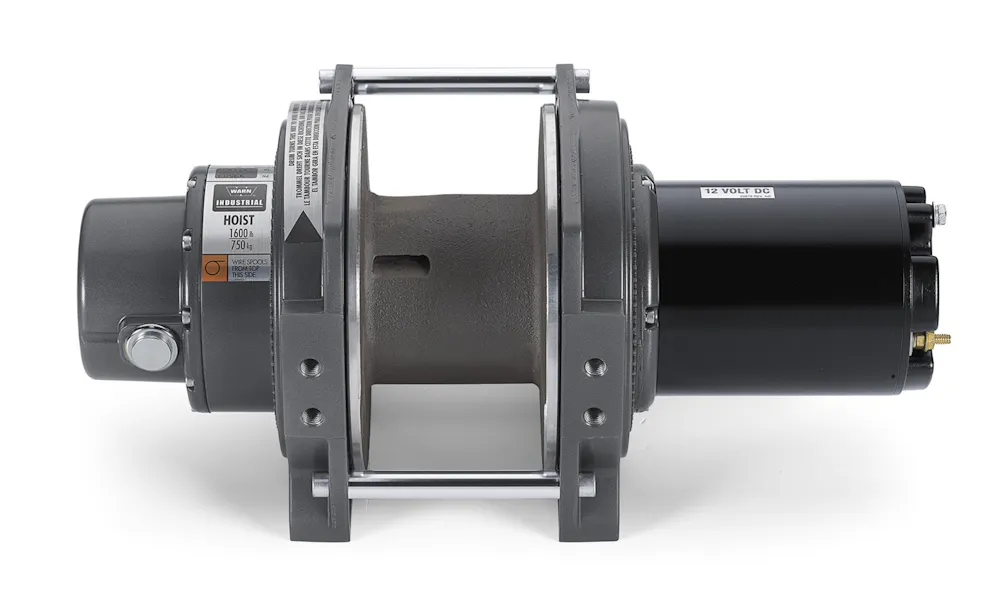

DC1600 12V Hoist
Specifications
- GTIN
- 00012748335030
- Weight
- 49.5 lb
- Height
- 10.5 in
- Length
- 28 in
- Width
- 12.75 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Cable Material
- No rope included
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- N/A
- Line Speed At Max Pull
- 12.5 Feet Per minute At 1600 Pound
- Max Amp Draw
- 95 Amp Draw At 1600 Pound
- Motor Capacity
- N/A
- Motor Type
- Permanent Magnet
- Motor Voltage
- 12V
- Mount Type
- Fixed Mount
- Operation Type
- Electrical
- Rated Line Pull
- 1600
- Rated Single Line Pull (lbs.)
- 1600
- Recommended Use
- Industrial
- Title
- Hoist DC1600
- Type
- Electric
- Voltage
- 12 Volt
- Winch Rating
- 1600
Fitment status
This product is universal and will fit your application.
