WARN · 15640
Part #: 15640
UPC: 012748156406
Loading...
Notify me when this item is in stock.

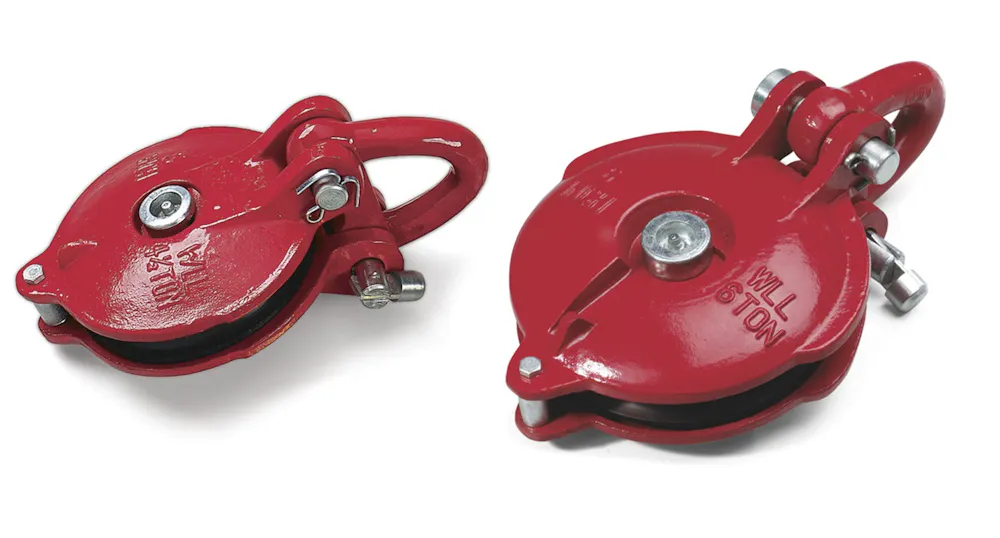

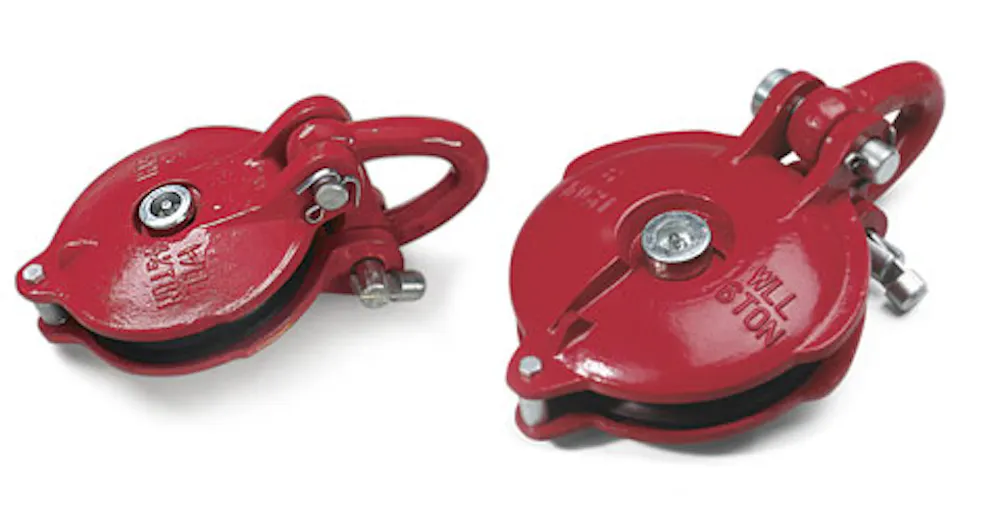

Description: HEAVY DUTY SNATCH BLOCK - 9,000 LB; This heavy-duty snatch block is for use with wire rope only, up to 1/2-in. With an easy-to-see red finish, this rugged accessory will help you get the most out of your winch.
Description:
Description
When used properly, this multi-purpose snatch block can double the pulling power of a winch and change the pulling direction without risk of damaging the rope. Snatch blocks also reduce amp draw and winch overheating. Applicable working load limit (WLL) is dependent on application: 4:1 Safety Factor WLL: 9,000 lbs. - per ASME B30.26 Standard (General rigging & lifting); 2:1 Safety Factor WLL: 18,000 lbs. - per BS 7901 Standard (Vehicle recovery, not overhead). Minimum breaking strength: 36,000 lbs. Max recommended winch capacity: 9,000 lbs.
Features & benefits
- Red finish increases visibility, all-metal construction is exceptionally durable
- Reduces heat build up and amp draw
- Change the pull direction without damaging rope
- Verify the correct WLL based on your application: 9,000 lbs. WLL for general rigging and lifting; 18,000 lbs. WLL for vehicle recovery and non-overhead pulling. Max recommended winch capacity: 9,000 lbs.
Specifications
- GTIN
- 00012748156406
- Weight
- 9.43 lb
- Height
- 5 in
- Length
- 11.25 in
- Width
- 7.75 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Capacity
- 18,000
- Compatibility
- Winches With 12000 Pounds Capacity
- Greasable
- Yes
- Includes Grease Port
- Yes
- Maximum Line Diameter
- 3/8
- Pulley Material
- Steel
- Title
- WARN
- Weight Capacity (LB)
- 24000 Pounds
Fitment status
This product is universal and will fit your application.
Equivalent Parts
WARN 15640
