WARN / 110012
Part #: 110012
UPC: 012748110774
Loading...
Notify me when this item is in stock.

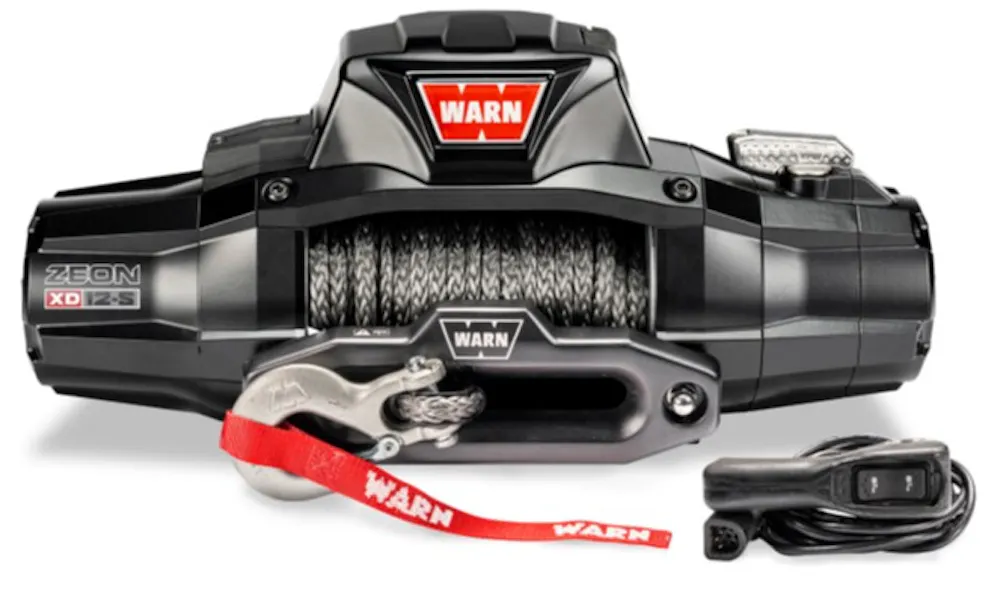

Description: ZEON XD 12-S WITH 80' OF 3/8" SPYDURA PRO SYNTHETIC ROPE; WARN ZEON XD 12-S premium recovery winch. Performance and durability; industry's best warranty; fastest line-speed; and most robust waterproof sealing. ZEON XD is the ultra-reliable recovery tool you can count on.
Description:
Description
ZEON XD stands ready for the moments when "good enough" simply won't suffice. Boasting the fastest line-speed in its class, robust waterproof sealing, and multiple control options, ZEON XD is the ultra-reliable recovery tool you can count on in critical situations. Every ZEON XD is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.
Features & benefits
- High-performance motor and geartrain deliver blazing fast no-load line speeds.
- IP68 water submersion and IP69K high pressure spray rating, achieved through the use of automotive-grade O-ring sealing.
- OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XD stays pristine for years to come.
- Full metal armor safeguards components from impact, damage, and trail debris.
- Albright contactor control and bus bars provide ultimate electrical reliability .
- Strong, lightweight and easy to handle WARN Spydura PRO synthetic rope with heat resistant inner wraps and an abrasion sleeve.
- Industry-leading warranty: Limited lifetime mechanical, seven year electricalall backed by a global service network.
Information
Ideal for vehicles with GVWR of up to 8000 lbs (3600kg)
Specifications
- GTIN
- 00012748110774
- Weight
- 86 lb
- Height
- 9 in
- Length
- 20 in
- Width
- 28 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Activation
- Automatic
- Brake Type
- Cone
- Cable Diameter
- 3/8
- Cable Length
- 80
- Cable Material
- Synthetic Rope
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Black
- D Shackle Included
- No
- Fairlead Type
- Hawse
- Free Spooling
- Yes
- Gear Ratio
- 176:1
- Gearing
- 3-Stage Planetary
- Hand Saver
- Yes
- Length
- 23.9
- Maximum Height
- 10.5
- Maximum Width
- 7.1
- Motor Type
- Series Wound
- Motor Voltage
- 12V
- Mount Type
- Fixed Mount
- Mounting Bolt Pattern Length
- 4.5
- Mounting Bolt Pattern Width
- 10
- Mounting Hole Quantity
- 4
- Plow Mode
- Yes
- Power Out
- Yes
- Rated Line Pull
- 12000
- Remote Included
- Yes
- Remote Type
- Wireless
- Requires Mount
- Yes
- Solenoid Type
- Contactor
- Title
- WARN
- Tree Saver
- No
- Type
- Electric
- Voltage
- 12V
- Winch Rating
- Electric
- With Light Mounts
- 12000lbs
- With Mounting Hardware
- YES
Fitment status
This product is universal and will fit your application.
