WARN / 106413
Part #: 106413
UPC: 012748080558
Loading...
Notify me when this item is in stock.
Description: SEMI-HIDDEN WINCH MOUNT FOR SUBARU FORESTER; Fully tested and compatible with AXON 45, AXON 55, VRX 45, and other powersports winches up to 6,000 lbs. (mounting bolt pattern: 3.0 x 6.59 or 76.2mm x 167.4mm); Easy-to-install with plastic trimming only.
Description:
Description

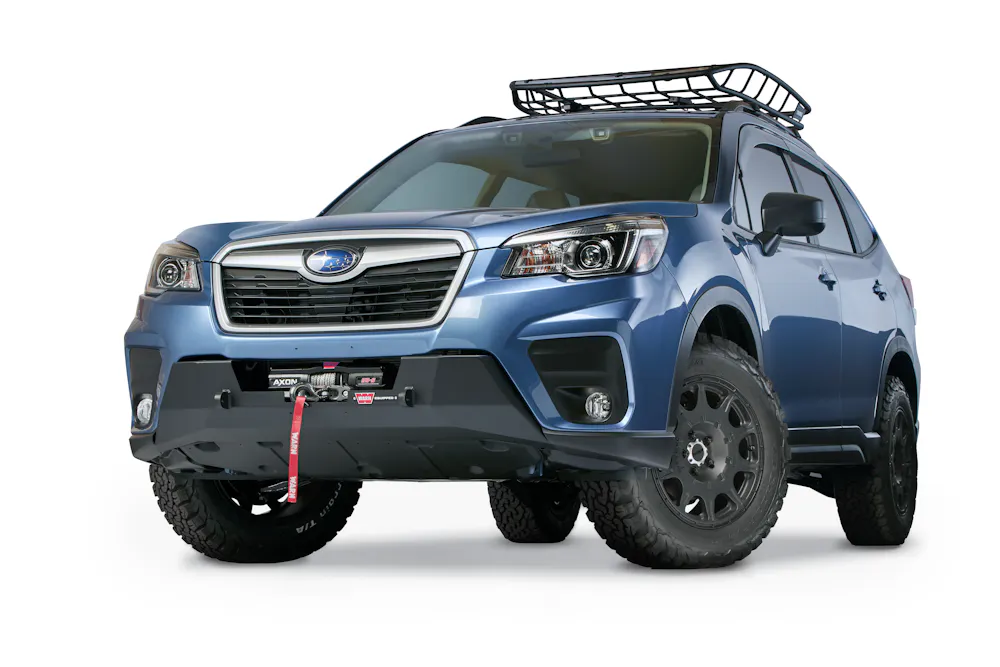

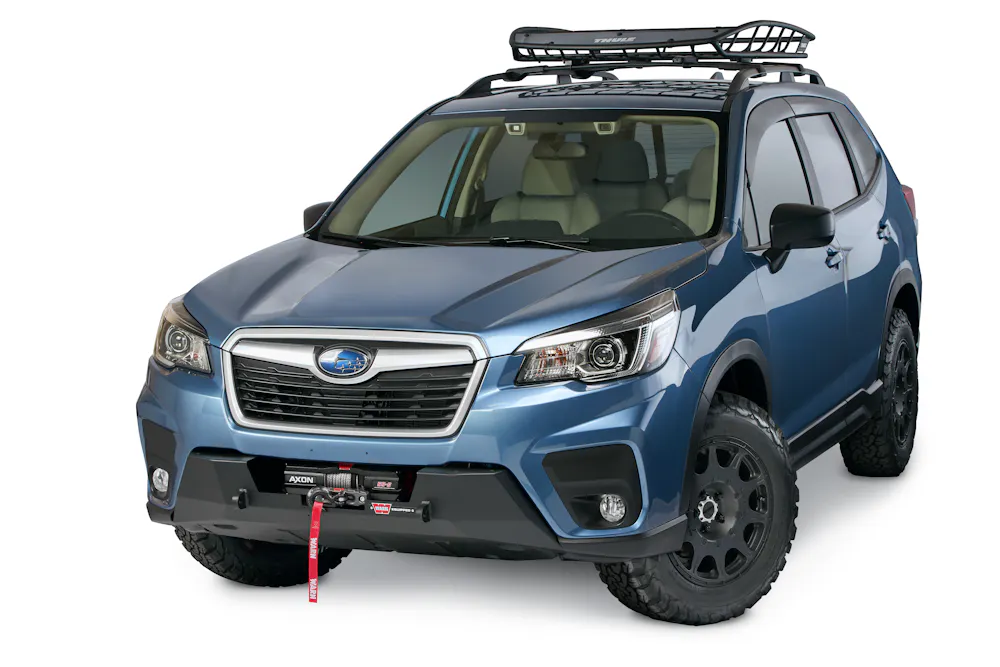

Conceal your pulling power behind a Semi-Hidden steel bumper designed to provide aggressive, yet understated, front-end protection that won’t clash with the look of the original equipment. These low-profile setups maintain the factory style and add a strong winch mount, welded eyelets for recovery options, and an optional grill guard with tabs for auxiliary lights. Fully tested and compatible with AXON 45, AXON 55, VRX 45, and other powersports winches up to 6,000 lbs. (mounting bolt pattern: 3.0 x 6.59 or 76.2mm x 167.4mm); Easy-to-install with plastic trimming only.
Features & benefits
- Easy to install with minimal cutting along lower plastic fascia. No metal cutting, welding, or grinding needed
- Compatible with winches up to 6,000 lbs.
- Made from sturdy 3/16” steel with state-of-the-art powder-coated finish stands up to 408-hour salt spray testing for years of corrosion resistance
- Compatible with airbag and driver-aid systems and sensors. Works with skid plates
- Easy access to winch control
- Low-profile design improves approach angle and increases front-end protection while maintaining vehicle’s original style
- Welded eyelets for D-rings (5/8” pin diameter) provides increased recovery options

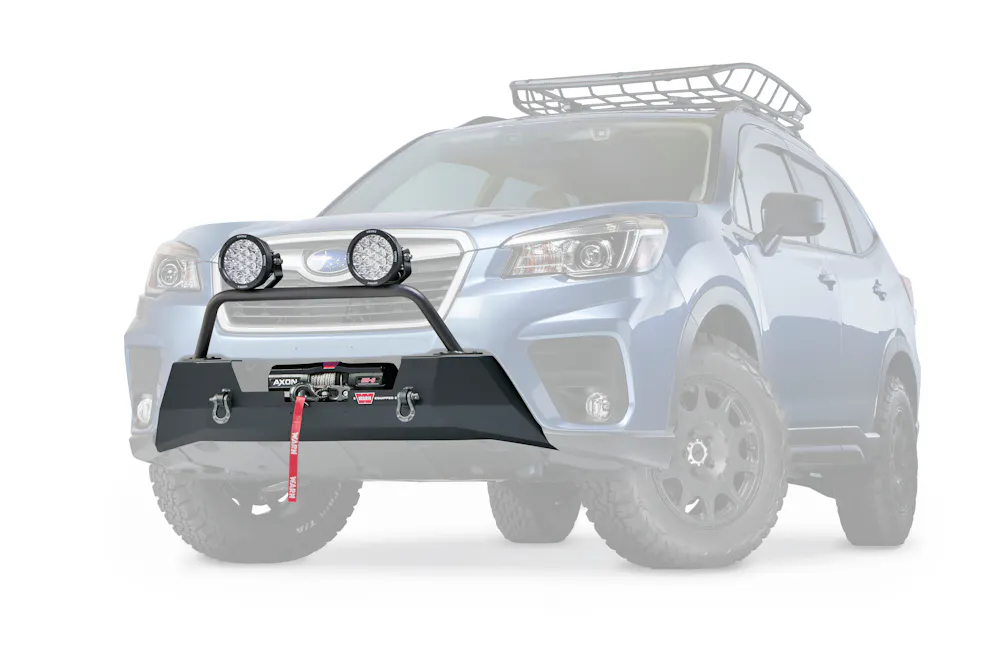

- Optional bolt-on grille guard tube with light mounting tabs for increased protection and provision for auxiliary lighting
- A 20” light bar can be mounted in place of the winch if so desired
Application summary
| Year | Make / model |
|---|---|
| 2019-2021 | Subaru Forester |
Specifications
- GTIN
- 00012748080558
- Weight
- 80 lb
- Height
- 16 in
- Length
- 68 in
- Width
- 19 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Compatibility
- Fully tested and compatible with AXON 45, AXON 55, VRX 45, and other powersports winches up to 6,000 lbs. in capacity (with mounting bolt pattern: 3.0? x 6.59? or 76.2mm x 167.4mm)
- Mount Type
- Vehicle Mounted
- Title
- WARN
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2019-2021 Subaru Forester
