WARN / 105151
Part #: 105151
UPC: 012748103653
Loading...
Notify me when this item is in stock.

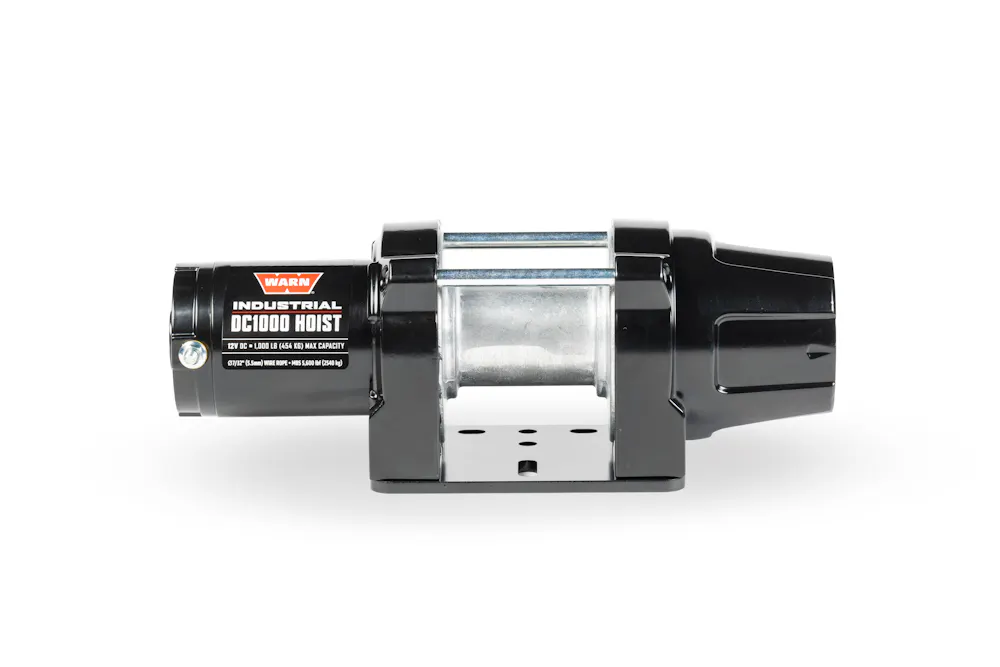

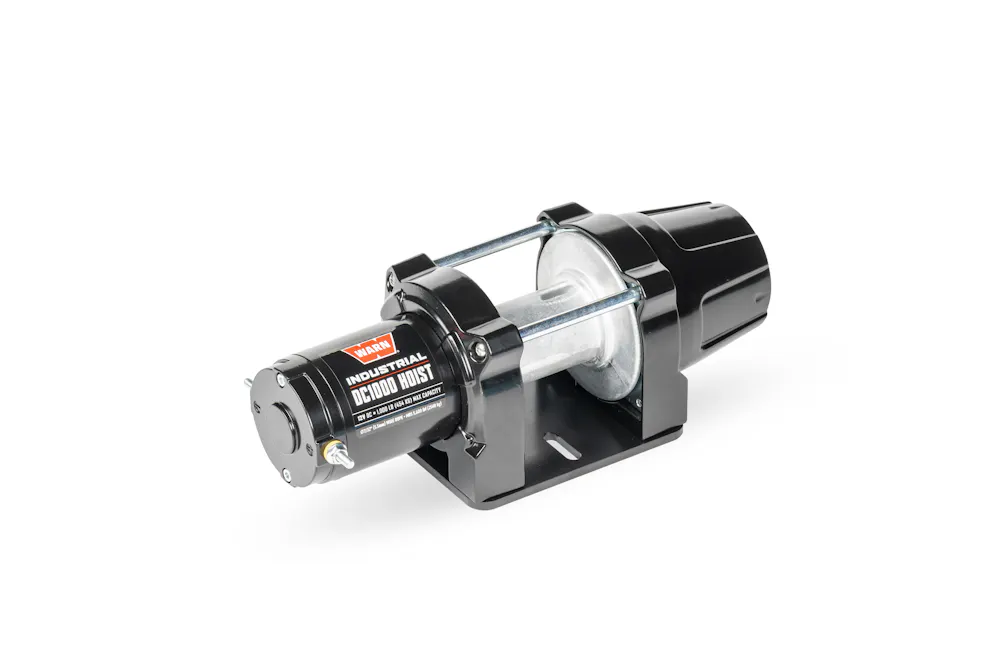

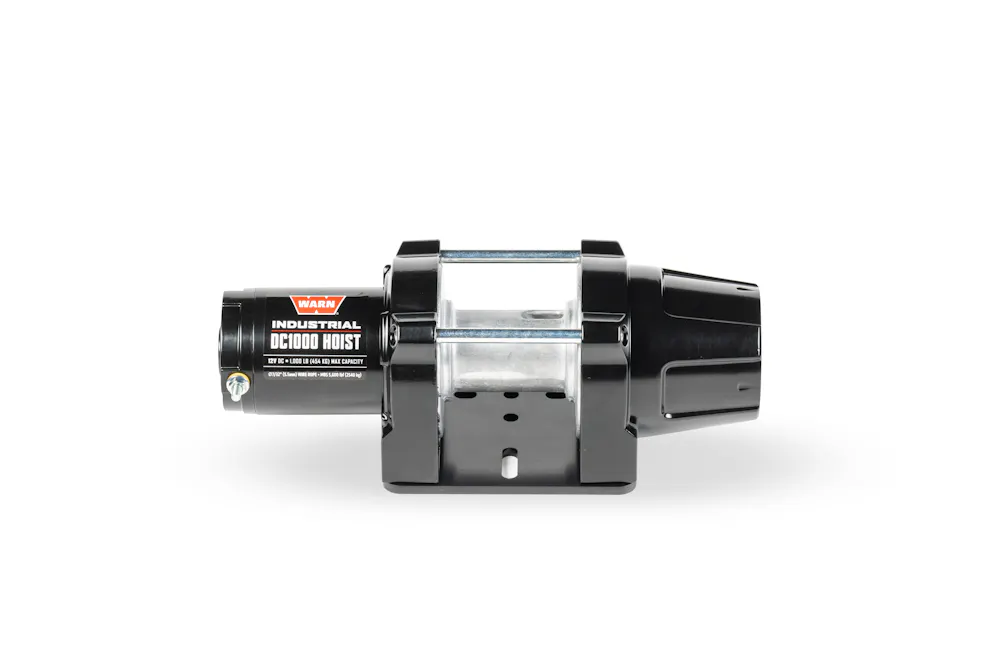

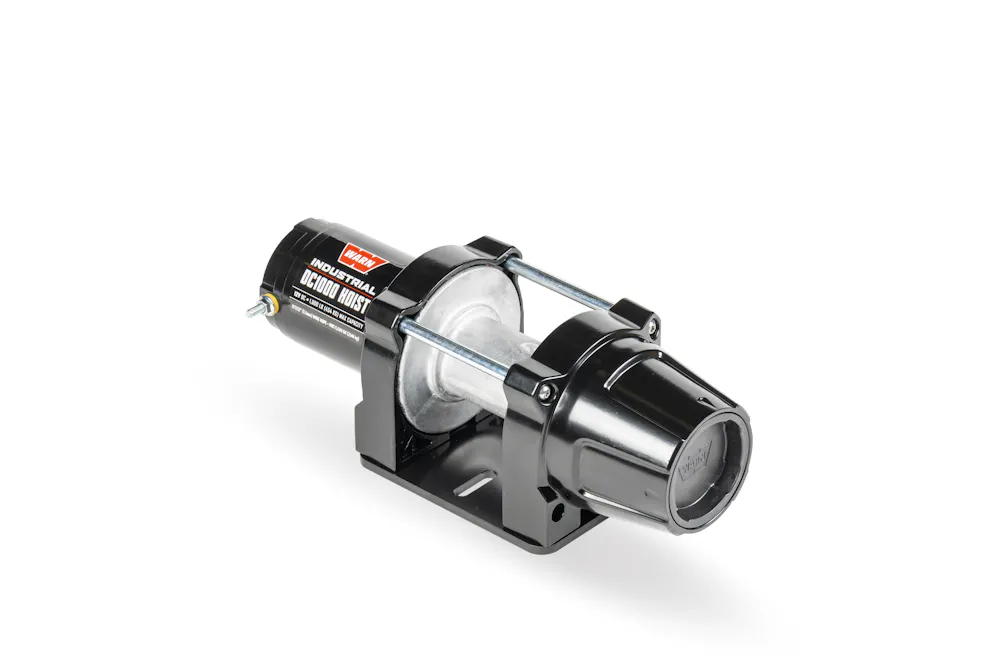

Description: HOIST DC1000 12V SHORT DRUM; This short-drum hoist has a 1,000 lb. (454kg) capacity and is powered by a strong 12-volt DC permanent magnet motor. Also features a reliable three-stage planetary gear train, automatic load-holding brake, and is IP68/IP69K waterproof.
Description:
Description
Small but mighty, these hoists will work in a variety of applications from work truck cranes and davits, to lifting heavy spare tires on overland rigs, and even military vehicles. With WARN reliability, automatic braking, and an included mounting plate and hardware, the new DC1000 are the perfect way to give those tough jobs a lift. WARN Industrial hoists combine the performance of heavy duty motors with hardened steel planetary gear trains to provide optimum power in lifting operations. All WARN hoists comply with the most stringent standards.
Features & benefits
- 1000 lb. (454 kg) capacity with a short drum
- 12V DC permanent magnet motor
- IP68/IP69K waterproofing sealing
- Mounting bolt pattern 3.0-in. x 4.87-in. (76.2mm x 123.7mm)
- automatic mechanical brake that holds full-rated load
Information
Mounting bolt pattern 3.0-in.x4.87-in. (76.2mm x 123.7mm)
Specifications
- GTIN
- 00012748103653
- Weight
- 21 lb
- Height
- 6.3 in
- Length
- 17.5 in
- Width
- 12.5 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Cable Material
- No rope included
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- N/A
- Motor Capacity
- N/A
- Motor Voltage
- 24V
- Mount Type
- Fixed Mount
- Operation Type
- Electrical
- Rated Line Pull
- 1000
- Title
- HOIST DC1000 12V SHORT DRUM
- Winch Rating
- N/A
Fitment status
This product is universal and will fit your application.
WARN 105151
