WARN · 101150
Part #: 101150
UPC: 012748056065
Log in for inventory
Notify me when this item is in stock.

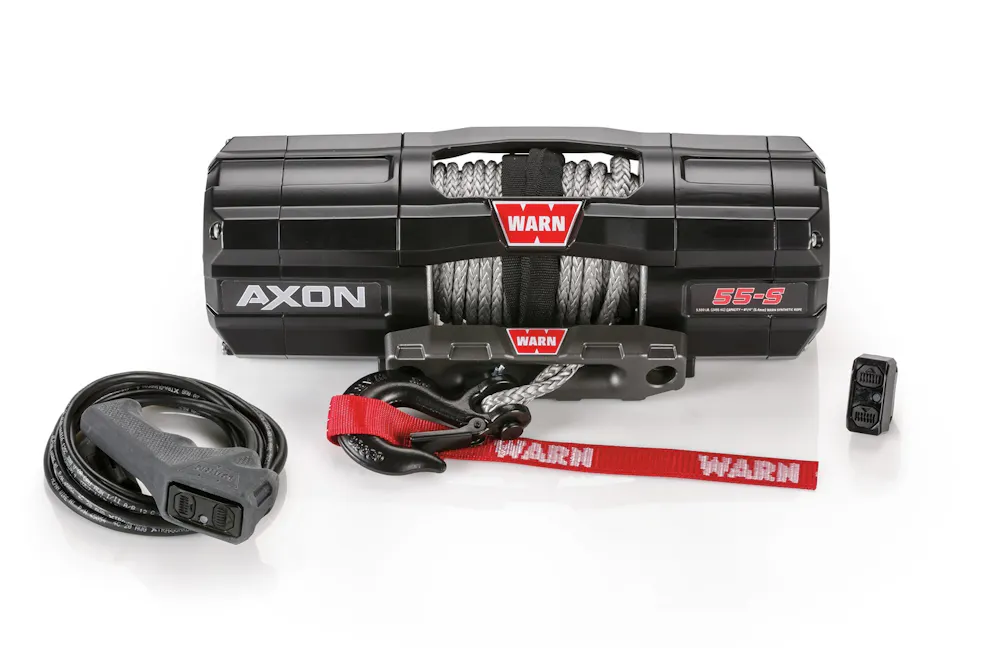

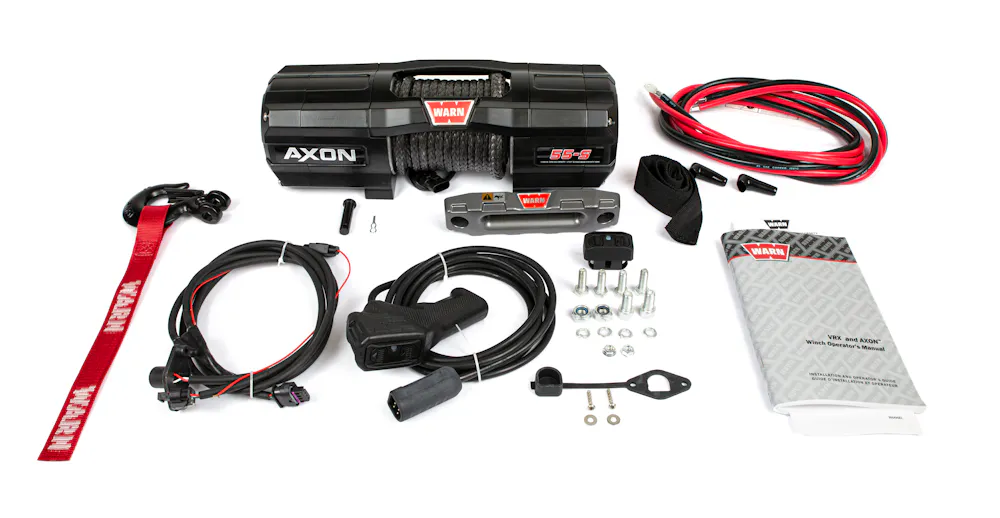

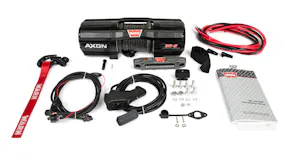

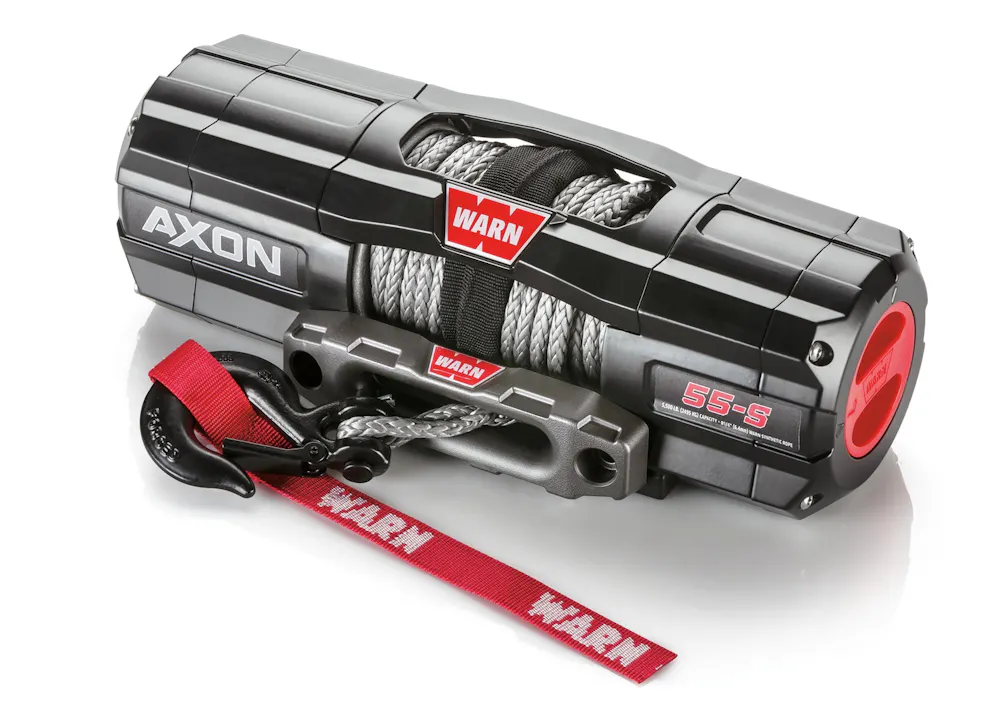

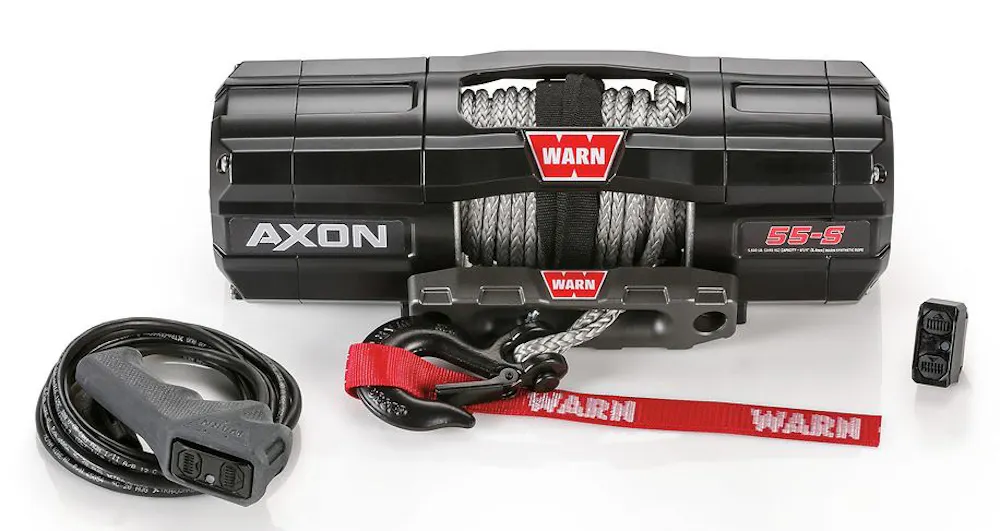

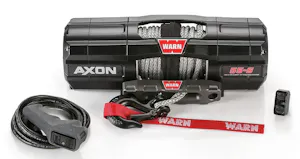

Description: WARN AXON 55-S WINCH; AXON 55-S winch featuring 50-ft. of 1/4-in. Spydura synthetic rope, Epic hawse fairlead, Rockerbar digital control switch, and HUB Wireless Receiver. The top choice for UTVs.
Description:
Description
Add some brainpower to your horsepower. With advanced Motactor (motor/contactor) digital technology, IP68 rated, and a compact, easy-to-install design, the WARN AXON is the best powersports winch on the market. With pulling capacities from 3,500 to 5,500 lbs., these state-of-the-art winches will help you go prepared for any situation.
Features & benefits
- AXON 55-S comes with 50-ft. of lightweight, easy-to-handle ¼-in. Spydura synthetic rope, an Epic hawse fairlead, and a black hook
- Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
- New clutch design based on legendary WARN 4WD hub lock know-how
- Load-holding brake for great control
- Smooth and reliable all-metal three-stage planetary gear train
- Rockerbar digital control switch, and HUB Wireless Receiver
- Limited lifetime warranty (mechanical), 3 year warranty (electrical)
- Plow mode allows for simplified plow controls and operation. Lets you set lifting limits and has one-touch control
- Designed, engineered, and assembled in the USA
- Massive 5,500 lb. capacity for the biggest UTVs and biggest pulls
- Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
- IP68 waterproofing keeps water and the elements out
- Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
Information
Ideal for vehicles with GVWR up to 3600 lbs. (1633 kg). Long drum with 3.0in x 6.59in (76.2mm x 167.4mm) mounting bolt pattern and for use with fairlead with 6.59-in. bolt spacing
Specifications
- GTIN
- 00012748056065
- Weight
- 29 lb
- Height
- 6 in
- Length
- 18 in
- Width
- 10 in
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Activation
- Automatic
- Brake Type
- Drum
- Cable Diameter
- 1/4
- Cable Length
- 50
- Cable Material
- Synthetic Rope
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- D Shackle Included
- No
- Fairlead Type
- Hawse
- Free Spooling
- Yes
- Gear Ratio
- 239:1
- Gearing
- 3-Stage Planetary
- Length
- 15
- Maximum Height
- 4.8
- Maximum Width
- 4.6
- Motor Type
- Permanent Magnet
- Motor Voltage
- 12V
- Mount Type
- Fixed Mount
- Mounting Bolt Pattern Length
- 6.59
- Mounting Bolt Pattern Width
- 3
- Mounting Hole Quantity
- 4
- Plow Mode
- Yes
- Power Out
- Yes
- Rated Line Pull
- 5500
- Rated Single Line Pull (lbs.)
- 5500
- Recommended Use
- ATV
- Requires Mount
- Yes
- Title
- WARN
- Type
- Electric
- Voltage
- 12V
- Winch Rating
- 5500 Pound
Fitment status
This product is universal and will fit your application.
Rebates & offers
Equivalent Parts
WARN 101150
