WARN · 101135
Part #: 101135
UPC: 012748056034
Log in for inventory
Notify me when this item is in stock.

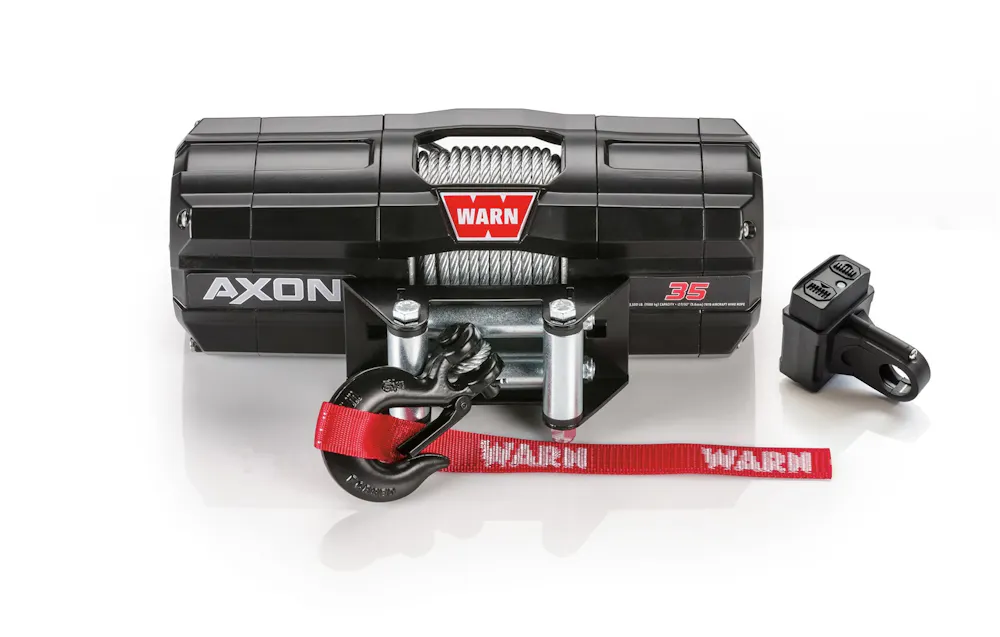

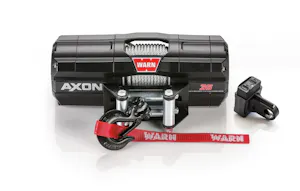

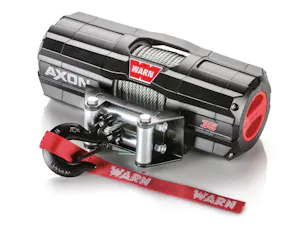

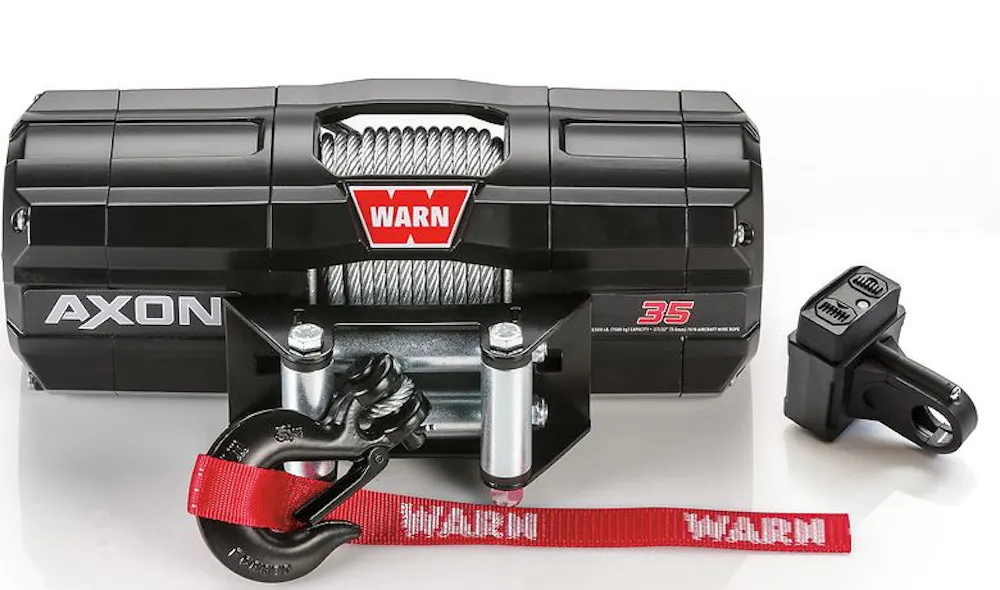

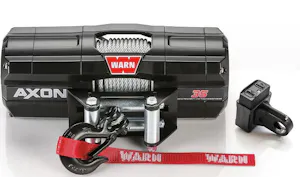

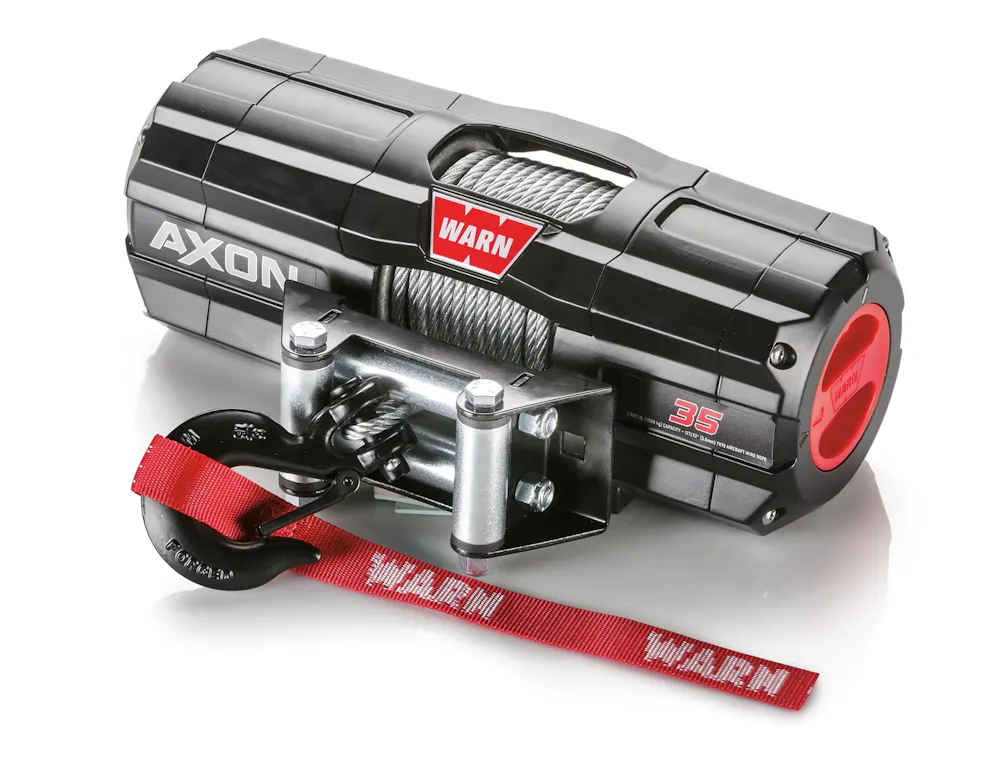

Description: WARN AXON 35 WINCH; AXON 35 includes 50-ft. of durable 7/32-in. steel rope, roller fairlead, and black hook. Excellent for big ATVs or smaller UTVs. AXON is the ultimate powersports winch.
Description:
This part number superseded 90350.
Description
Add some brainpower to your horsepower. With advanced Motactor (motor/contactor) digital technology, IP68 rated, and a compact, easy-to-install design, the WARN AXON is the best powersports winch on the market. With pulling capacities from 3,500 to 5,500 lbs., these state-of-the-art winches will help you go prepared for any situation.
Features & benefits
- AXON 35 includes 50-ft. of durable 7/32-in. steel rope, roller fairlead, and black hook
- IP68 waterproofing keeps water and the elements out
- Rockerbar digital control switch with handlebar mount adaptor
- Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
- New clutch design based on legendary WARN 4WD hub lock know-how
- Load-holding brake for great control
- Smooth and reliable all-metal three-stage planetary gear train
- Limited lifetime warranty (mechanical), 3 year warranty (electrical)
- Designed, engineered, and assembled in the USA
- Stout 3,500 lb. capacity for riders who push the limits
- Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
- Digital control offers never-before seen levels of reliability and user feedback, including load and temperature info
- Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
Information
AXON 35 Winch
Specifications
- GTIN
- 00012748056034
- Weight
- 31.5 lb
- Height
- 6 in
- Length
- 18 in
- Width
- 10 in
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Activation
- Automatic
- Brake Type
- Drum
- Cable Diameter
- 7/32
- Cable Length
- 50
- Cable Material
- Metal Rope
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- D Shackle Included
- No
- Fairlead Type
- Roller
- Free Spooling
- Yes
- Gear Ratio
- 168:1
- Gearing
- 3-Stage Planetary
- Length
- 13.3
- Maximum Height
- 4.8
- Maximum Width
- 4.6
- Motor Type
- Permanent Magnet
- Motor Voltage
- 12V
- Mount Type
- Fixed Mount
- Mounting Bolt Pattern Length
- 4.87
- Mounting Bolt Pattern Width
- 3
- Mounting Hole Quantity
- 4
- Plow Mode
- Yes
- Power Out
- Yes
- Rated Line Pull
- 3500
- Rated Single Line Pull (lbs.)
- 3500
- Recommended Use
- ATV
- Requires Mount
- Yes
- Title
- WARN
- Type
- Electric
- Voltage
- 12V
- Winch Rating
- 3500 Pound
Fitment status
This product is universal and will fit your application.
