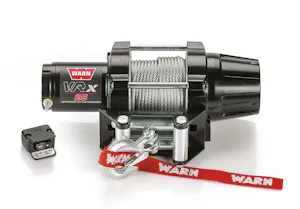

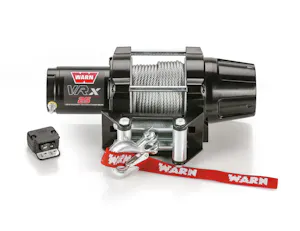

Description: WARN VRX 25 WINCH; WARN VRX 25 2500lb winch with wire rope, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements.
Description:
This part number superseded 89020.
Description
Whether you’re looking for 4 wheeler winches, side by side winches, or something in between, the WARN VRX offers the best combination of performance and value in the powersports market. With capacities ranging from 2,500 to 4,500 lbs., IP68 waterproof construction, these winches are ready to work, whether that’s pulling a stuck quad, lifting an ATV snow plow, or moving something in between. Part winch, part workhorse, 100% Warn.
Features & benefits
- VRX 25 Includes 50’ x 3/16” steel rope, roller fairlead and zinc plated hook
- Handlebar-mounted rocker switch for easy control
- Limited lifetime warranty (mechanical), 3 year warranty (electrical)
- Robust 2,500 lb. capacity is perfect for ATVs
- Load-holding mechanical brake for great control
- Durable all-metal construction
- Clutch design is based on legendary WARN 4WD hub lock know-how and is easy to use
- Complete IP68 waterproof sealing keeps all the elements out and reliability in
- Semi-gloss back powder-coated finish and stainless steel fasteners for corrosion resistance
- Smooth and reliable all-metal three-stage planetary gear train
Information
VRX 25 Winch
Specifications
- GTIN
- 00012748055976
- Weight
- 27 lb
- Height
- 6 in
- Length
- 18 in
- Width
- 12 in
- Life cycle
- Available to Order
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Activation
- Automatic
- Brake Type
- Drum
- Cable Diameter
- 3/16
- Cable Length
- 50
- Cable Material
- Metal Rope
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- D Shackle Included
- No
- Fairlead Type
- Roller
- Free Spooling
- Yes
- Gear Ratio
- 153:1
- Gearing
- 3-Stage Planetary
- Length
- 13.1
- Maximum Height
- 4.7
- Maximum Width
- 4.7
- Motor Type
- Permanent Magnet
- Motor Voltage
- 12V
- Mount Type
- Fixed Mount
- Mounting Bolt Pattern Length
- 4.87
- Mounting Bolt Pattern Width
- 3
- Mounting Hole Quantity
- 4
- Plow Mode
- Yes
- Power Out
- Yes
- Rated Line Pull
- 2500
- Rated Single Line Pull (lbs.)
- 2500
- Recommended Use
- ATV
- Requires Mount
- Yes
- Title
- WARN
- Type
- Electric
- Voltage
- 12V
- Winch Rating
- 2500 Pound
Fitment status
This product is universal and will fit your application.
