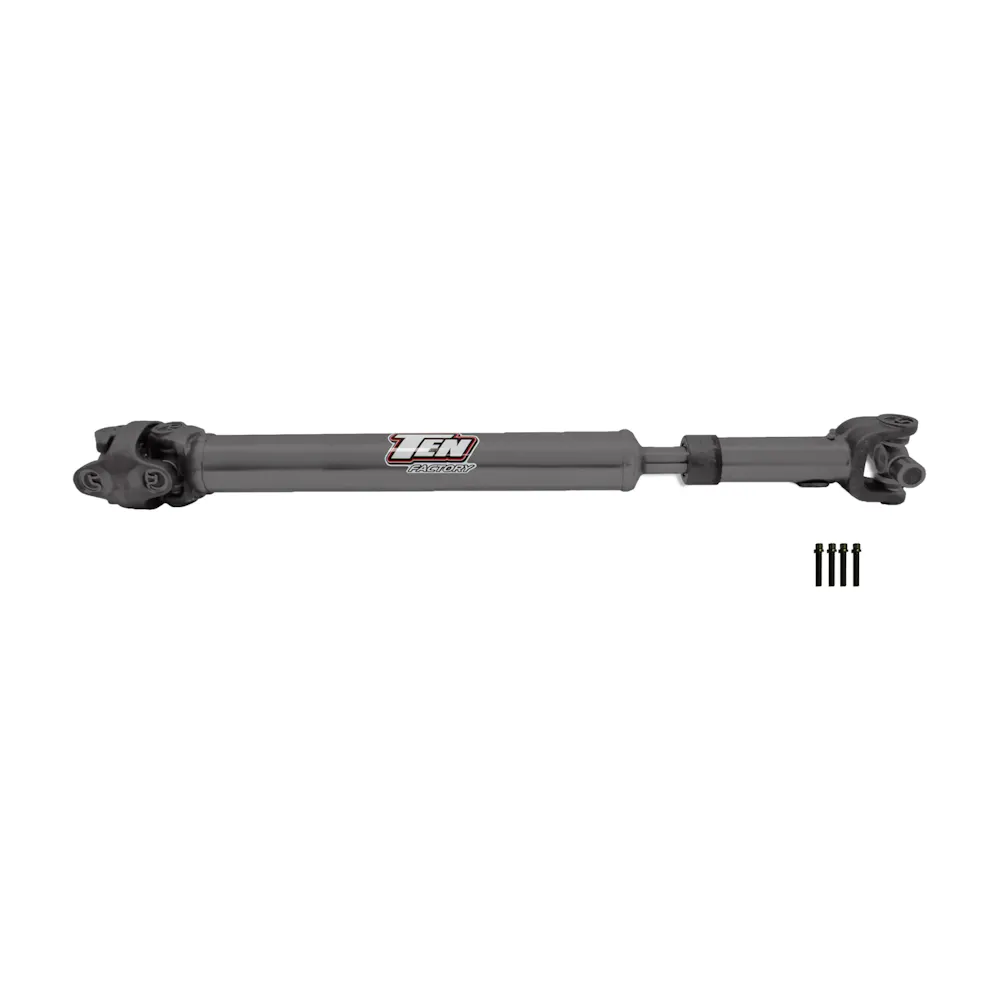

TEN Factory · TFR1310-2129
Part #: TFR1310-2129
Log in for inventory
Notify me when this item is in stock.
Description: Heavy-duty Drive Shaft transfers engine torque with minimal vibration.; This Drive Shaft is balanced and heat treated for smooth power transfer and extended service life. It eliminates vibration and driveline noise while handling maximum torque loads in commercial trucks.
Description:
Description
This Drive Shaft is balanced and heat treated for smooth power transfer and extended service life. It eliminates vibration and driveline noise while handling maximum torque loads in commercial trucks.
Features & benefits
- Compatible with OEM and aftermarket universal joints and center support bearings for flexible service and maintenance options.
- Engineered to OEM phase angle and length specifications, preventing driveline vibration and premature u-joint wear.
- Hardened yoke bores and journals maintain correct bearing cup retention under high-cycle commercial truck drivetrain demands.
- Heat-treated alloy steel tube construction handles maximum rated torque without torsional fatigue or flex joint failure.
- Precision-balanced to minimize vibration and extend universal joint and center bearing service life at highway speeds.
Information
XJ RR 1310 SOLID CV DRIVESHAFT SEE NOTES
Application summary
| Year | Make / model |
|---|---|
| 1987-2001 | Jeep Cherokee |
| 1987 | Jeep Wrangler |
Specifications
- Weight
- 24 lb
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- TEN
- Warehouse brand code
- TEN
- AAIA brand code
- FCHM
Attributes
- App/Model
- Jeep Cherokee XJ
- Bolt Grade
- Grade 10
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Maximum Lift Height
- 4
- Maximum Tire Diameter
- 37 Inch
- Position
- Rear
- Shaft Material
- 4140 Chromoly
- Taxonomy A
- Driveline
- Taxonomy B
- LD Complete Driveshafts
- Taxonomy C
- Performance Driveshafts
- Taxonomy D
- Double Cardan CV
- Taxonomy E
- Rear
- Tubing Diameter
- 2"x.083"
- Type
- Double Cardan CV
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1987-2001 Jeep Cherokee; 1987 Jeep Wrangler
