TEN Factory · MG27125
Part #: MG27125
UPC: 698231941126
Log in for inventory
Notify me when this item is in stock.

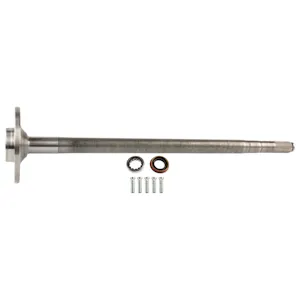

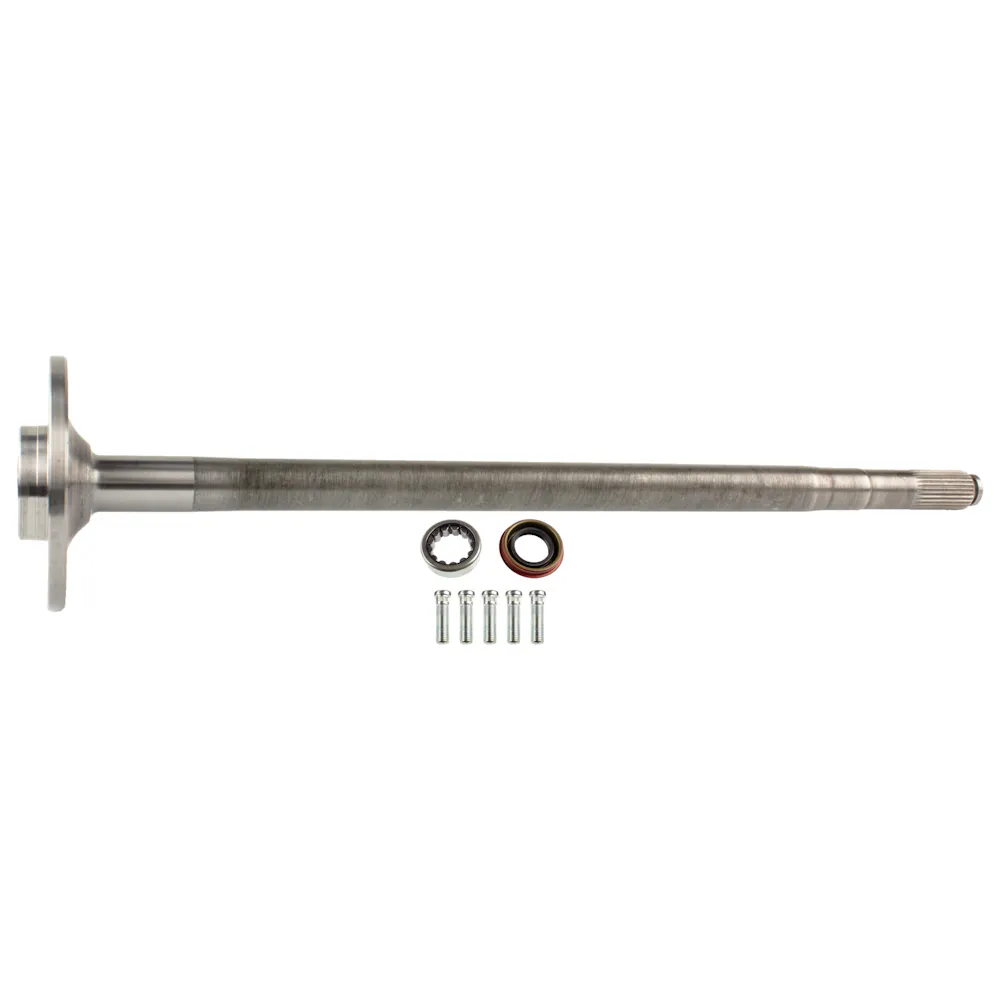

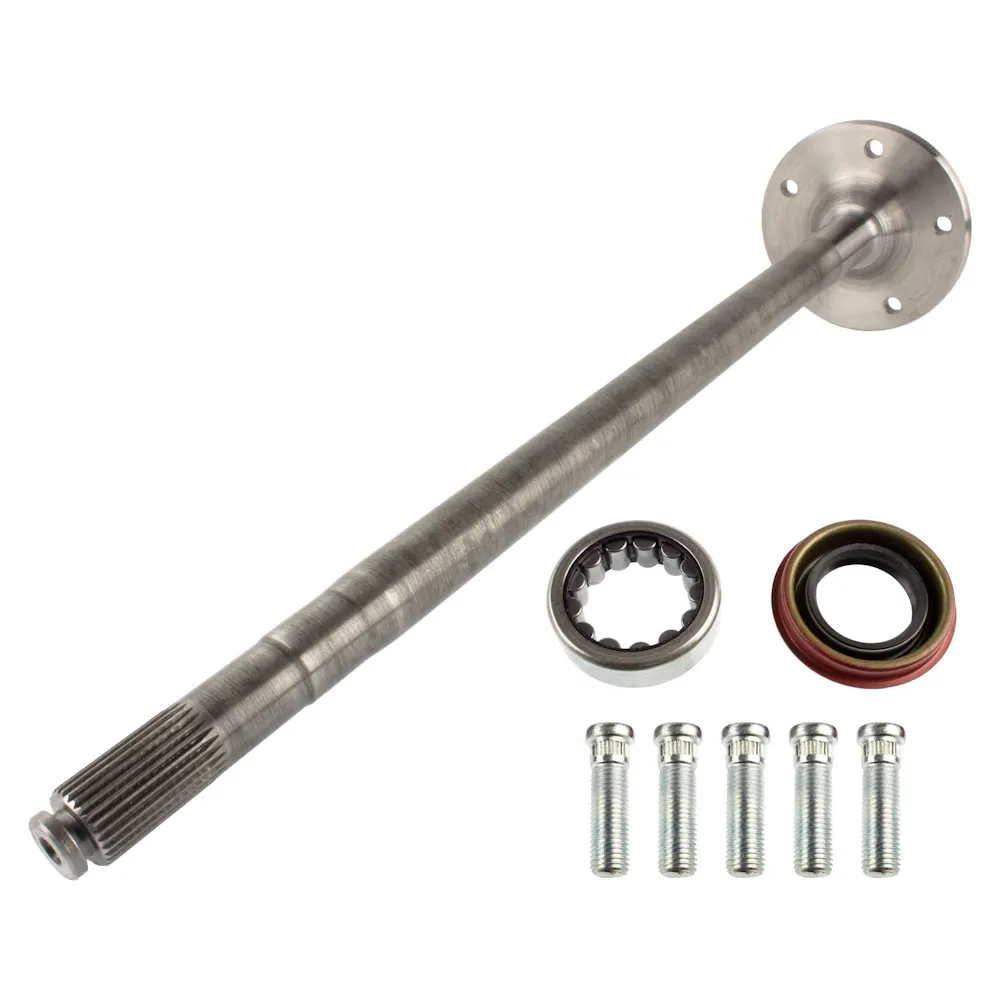

Description: High-strength Drive Axle Shaft Assembly handles maximum torque in demanding cond; This Drive Axle Shaft Assembly is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Description:
Description
TEN Factory - Precision Forged for Quality, Strength and Performance. All TEN Factory axles feature a 10-year replacement warranty! Front axles and two axle rear kits are black oxide coated. TEN Factory is the brand you can trust for the highest-quality engineered axle shafts and replacement kits. Built with the toughest materials, the wear-resistance of forged steel is heat-treated to produce durable axle shafts for your Jeep, car or truck. Buy with confidence knowing that the latest technologies in metallurgy, heat treating and CNC machining have produced an axle you can count on in the most difficult conditions.
Features & benefits
- Direct replacement for cracked or broken axle shafts, restoring full drivetrain integrity and rated load capacity.
- Eliminates axle shaft flex and vibration that leads to premature wheel bearing, seal, and differential gear wear.
- Heat-treated alloy steel shaft handles maximum axle torque without torsional fatigue in loaded commercial truck applications.
- OEM-matched length and diameter maintain correct bearing preload and wheel hub alignment during assembly.

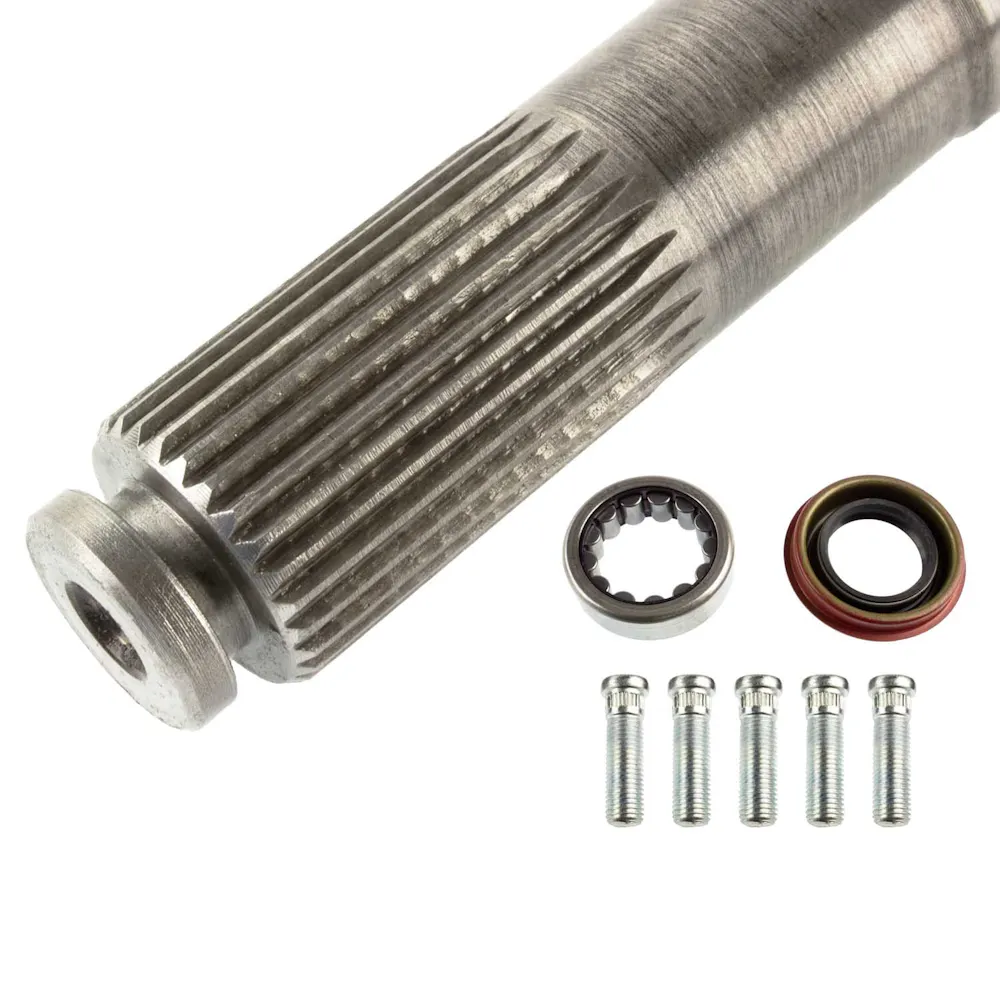

- Precision-machined splines and flange dimensions ensure correct engagement with differential side gears and wheel hubs.
Information
SINGLE-1988-94 S10 2WD 28SP 26.56" LH/RH
Application summary
| Year | Make / model |
|---|---|
| 1988-1994 | Chevrolet S10 |
| 1988-1989 | GMC S15 |
| 1991-1994 | GMC Sonoma |
Specifications
- GTIN
- 00698231941126
- Weight
- 17.9 lb
- Height
- 8.5 in
- Length
- 41.75 in
- Width
- 8.75 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- TEN
- Warehouse brand code
- TEN
- AAIA brand code
- FCHM
Attributes
- 136
- 5 x 4.75
- 396
- High Manganese 1541H
- 704
- 26
- 7801
- 26.5625
- App/Model
- GM 7.625
- Axle Length
- 26.5625
- Axle Material
- 1541 Manganese
- Axle Shaft Spline Quantity
- 26
- Axle Type
- GM 7.5 in.
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Differential Case Design Type
- GM 7.625
- Inboard Spline Quantity
- 28
- Outboard Spline Quantity
- 28
- Position
- Rear
- Shaft Length
- 26.5625
- Shaft Material
- 1541 Manganese
- Side
- Right (Passenger)
- Taxonomy
- Differential LD
- Taxonomy A
- LD Differential
- Taxonomy B
- Axle Shafts
- Taxonomy C
- Axle Kits - Rear
- Taxonomy D
- Right (Passenger)"
- Title
- Axle Shaft Assembly
- Wheel Bolt Pattern Size
- 5 x 4.75
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1988-1994 Chevrolet S10; 1988-1989 GMC S15; 1991-1994 GMC Sonoma

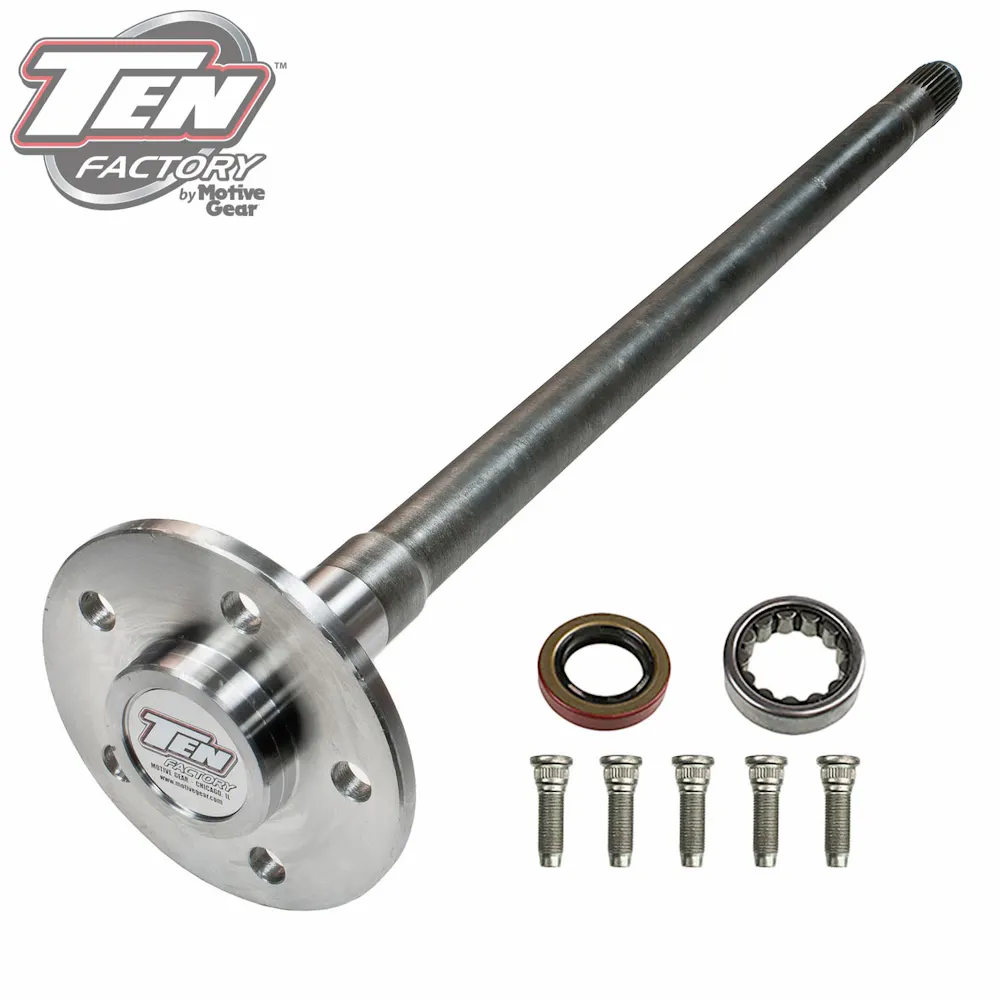

TEN Factory MG27125
