TEN Factory · MG27103
Part #: MG27103
UPC: 698231879399
Log in for inventory
Notify me when this item is in stock.

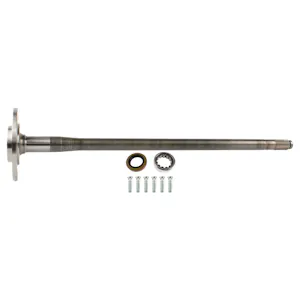

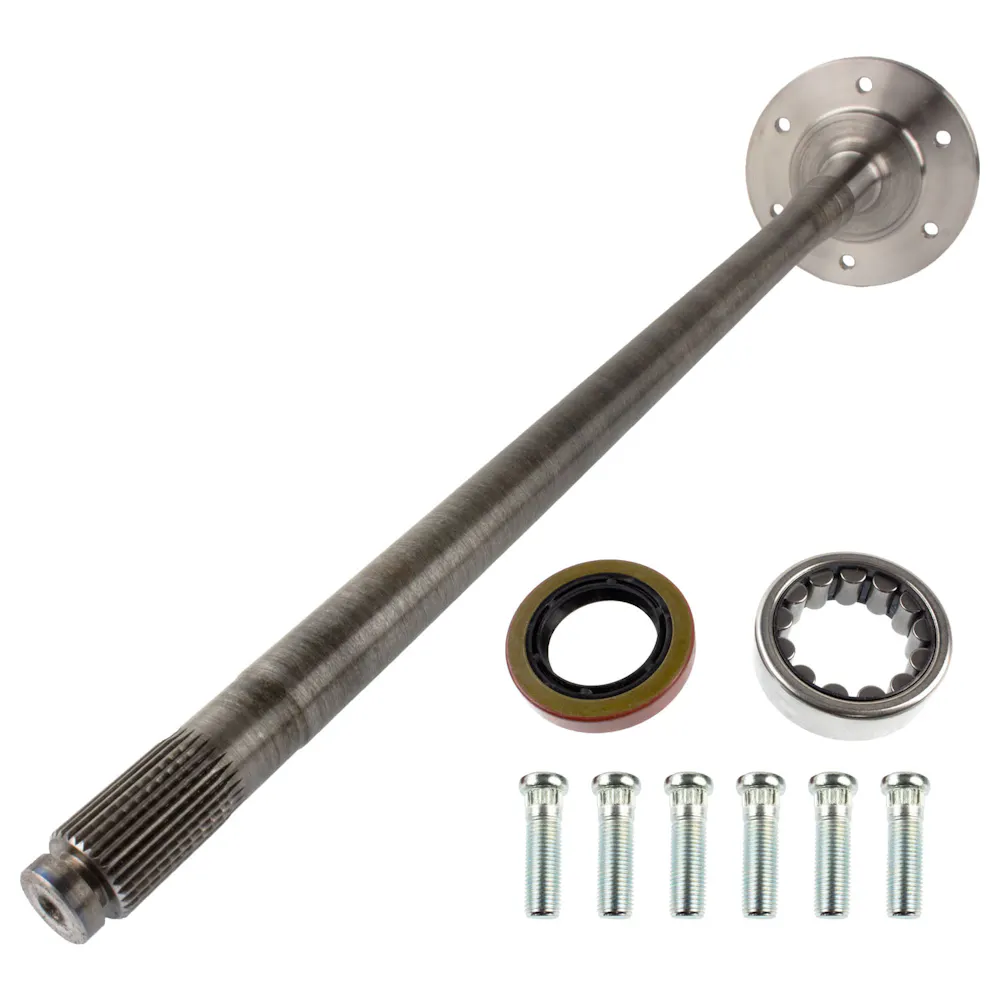

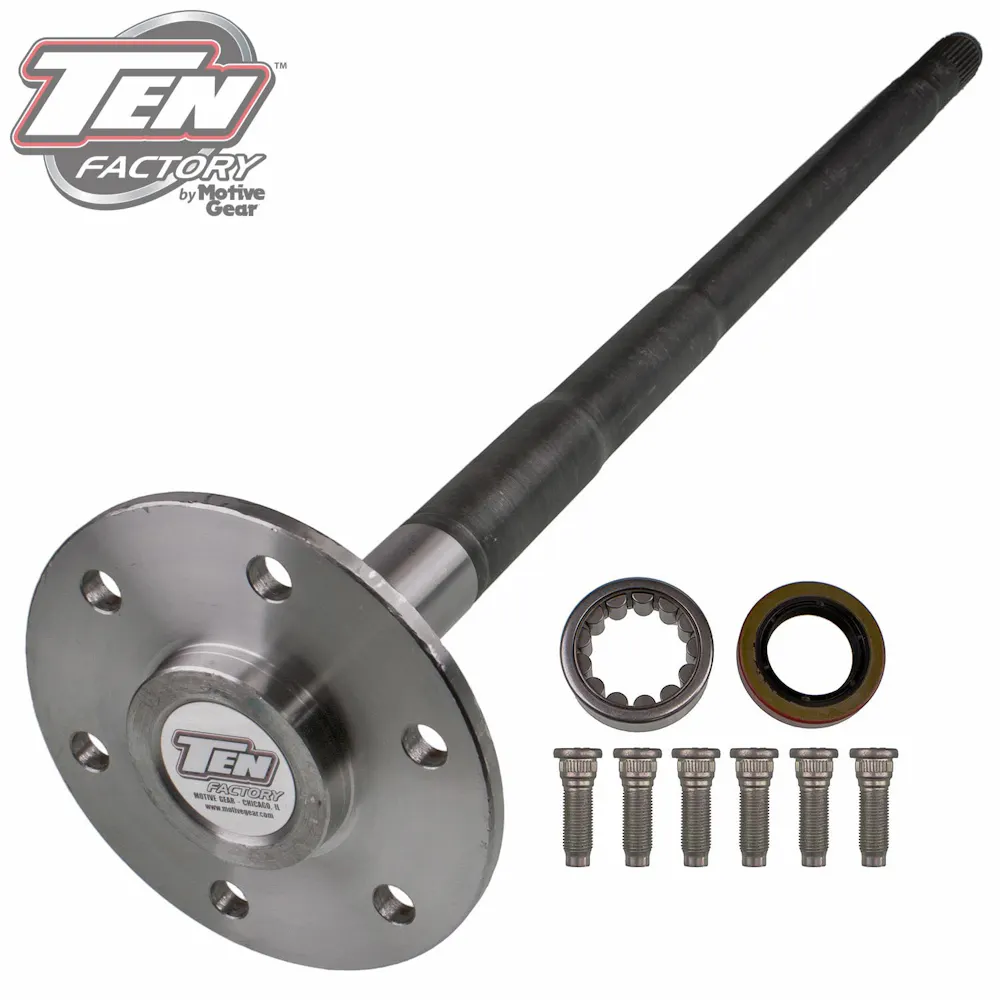

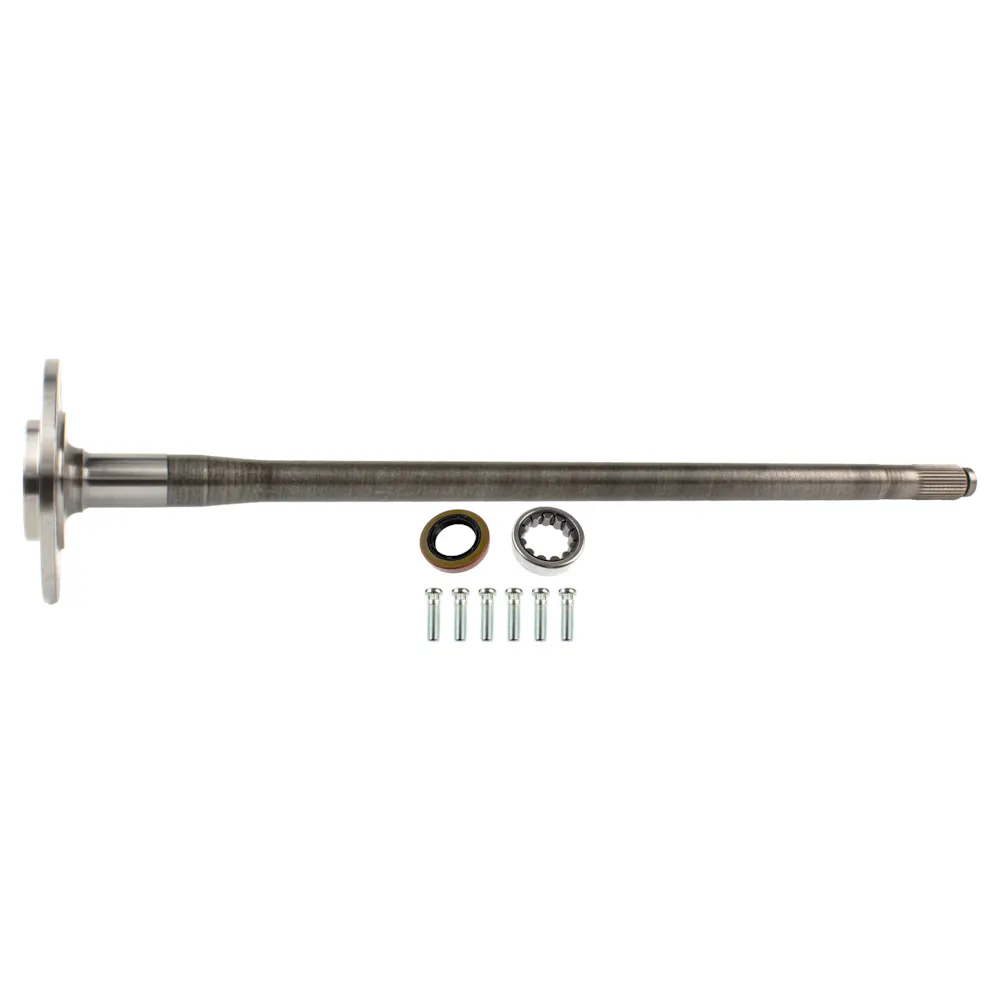

Description: High-strength Drive Axle Shaft Assembly handles maximum torque in demanding cond; This Drive Axle Shaft Assembly is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Description:
Description
TEN Factory - Precision Forged for Quality, Strength and Performance. All TEN Factory axles feature a 10-year replacement warranty! Front axles and two axle rear kits are black oxide coated. TEN Factory is the brand you can trust for the highest-quality engineered axle shafts and replacement kits. Built with the toughest materials, the wear-resistance of forged steel is heat-treated to produce durable axle shafts for your Jeep, car or truck. Buy with confidence knowing that the latest technologies in metallurgy, heat treating and CNC machining have produced an axle you can count on in the most difficult conditions.
Features & benefits
- Direct replacement for cracked or broken axle shafts, restoring full drivetrain integrity and rated load capacity.
- Eliminates axle shaft flex and vibration that leads to premature wheel bearing, seal, and differential gear wear.
- Heat-treated alloy steel shaft handles maximum axle torque without torsional fatigue in loaded commercial truck applications.
- OEM-matched length and diameter maintain correct bearing preload and wheel hub alignment during assembly.

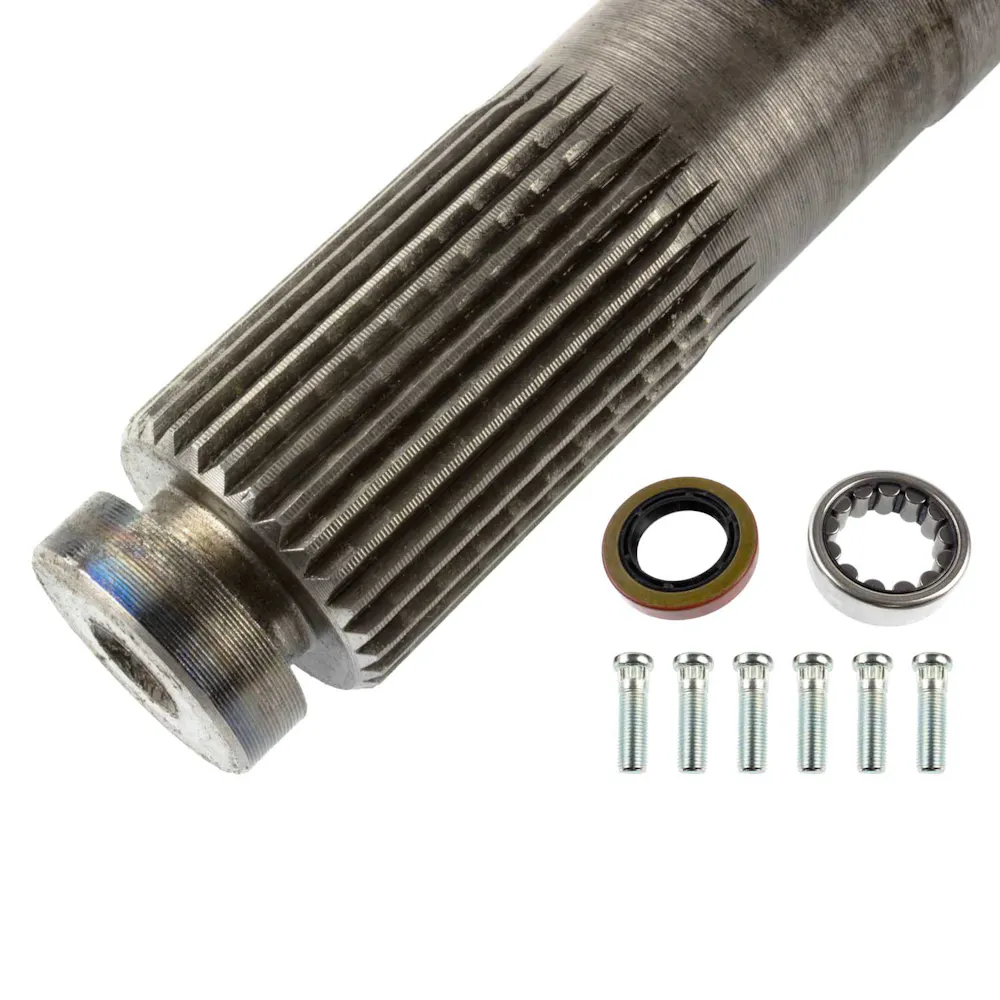

- Precision-machined splines and flange dimensions ensure correct engagement with differential side gears and wheel hubs.
Information
SINGLE-1970-1981 K10 30SPL 31.28" LH/RH
Application summary
| Year | Make / model |
|---|---|
| 1975-1981 | Chevrolet K10 |
| 1970-1974 | Chevrolet K10 Pickup |
| 1970-1981 | Chevrolet K10 Suburban |
| 1975-1981 | Chevrolet K5 Blazer |
| 1975-1981 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1970-1974 | GMC K15/K1500 Pickup |
| 1970-1974 | GMC K15/K1500 Suburban |
| 1979-1981 | GMC K1500 |
| 1979-1981 | GMC K1500 Suburban |
Specifications
- GTIN
- 00698231879399
- Weight
- 18 lb
- Height
- 8.5 in
- Length
- 41.75 in
- Width
- 8.75 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- TEN
- Warehouse brand code
- TEN
- AAIA brand code
- FCHM
Attributes
- 136
- 6 x 5.5
- 396
- High Manganese 1541H
- 704
- 30
- 7801
- 31.28
- App/Model
- GM 8.875 Truck (12-Bolt Truck)
- Axle Length
- 31.28
- Axle Material
- 1541 Manganese
- Axle Shaft Spline Quantity
- 30
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Differential Case Design Type
- GM 8.875 Truck
- Inboard Spline Quantity
- 30
- Outboard Spline Quantity
- 30
- Position
- Rear
- Shaft Length
- 31.28
- Shaft Material
- 1541 Manganese
- Side
- Right (Passenger)
- Taxonomy
- Differential LD
- Taxonomy A
- LD Differential
- Taxonomy B
- Axle Shafts
- Taxonomy C
- Axle Kits - Rear
- Taxonomy D
- Right (Passenger)"
- Title
- Axle Shaft Assembly
- Wheel Bolt Pattern Size
- 6 x 5.5
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1975-1981 Chevrolet K10; 1970-1974 Chevrolet K10 Pickup; 1970-1981 Chevrolet K10 Suburban; 1975-1981 Chevrolet K5 Blazer; 1975-1981 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1970-1974 GMC K15/K1500 Pickup; 1970-1974 GMC K15/K1500 Suburban; 1979-1981 GMC K1500; 1979-1981 GMC K1500 Suburban
