TEN Factory · MG22148
Part #: MG22148
UPC: 698231878842
Log in for inventory
Notify me when this item is in stock.
Description: High-strength Drive Axle Shaft Assembly handles maximum torque in demanding cond; This Drive Axle Shaft Assembly is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Description:
Description
TEN Factory - Precision Forged for Quality, Strength and Performance. All TEN Factory axles feature a 10-year replacement warranty! Front axles and two axle rear kits are black oxide coated. TEN Factory is the brand you can trust for the highest-quality engineered axle shafts and replacement kits. Built with the toughest materials, the wear-resistance of forged steel is heat-treated to produce durable axle shafts for your Jeep, car or truck. Buy with confidence knowing that the latest technologies in metallurgy, heat treating and CNC machining have produced an axle you can count on in the most difficult conditions.
Features & benefits
- Direct replacement for cracked or broken axle shafts, restoring full drivetrain integrity and rated load capacity.
- Eliminates axle shaft flex and vibration that leads to premature wheel bearing, seal, and differential gear wear.
- Heat-treated alloy steel shaft handles maximum axle torque without torsional fatigue in loaded commercial truck applications.
- OEM-matched length and diameter maintain correct bearing preload and wheel hub alignment during assembly.

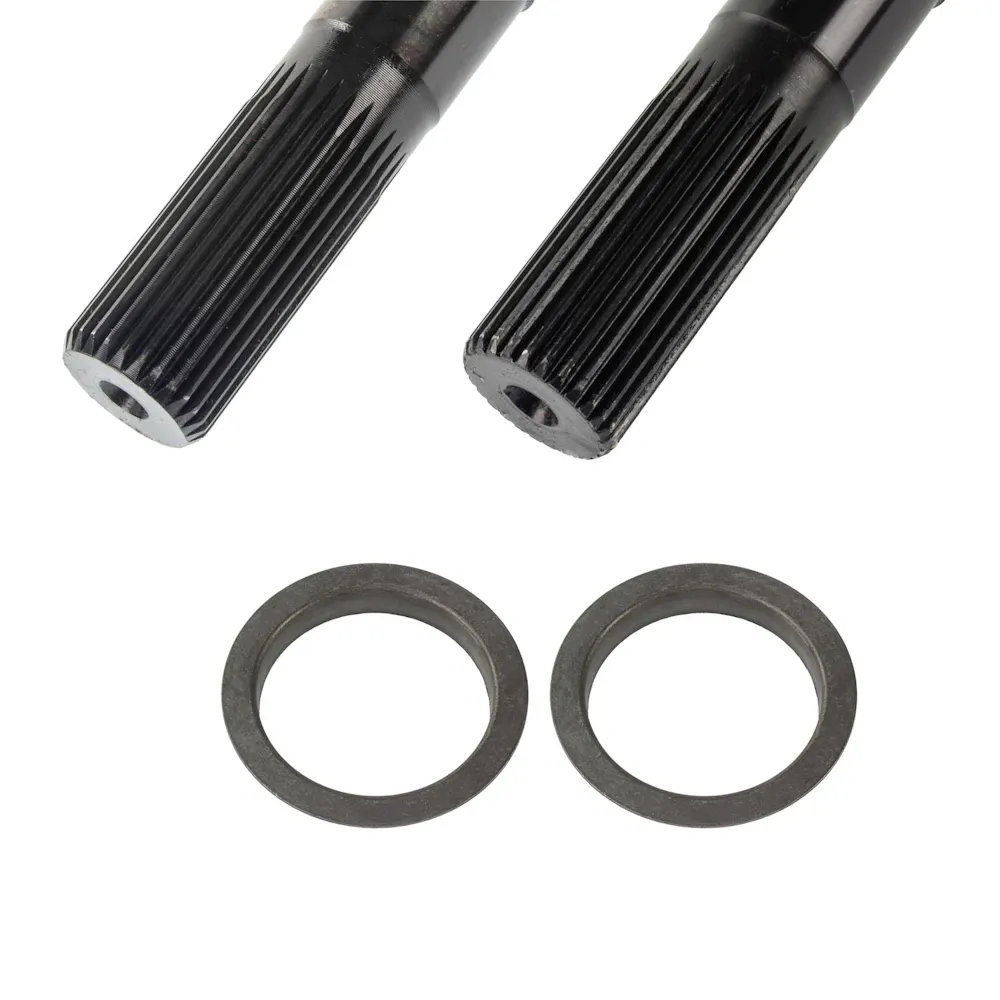

- Precision-machined splines and flange dimensions ensure correct engagement with differential side gears and wheel hubs.
Information

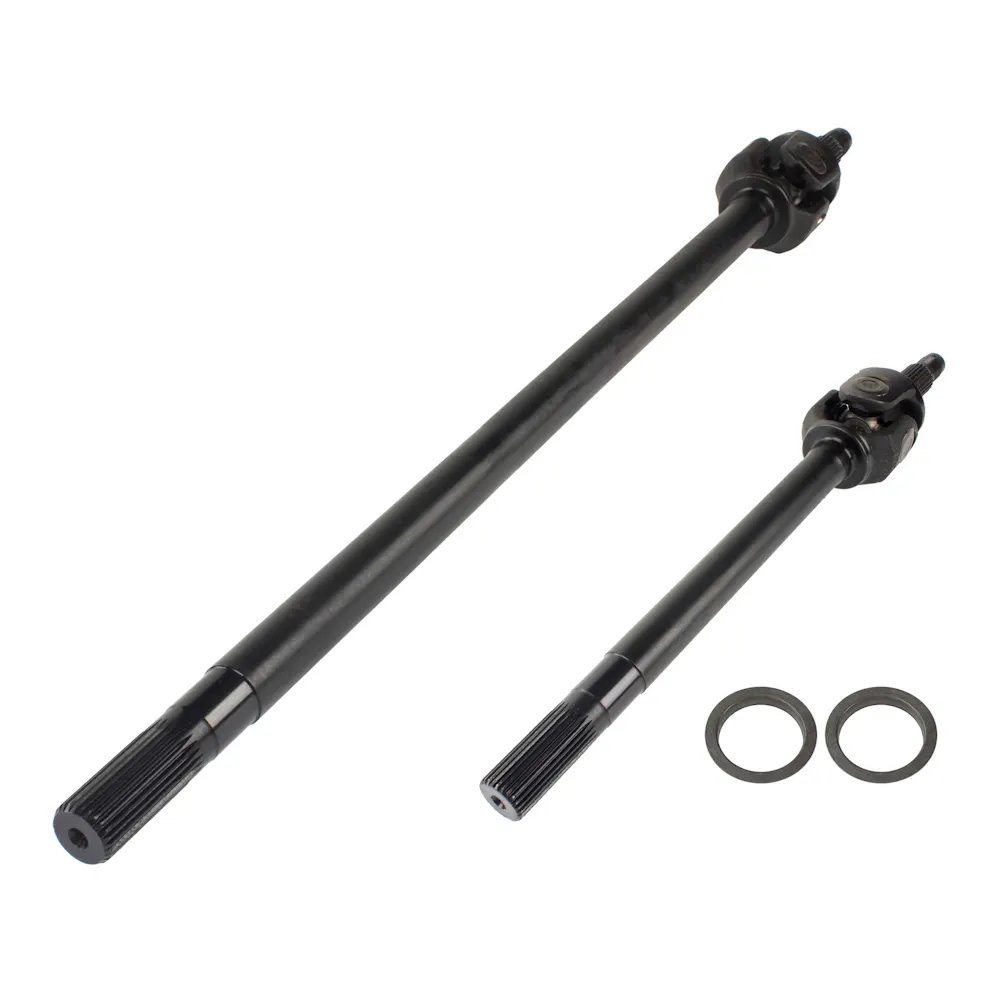

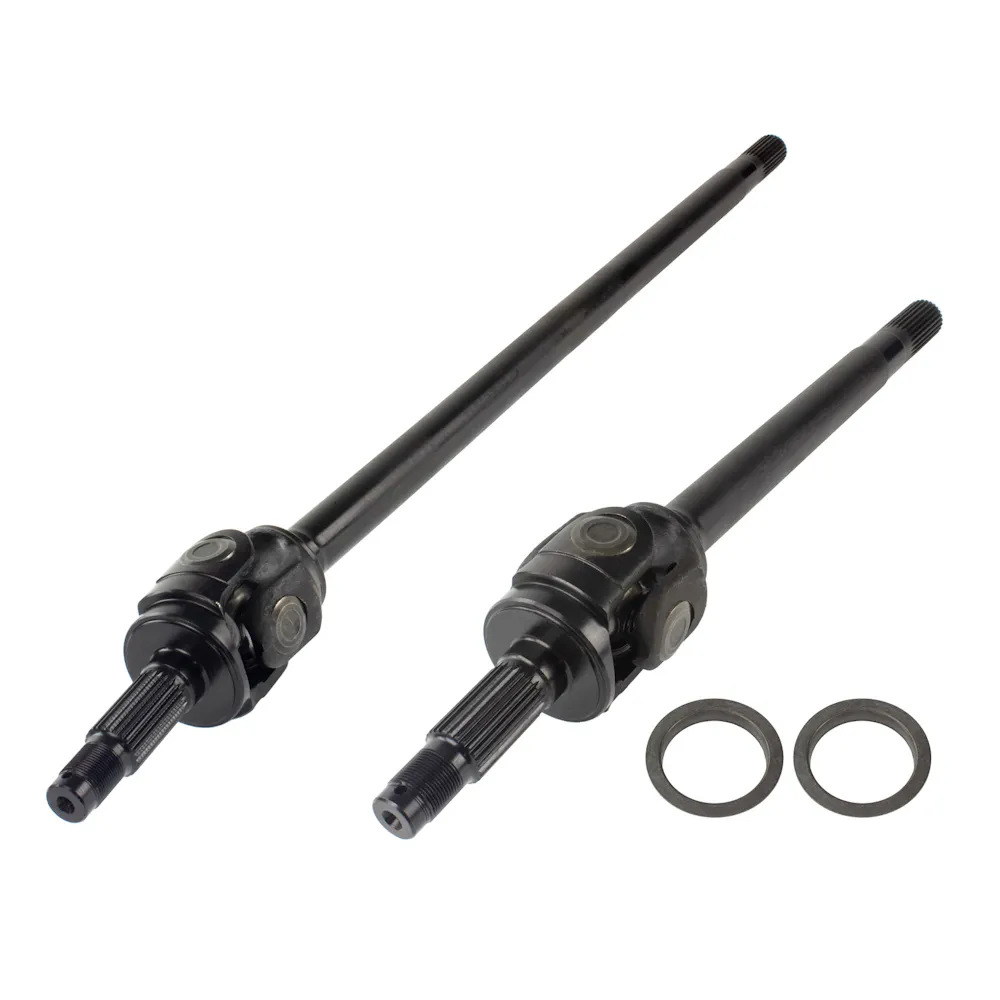

DRIVE AXLE SHAFT ASSEMBLY FOR DANA 30; PERFORMANCE FRONT AXLE KIT; AXLE LENGTH 22.68" LEFT SIDE / 38.51" RIGHT SIDE; 27 SPLINE INNER SHAFTS; USES 5-760X U-JOINT; INCLUDES LEFT & RIGHT ASSEMBLIES; 4340 CHROMOLY; EXCLUDES RUBICON & UNLIMITED RUBICON
Application summary
| Year | Make / model |
|---|---|
| 1984-2001 | Jeep Cherokee |
| 1997-2006 | Jeep TJ |
| 1997-2006 | Jeep Wrangler |
Specifications
- GTIN
- 00698231878842
- Weight
- 32 lb
- Height
- 4.25 in
- Length
- 44.5 in
- Width
- 8.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- TEN
- Warehouse brand code
- TEN
- AAIA brand code
- FCHM
Attributes
- 396
- 4340 Chromoly
- 2872
- Black Oxide
- 7794
- 27
- 7795
- 27
- 7801
- 6.11 Stub
- App/Model
- Dana 30 TJ
- Axle Length
- 16.5 L
- Axle Material
- 4340 Chromoly
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Coated Finish
- Black Oxide
- Differential Case Design Type
- Dana 30 Standard
- Inboard Spline Quantity
- 27
- Inner Axle Length
- 32.40 R
- Inside Spline Quantity
- 27
- Material
- Chromoly
- Outboard Spline Quantity
- 27
- Outer Axle Length
- 6.11
- Outside Spline Quantity
- 27
- Position
- Front
- Shaft Length
- 38.51 R
- Shaft Material
- 4340 Chromoly
- Side
- Left and Right
- Taxonomy
- Differential LD
- Taxonomy A
- LD Differential
- Taxonomy B
- Axle Shafts
- Taxonomy C
- Axle Kits - Front Chromoly
- Taxonomy D
- Left and Right
- Title
- Axle Shaft Assembly
- Universal Joint Series
- 1310 WJ
- Universal Joint Series Number
- 1310 WJ
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1984-2001 Jeep Cherokee; 1997-2006 Jeep TJ; 1997-2006 Jeep Wrangler

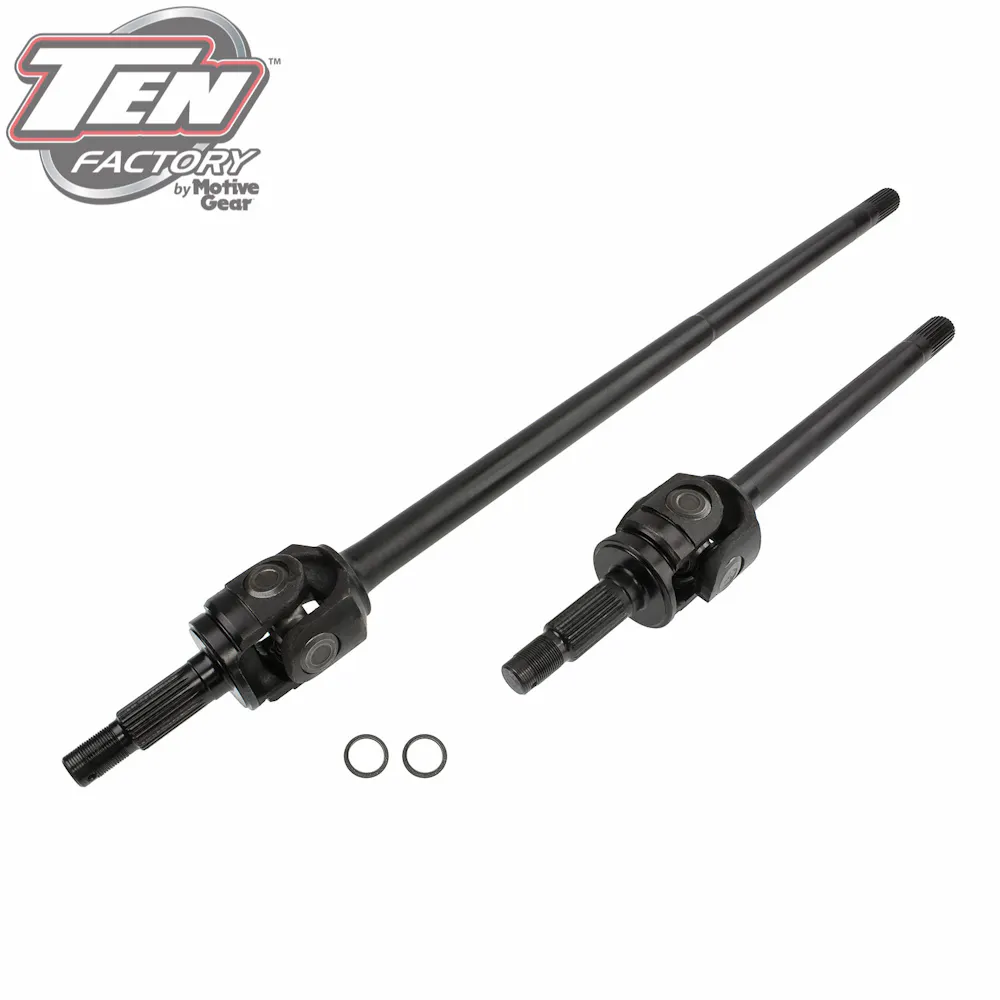

TEN Factory MG22148
